XM3100 Series

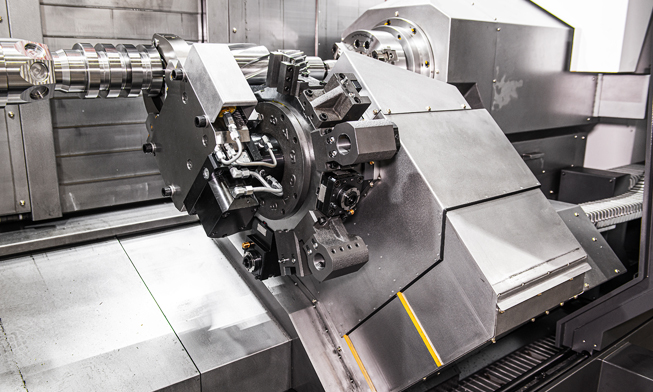

Multitasking Machine XM Series, designed by HYUNDAI WIA with years of expertise and the latest technology, is designed to maximize productivity by utilizing mill head and lower turret.
Features

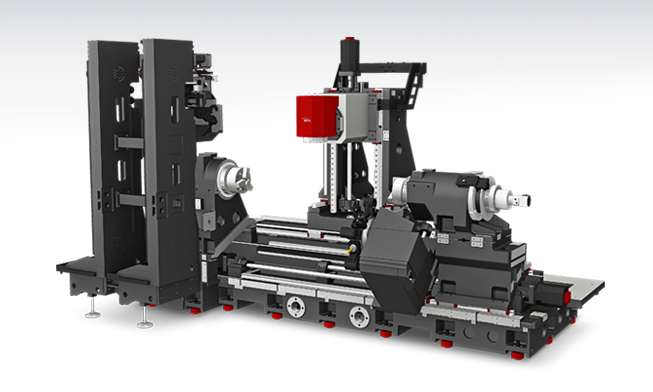

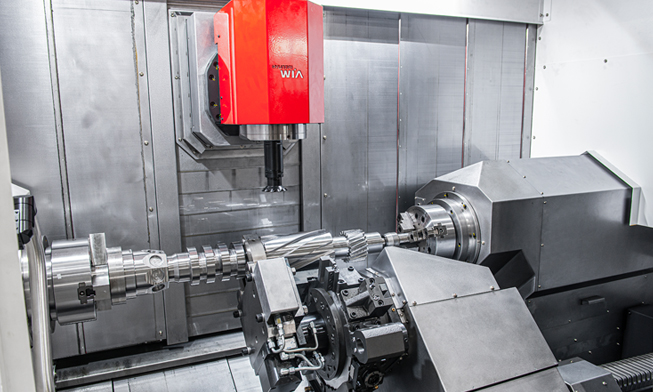

- The adoption of a milling head with a built-in motor B axis (0.0001°) enables the operator to perform turning and milling works in perfect harmony

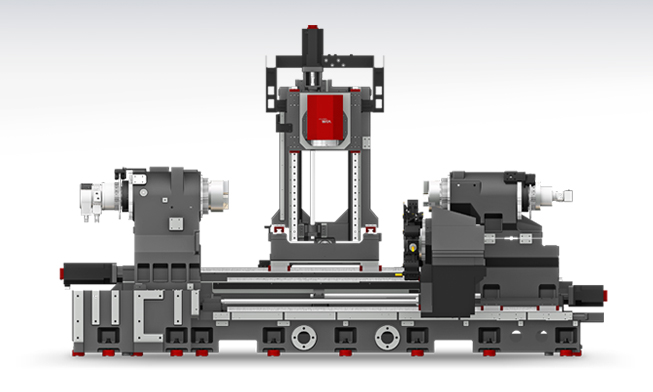

- Expanded machining area by shortening the length of the mill head
- Y-axis travel distance increased: 250 mm (9.8″) → 300 mm (11.8″)
- Application of CAPTO C6 tool for high speed complex machining
- The model features built-in 1st & 2nd spindles with high power and high torque
Specifications
| Specification | XM3100 | XM3100S | XM3100ST |
|---|---|---|---|
| Max. Turning Dia. | 660 mm | 660 mm | 660 mm |
| Max. Turning Length | 1540 mm | 1540 mm | 1540 mm |
| Spindle Bore | 115 mm | 115 mm | 115 mm |
| Spindle Speed | 3000 RPM | 3000 RPM | 3000 RPM |
| Motor (Max/Cont.) | 37/25 kW | 37/25 kW | 37/25 kW |
| Spindle Type | Built-in Motor | Built-in Motor | Built-in Motor |
| No. of Tools | - pcs | - pcs | 12 pcs |
| Machine Size | 5165x3270x2930 mm | 5165x3270x2930 mm | 5165x3270x2930 mm |
| Weight | 17000 kg | 17000 kg | 18000 kg |
