XF8500
The XF series 5-axis vertical machining center in the world-best level, developed by WIA Machine Tools Europe R&D Center. XF series are a perfect blend of machine and technology to realize the ultimate performance in composite machining and mold machining with the highest quality possible resultant of its cutting-edge design features such as the monoblock type bed structure, X/Z axis box-in-box structure, etc.
Features
- High-speed & High-precision 5-Axis Machining Center for medium- and large-sized product
- One-piece column-bed structure through optimal structural analysis – Rigidity has improved by 130%
- High quality machining by design methodology that minimize vibration and thermal displacement during travel
- Linear and rotary scale are equipped as standard for the high quality of machining
- Built-in spindle has applied for high-speed and -accuracy – Spindle displacement sensor applied as a standard

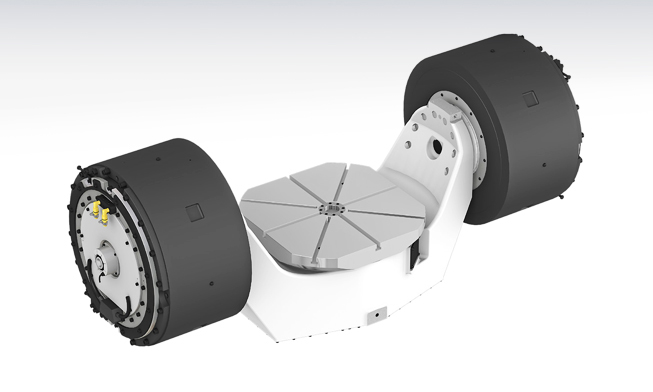

- The DDM rotary table provides simultaneous 5-axis motion which allows for the machining of complex prismatic parts
Specifications
| Specification | XF8500 |
|---|---|
| Table Size (Diameter) | 850 mm |
| Max. Load Capacity | 1000 kg |
| Spindle Taper | HSK-A63 |
| Spindle Speed | 15000 RPM |
| Motor (Max/Cont.) | 31/25 kW |
| X-axis Travel | 850 mm |
| Y-axis Travel | 920 mm |
| Z-axis Travel | 600 mm |
| No. of Tools | 34 pcs |
| Machine Size | 4907x5440x3831 mm |
| Weight | 21000 kg |
