XF6300

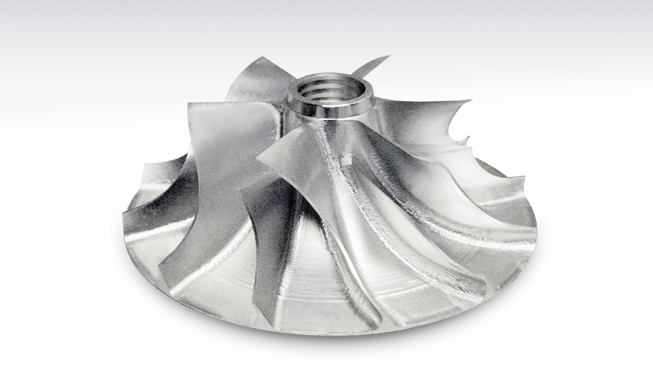

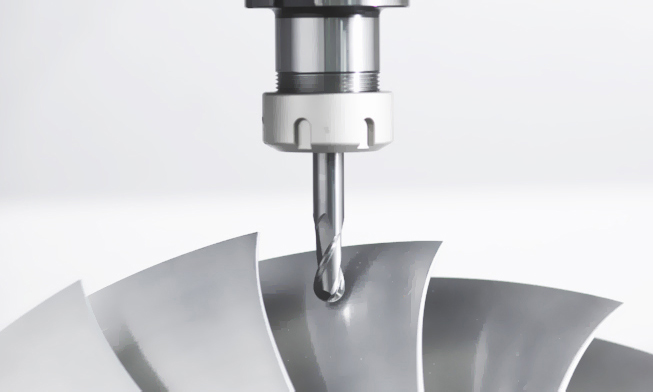

The XF series 5-axis vertical machining center in the world-best level, developed by HYUNDAI WIA Europe R&D Center. XF series are a perfect blend of machine and technology to realize the ultimate performance in composite machining and mold machining with the highest quality possible resultant of its cutting-edge design features such as the monoblock type bed structure, X/Z axis box-in-box structure, etc.
Features
- Increases strength with all-in-one bed & column structure
- Machines high-precision parts with X-axis box-in-box structure

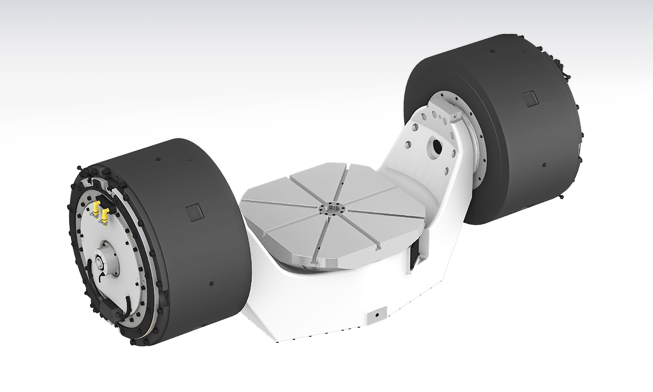

- Built-in DDM table
- Standard 34-tool ring-type ATC (C-C time: 4.5 sec.)
- 19" LCD monitor
Specifications
| Specification | XF6300 |
|---|---|
| Table Size (Diameter) | 630 mm |
| Max. Load Capacity | 600 kg |
| Spindle Taper | HSK-A63 |
| Spindle Speed | 15000 RPM |
| Motor (Max/Cont.) | 31/25 kW |
| X-axis Travel | 650 mm |
| Y-axis Travel | 600 mm |
| Z-axis Travel | 500 mm |
| No. of Tools | 34 pcs |
| Machine Size | 5032x4380x3044 mm |
| Weight | 11000 kg |
