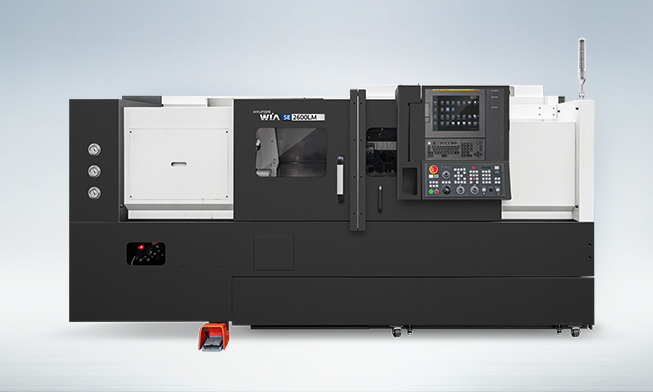

SE2600 Series
The CNC Turning Center SE2600 Series, designed with HYUNDAI WIA's engineering expertise to maximize productivity by enhancing rigidity and accuracy of machining.
Features

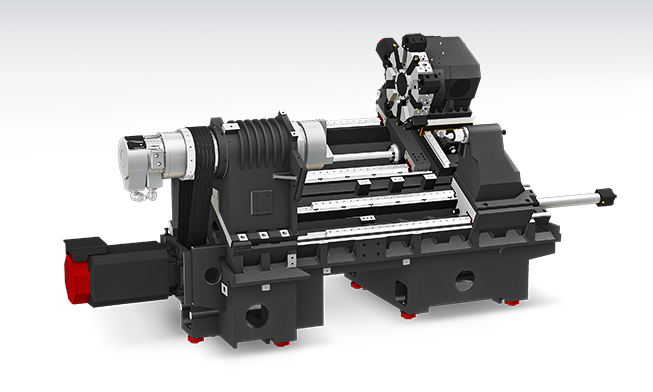

- 30° slanted one-piece bed structure with high rigidity

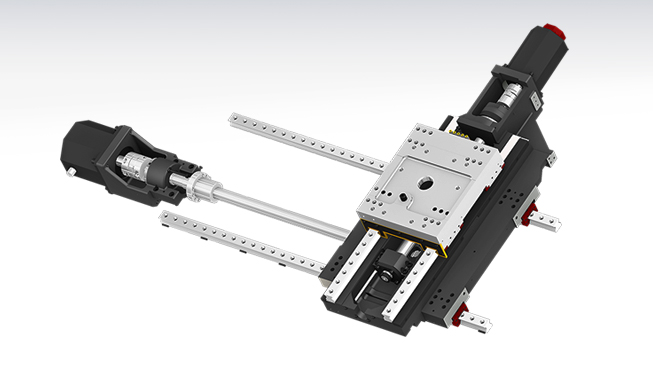

- Applying high-rigidity roller type LM guideway on all axis

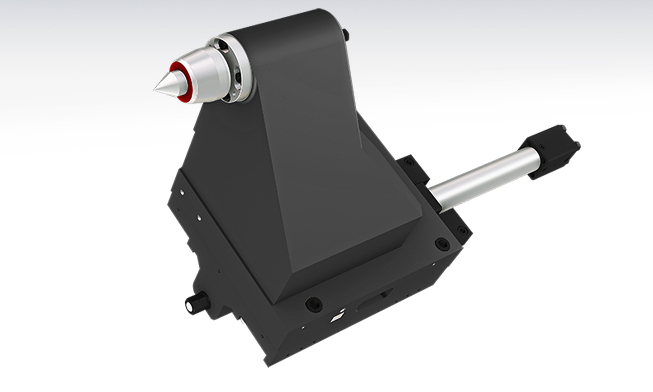

- Hydraulic NC tailstock with position control (SE2600/M/Y)
- Multi-tasking operation with wedge type Y-axis structure (SE2600Y/SY/LY/LSY)
- Improved user convenience by applying the latest controller of FANUC
Specifications
| Specification | SE2600 | SE2600L | SE2600M | SE2600LM |
|---|---|---|---|---|
| Max. Turning Dia. | 460 mm | 460 mm | 380 mm | 380 mm |
| Max. Turning Length | 671 mm | 1091 mm | 630 mm | 1050 mm |
| Spindle Bore | 91 mm | 91 mm | 91 mm | 91 mm |
| Spindle Speed | 3500 RPM | 3500 RPM | 3500 RPM | 3500 RPM |
| Motor (Max/Cont.) | 18.5/11 kW | 18.5/11 kW | 18.5/11 kW | 18.5/11 kW |
| Spindle Type | Belt | Belt | Belt | Belt |

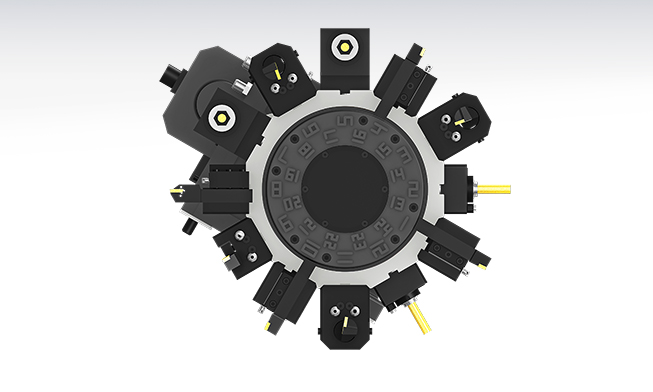

| No. of Tools | 10 pcs | 10 pcs | 12 pcs | 12 pcs |
| Machine Size | 3255x1900x1730 mm | 3715x2000x1730 mm | 3255x1900x1730 mm | 3715x2000x1730 mm |
| Weight | 4200 kg | 5000 kg | 4300 kg | 5100 kg |
