SE2200YA Series
The CNC Turning Center SE-Y Series, designed with WIA Machine Tools's engineering expertise to maximize productivity by enhancing rigidity and accuracy of machining.
Features
- 30° slanted one-piece bed structure with high rigidity
- Stabilized unit structure to minimize thermal displacement
- Integrated processing through synchronized control of Main/Sub spindle

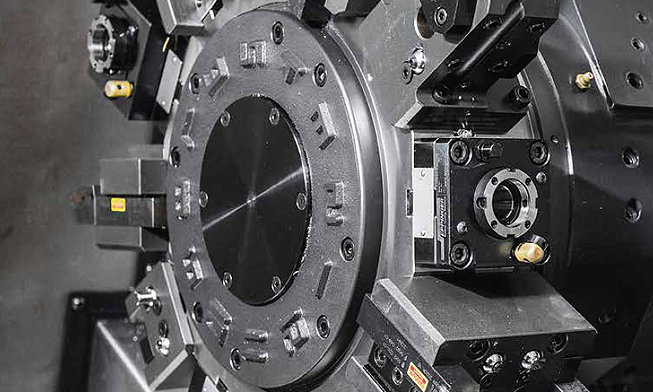

- Multi-tasking operation with wedge type Y-axis BMT45 turret
- Excellent rapid traverse rate (X/Y/Z): 30/10/36 m/min (1,181/394/1,417 ipm)
- Ergonomic design for convenient access to chuck and tool
Specifications
| Specification | SE2200YA | SE2200LYA | SE2200LSYA |
|---|---|---|---|
| Max. Turning Dia. | 300 mm | 300 mm | 300 mm |
| Max. Turning Length | 309 mm | 529 mm | 529 mm |
| Spindle Bore | 60 mm | 60 mm | 60 mm |
| Spindle Speed | 6000 RPM | 6000 RPM | 6000 RPM |
| Motor (Max/Cont.) | 15/11 kW | 15/11 kW | 15/11 kW |
| Spindle Type | Belt | Belt | Belt |
| No. of Tools | 12 pcs | 12 pcs | 12 pcs |
| Machine Size | 2210x1730x1920 mm | 2960x1730x1920 mm | 2960x1730x1920 mm |
| Weight | 3700 kg | 4100 kg | 4200 kg |
