SE2200Y Series

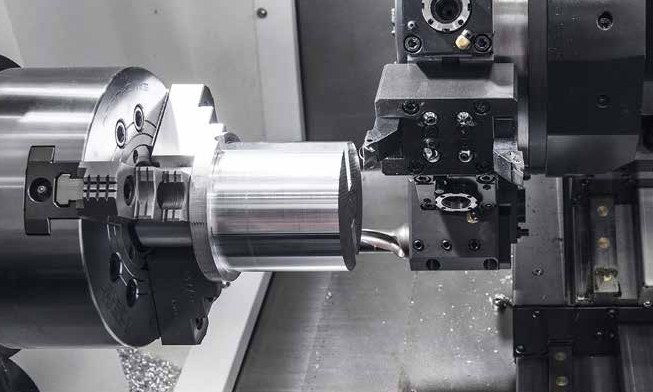

The CNC Turning Center SE-Y Series, designed with WIA Machine Tools's engineering expertise to maximize productivity by enhancing rigidity and accuracy of machining.
Features
- 30° slanted one-piece bed structure with high rigidity
- Stabilized unit structure to minimize thermal displacement
- Integrated processing through synchronized control of Main/Sub spindle

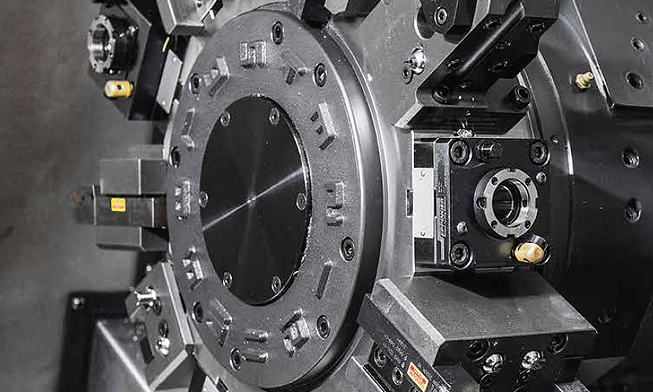

- Multi-tasking operation with wedge type Y-axis BMT45 turret
- Excellent rapid traverse rate (X/Y/Z): 30/10/36 m/min (1,181/394/1,417 ipm)

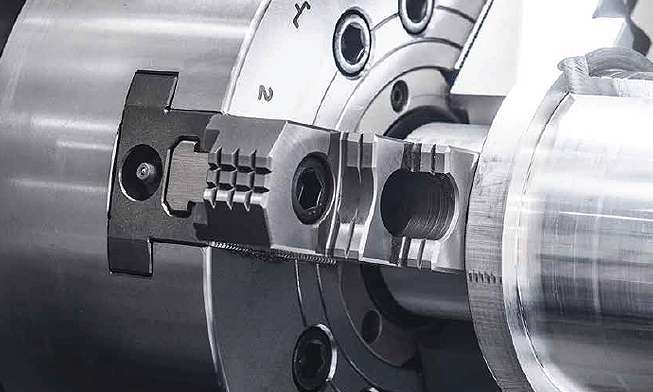

- Ergonomic design for convenient access to chuck and tool
Specifications
| Specification | SE2200Y | SE2200LY | SE2200LSY |
|---|---|---|---|
| Max. Turning Dia. | 300 mm | 300 mm | 300 mm |
| Max. Turning Length | 288 mm | 508 mm | 508 mm |
| Spindle Bore | 75 mm | 75 mm | 75 mm |
| Spindle Speed | 4500 RPM | 4500 RPM | 4500 RPM |
| Motor (Max/Cont.) | 15/11 kW | 15/11 kW | 15/11 kW |
| Spindle Type | Belt | Belt | Belt |
| No. of Tools | 12 pcs | 12 pcs | 12 pcs |
| Machine Size | 2280x1730x1920 mm | 2960x1730x1920 mm | 2960x1730x1920 mm |
| Weight | 3800 kg | 4200 kg | 4300 kg |
