SE2200LC Series
The CNC Turning Center SE Series, designed with WIA Machine Tools's engineering expertise to maximize productivity by enhancing rigidity and accuracy of machining.
Features

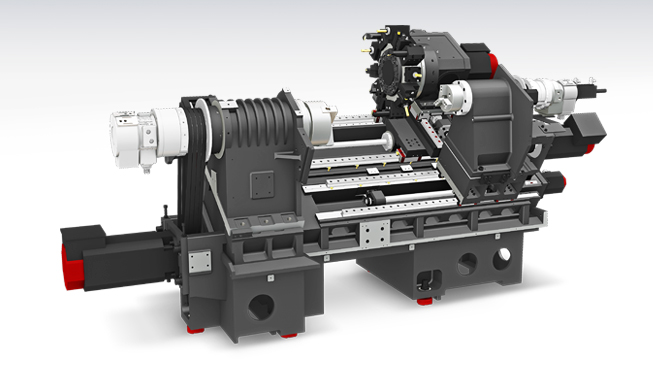

- 30° slanted one-piece bed structure with high rigidity
- Ensured high-rigidity applying Roller guideway on all axis (X/Z-axis: 30/36m/min)

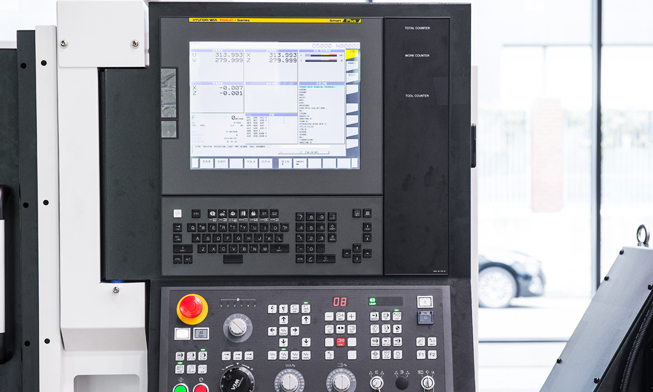

- Improved user convenience by applying the latest controller of FANUC

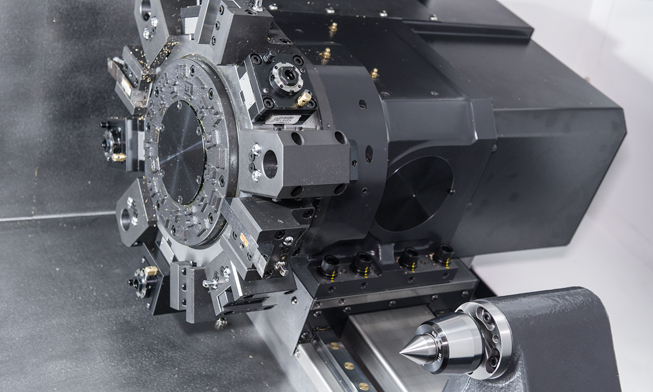

- Prepared user-oriented lineup including long-bed, mill turret and sub-spindle

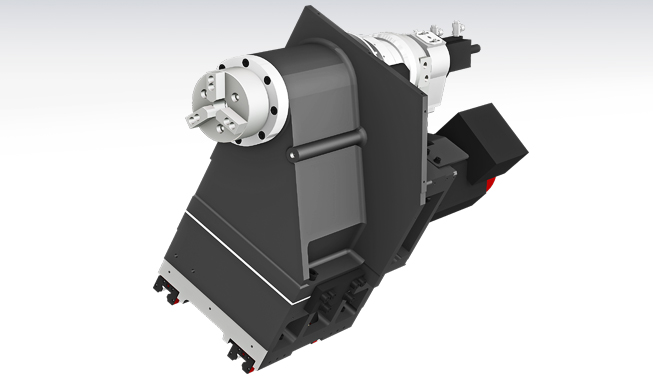

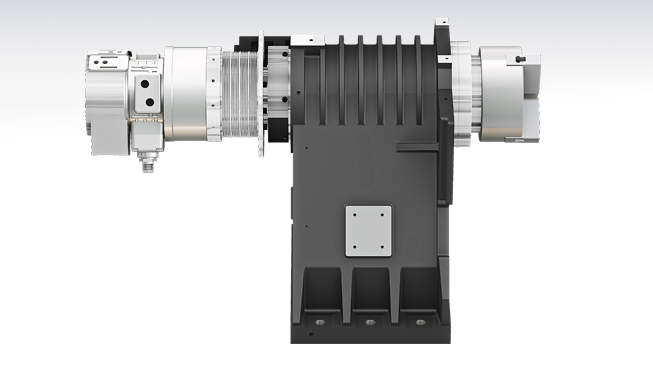

- Compact structure with internal-motor design (for standard-type bed)

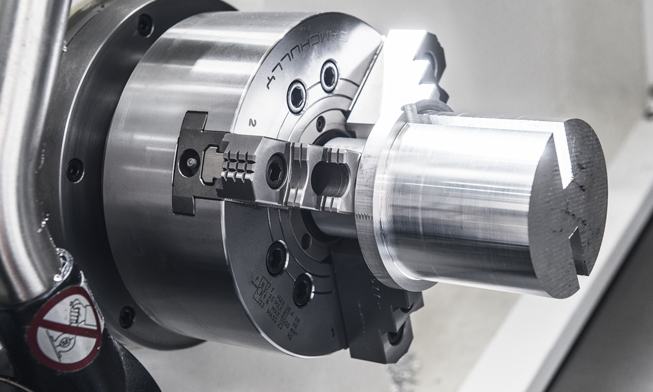

- Ergonomic design for convenient access to chuck and tool
Specifications
| Specification | SE2200LC | SE2200LMC | SE2200LMSC |
|---|---|---|---|
| Max. Turning Dia. | 350 mm | 300 mm | 300 mm |
| Max. Turning Length | 549 mm | 499 mm | 499 mm |
| Spindle Bore | 91 mm | 91 mm | 91 mm |
| Spindle Speed | 3500 RPM | 3500 RPM | 3500 RPM |
| Motor (Max/Cont.) | 18.5/11 kW | 18.5/11 kW | 18.5/11 kW |
| Spindle Type | Belt | Belt | Belt |

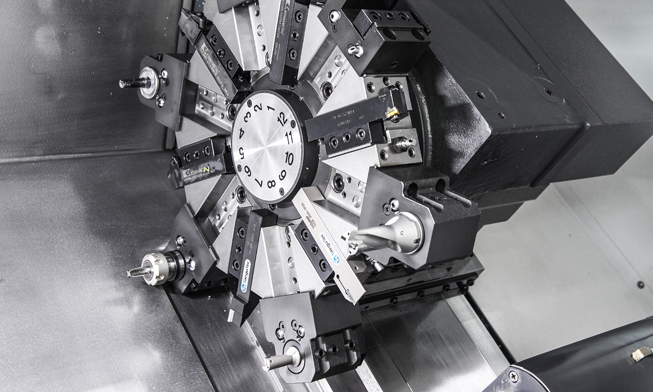

| No. of Tools | 12 pcs | 12 pcs | 12 pcs |
| Machine Size | 2970x1610x1700 mm | 2970x1610x1700 mm | 2970x1610x1700 mm |
| Weight | 3700 kg | 3750 kg | 3850 kg |
