SE2200A Series
The CNC Turning Center SE Series, designed with WIA Machine Tools's engineering expertise to maximize productivity by enhancing rigidity and accuracy of machining.
.png)
.png)
Features

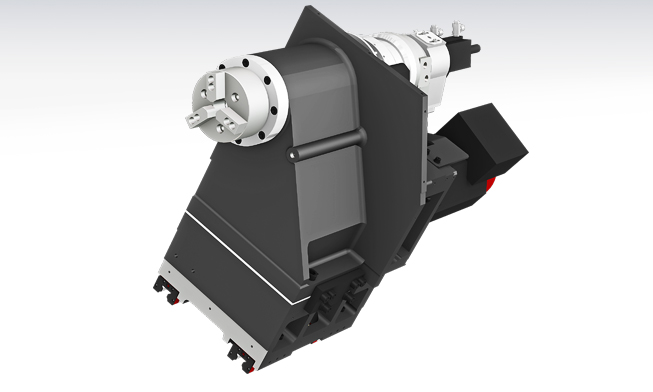

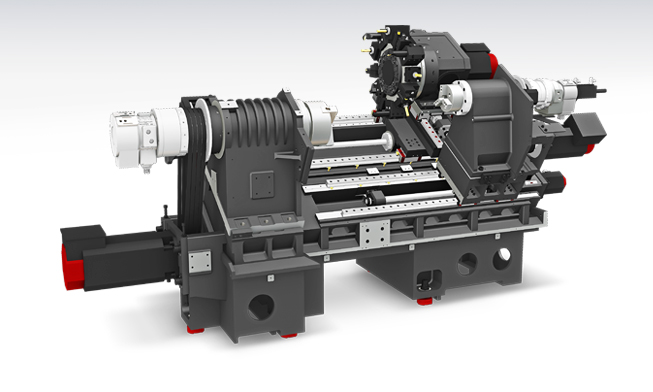

- 30° slanted one-piece bed structure with high rigidity
- Ensured high-rigidity applying Roller guideway on all axis (X/Z-axis: 30/36m/min)

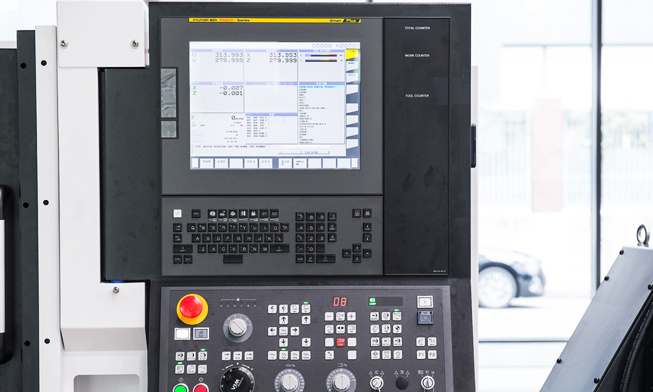

- Improved user convenience by applying the latest controller of FANUC
- Prepared user-oriented lineup including long-bed, mill turret and sub-spindle

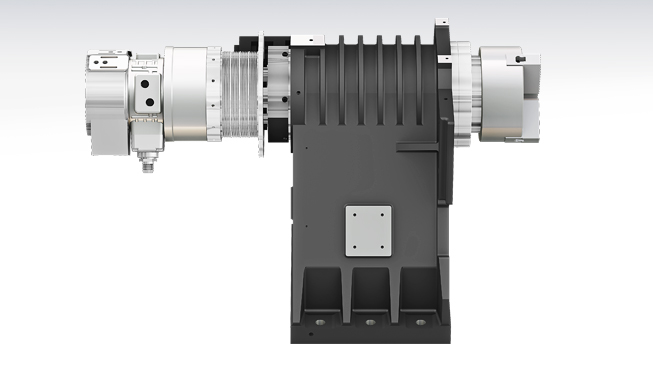

- Compact structure with internal-motor design (for standard-type bed)

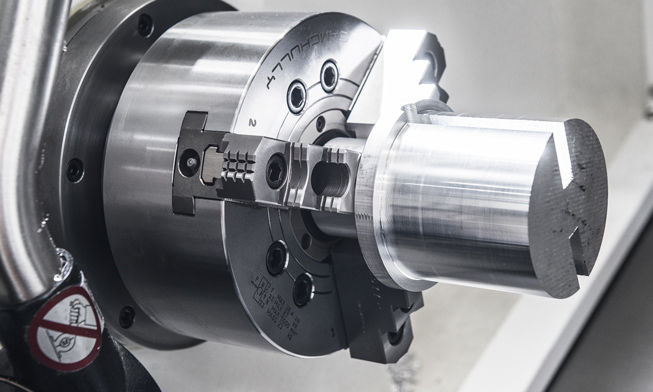

- Ergonomic design for convenient access to chuck and tool
Specifications
| Specification | SE2200A | SE2200LA | SE2200MA | SE2200LMA | SE2200LMSA |
|---|---|---|---|---|---|
| Max. Turning Dia. | 350 mm | 350 mm | 300 mm | 300 mm | 300 mm |
| Max. Turning Length | 340 mm | 560 mm | 309 mm | 529 mm | 529 mm |
| Spindle Bore | 60 mm | 60 mm | 60 mm | 60 mm | 60 mm |
| Spindle Speed | 6000 RPM | 6000 RPM | 6000 RPM | 6000 RPM | 6000 RPM |
| Motor (Max/Cont.) | 15/11 kW | 15/11 kW | 15/11 kW | 15/11 kW | 15/11 kW |
| Spindle Type | Belt | Belt | Belt | Belt | Belt |

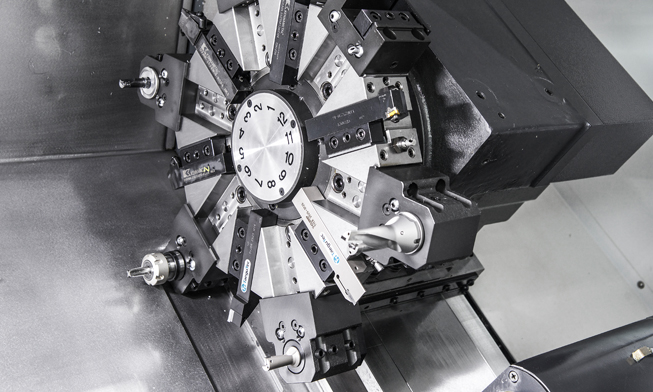

| No. of Tools | 12 pcs | 12 pcs | 12 pcs | 12 pcs | 12 pcs |
| Machine Size | 2120x1610x1700 mm | 2970x1610x1700 mm | 2150x1610x1700 mm | 2970x1610x1700 mm | 2970x1610x1700 mm |
| Weight | 3100 kg | 3500 kg | 3150 kg | 3550 kg | 3650 kg |
