SE2200 Series
The CNC Turning Center SE Series, designed with HYUNDAI WIA's engineering expertise to maximize productivity by enhancing rigidity and accuracy of machining.
Features

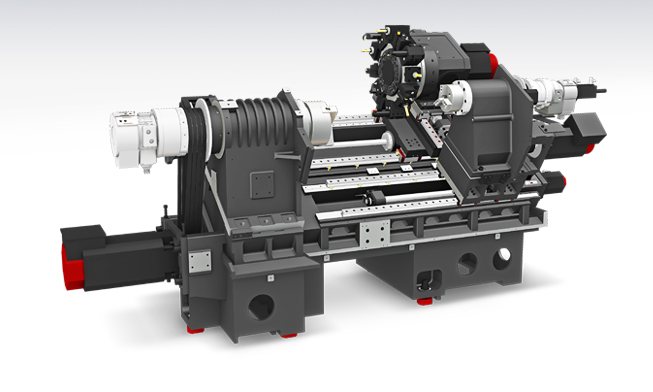

- 30° slanted one-piece bed structure with high rigidity
- Ensured high-rigidity applying Roller guideway on all axis (X/Z-axis: 30/36m/min)

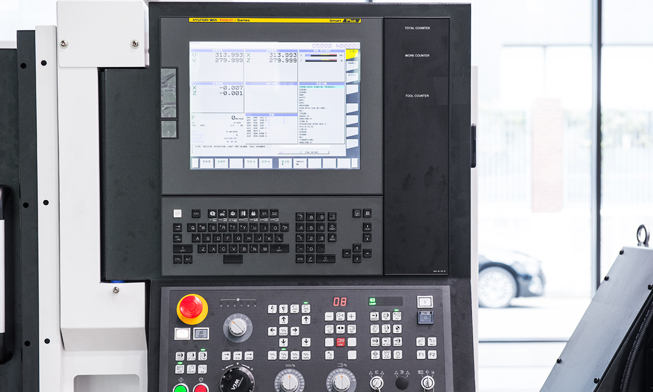

- Improved user convenience by applying the latest controller of FANUC
- Prepared user-oriented lineup including long-bed, mill turret and sub-spindle

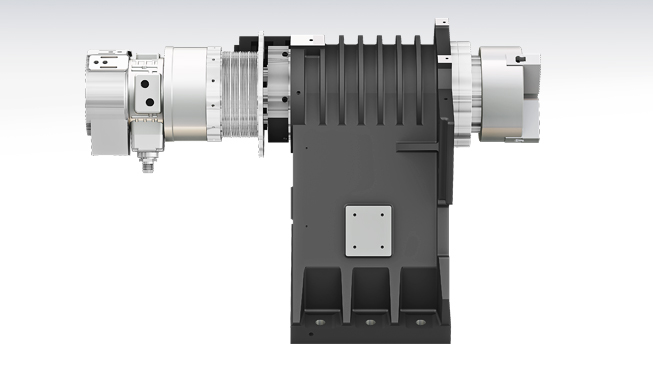

- Compact structure with internal-motor design (for standard-type bed)

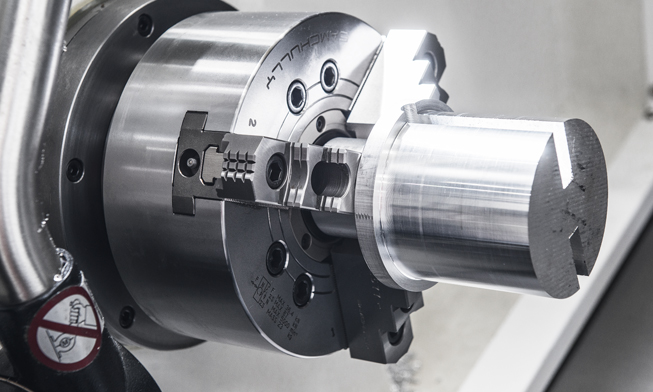

- Ergonomic design for convenient access to chuck and tool
Specifications
| Specification | SE2200 | SE2200L | SE2200M | SE2200LM | SE2200LMS |
|---|---|---|---|---|---|
| Max. Turning Dia. | 350 mm | 350 mm | 300 mm | 300 mm | 300 mm |
| Max. Turning Length | 307 mm | 558 mm | 288 mm | 508 mm | 508 mm |
| Spindle Bore | 75 mm | 75 mm | 75 mm | 75 mm | 75 mm |
| Spindle Speed | 4500 RPM | 4500 RPM | 4500 RPM | 4500 RPM | 4500 RPM |
| Motor (Max/Cont.) | 15/11 kW | 15/11 kW | 15/11 kW | 15/11 kW | 15/11 kW |
| Spindle Type | Belt | Belt | Belt | Belt | Belt |
| No. of Tools | 12 pcs | 12 pcs | 12 pcs | 12 pcs | 12 pcs |
| Machine Size | 2190x1610x1700 mm | 2970x1610x1700 mm | 2220x1610x1700 mm | 2970x1610x1700 mm | 2970x1610x1700 mm |
| Weight | 3200 kg | 3600 kg | 3250 kg | 3650 kg | 3750 kg |
