LV8500 Series

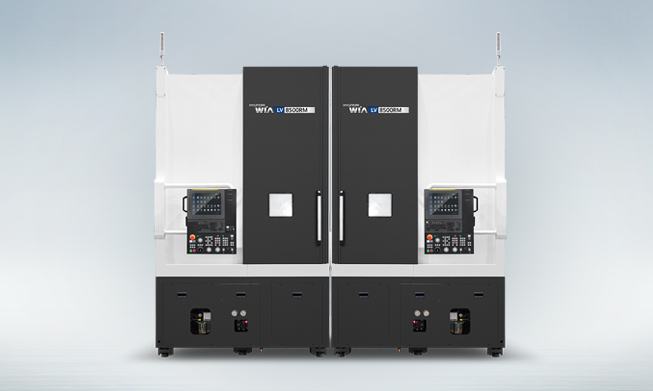

Flexible, Productive Automation System Vertical Turning Center. The CNC Turning Center LV4500/8500 Series, designed by WIA Machine Tools with years of expertise and the latest technology, is designed to maximize productivity by high speed and accurate performance.
Features
- “Right” and “Left” structure for practical automation construction

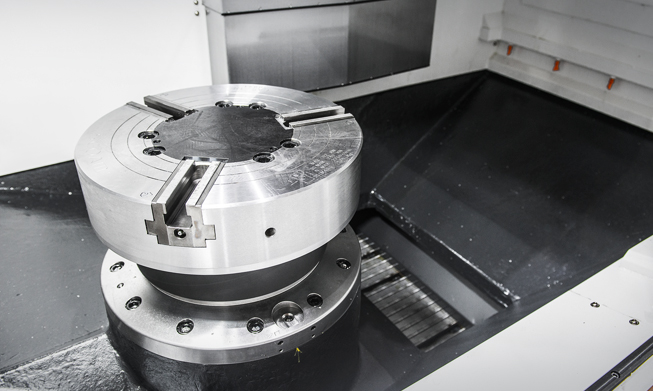

- Stable spindle structure with excellent heavy duty cutting ability
- 2 step chuck pressure mechanism adopted to minimize workpiece deformation (Opt.)

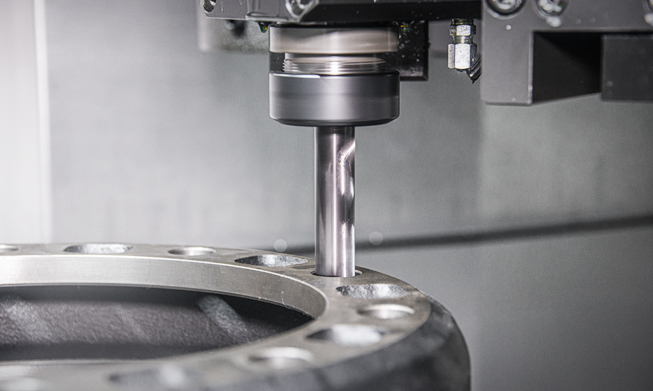

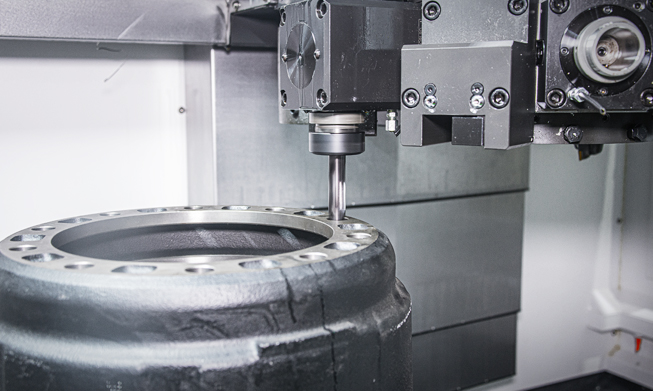

- High rigidity BMT turret
- Designed for optimal chip disposal
Specifications
| Specification | LV8500R/L | LV8500RM/LM |
|---|---|---|
| Max. Turning Dia. | 850 mm | 850 mm |
| Max. Turning Length | 800 mm | 800 mm |
| Spindle Bore | 457 mm | 457 mm |
| Spindle Speed | 2000 RPM | 2000 RPM |
| Motor (Max/Cont.) | 37/30/22 kW | 37/30/22 kW |
| Spindle Type | Belt | Belt |
| No. of Tools | 12 pcs | 12 pcs |
| Machine Size | 2000x3540x3845 mm | 2000x3540x3845 mm |
| Weight | 9500 kg | 9500 kg |
