LV500 Series
Flexible, Productive Automation System Vertical Turning Center. The CNC Turning Center LV500/1100 Series, designed by WIA Machine Tools with years of expertise and the latest technology, is designed to maximize productivity by high speed and accurate performance.
Features

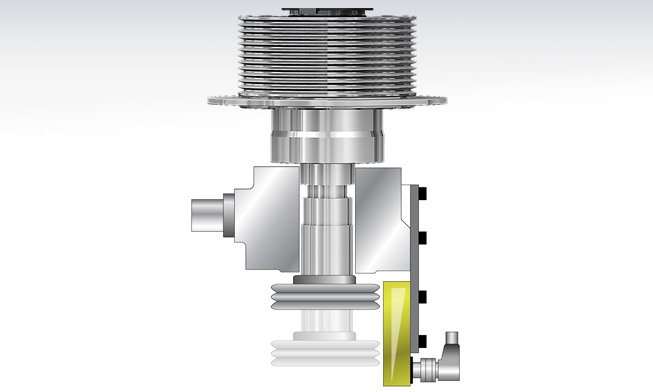

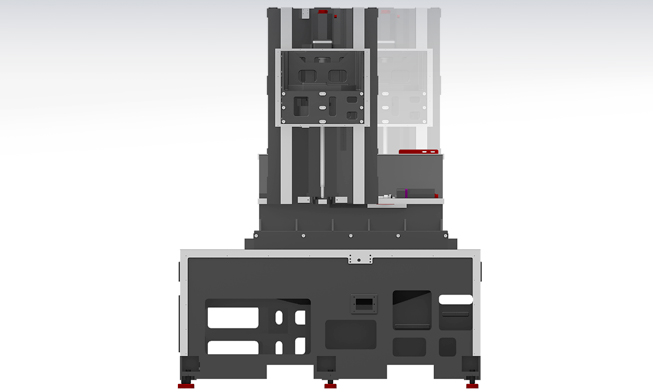

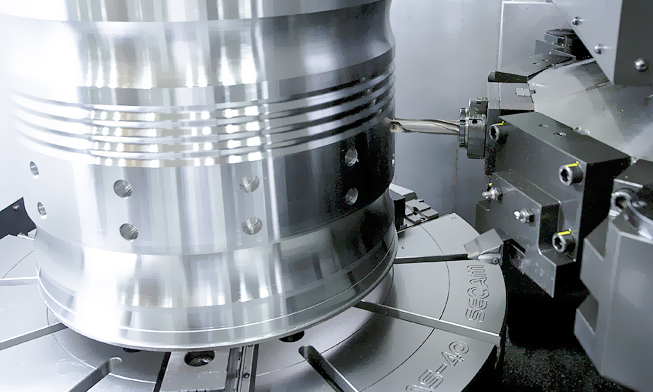

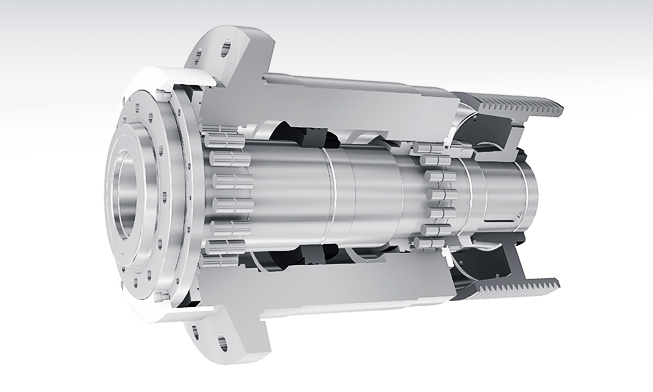

- Stable spindle structure with excellent heavy duty cutting ability
- 2 step chuck pressure mechanism adopted to minimize workpiece deformation

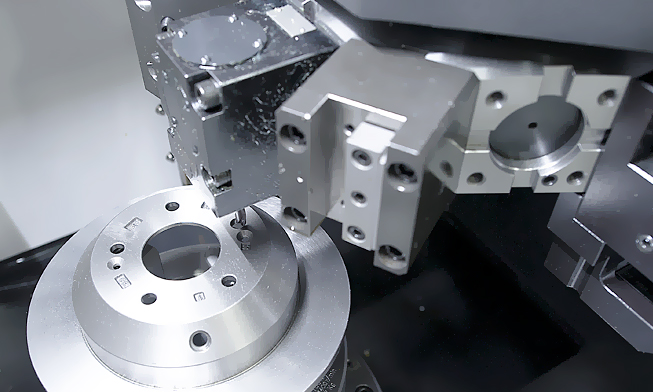

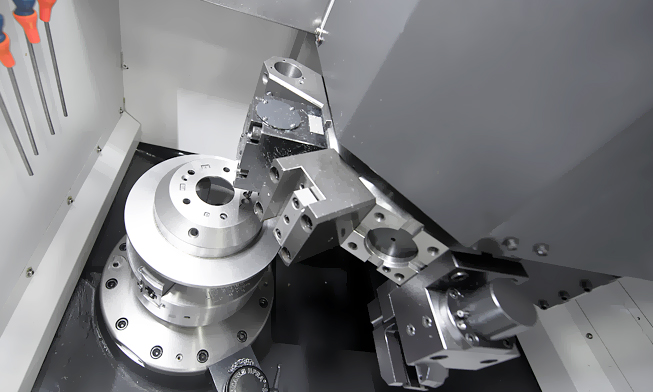

- Various peripheral equipment can be used for optimized machining
- Designed for optimal chip disposal

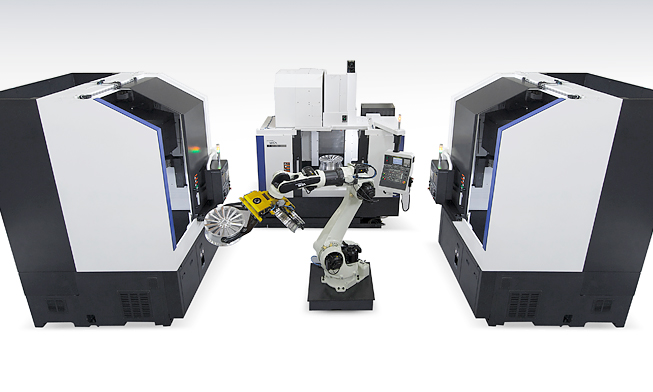

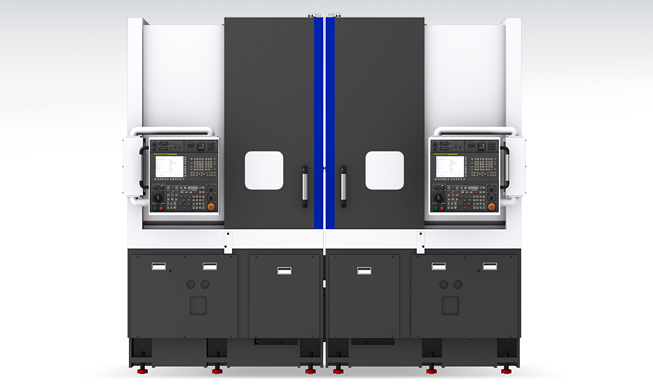

- “Right” and “Left” structure for practical automation construction (LV500 Series)
Specifications
| Specification | LV500R/L | LV500RM/LM |
|---|---|---|
| Max. Turning Dia. | 550 mm | 550 mm |
| Max. Turning Length | 600 mm | 600 mm |
| Spindle Bore | 100 mm | 100 mm |
| Spindle Speed | 2000 RPM | 2000 RPM |
| Motor (Max/Cont.) | 26/18.5 kW | 26/18.5 kW |
| Spindle Type | Belt | Belt |

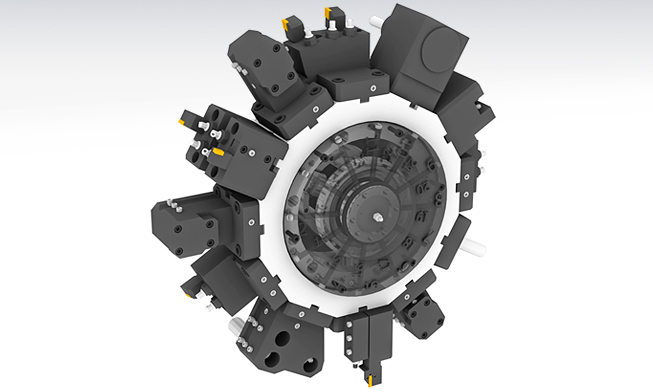

| No. of Tools | 8 pcs | 12 pcs |
| Machine Size | 1855x2842x2930 mm | 1855x2842x2930 mm |
| Weight | 10000 kg | 10000 kg |
