LV2000MM
The CNC Turning Center LV1400/2000 Series, designed by WIA Machine Tools with years of expertise and the latest technology, is designed to maximize productivity for machining large work.
Features

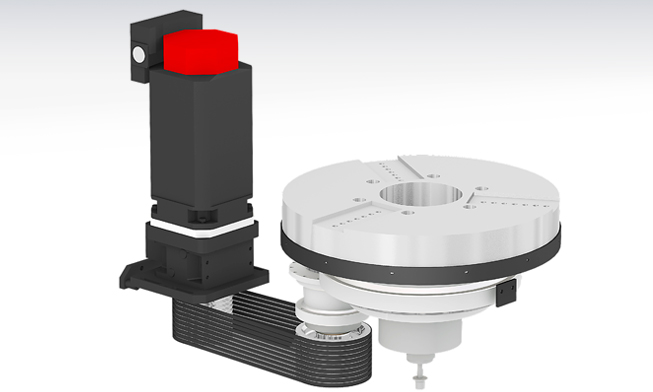

- Strengthened heavy duty cutting ability with 2 step gear driven spindle (table)

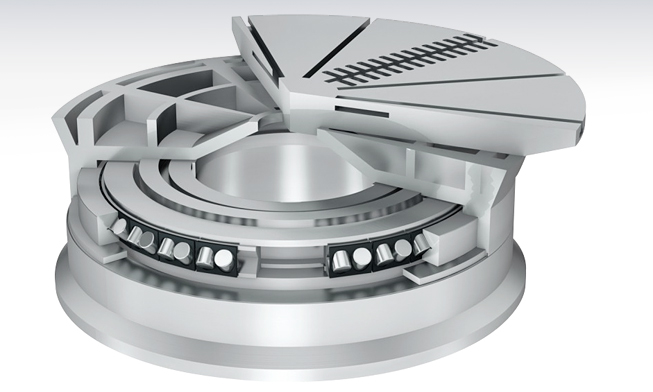

- Main spindle with cross roller bearings and box guideway for high rigidity

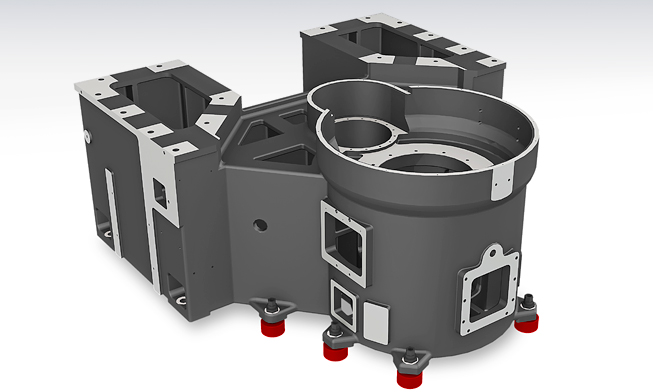

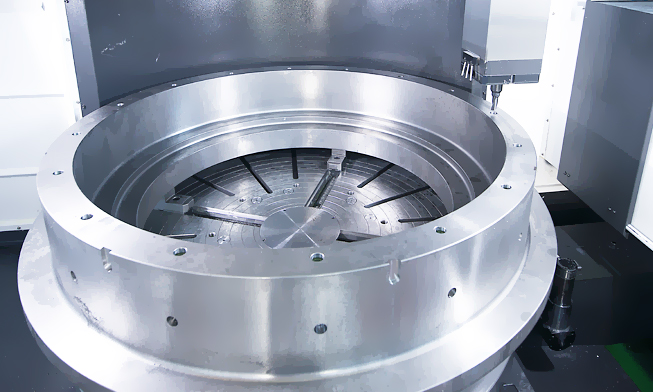

- Rigid table structure for processing heavy loads

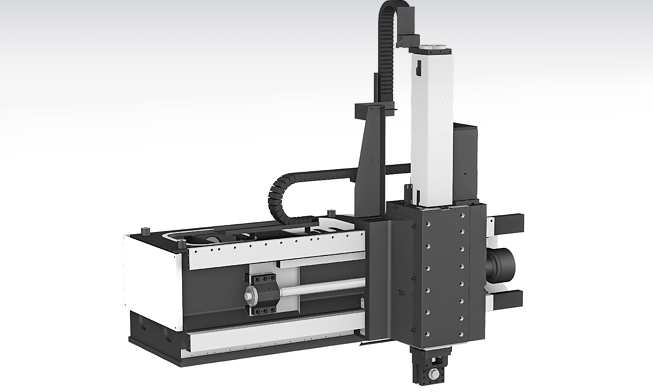

- 3 step hydraulic cylinder type crossrail (LV2000MM)

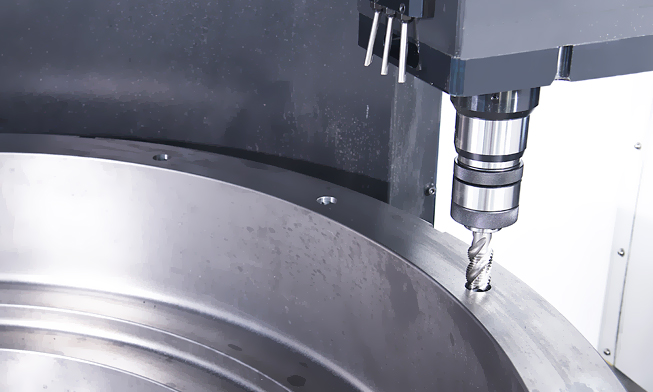

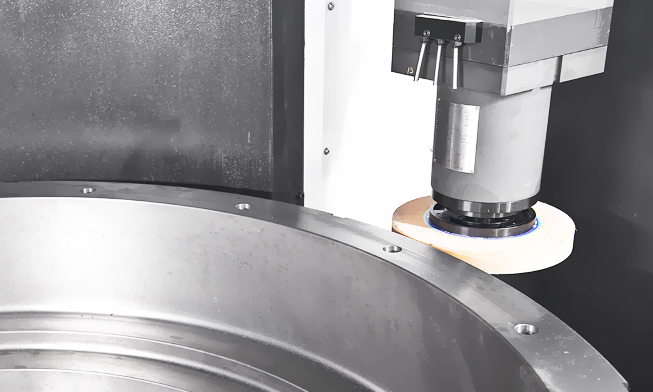

- Various machining: Turning, tapping, milling, grinding etc. (LV2000MM)
- Linear scale on all axis as standard (LV2000MM)
Specifications
| Specification | LV2000MM |
|---|---|
| Max. Turning Dia. | 2000 mm |
| Max. Turning Length | 1700 mm |
| Spindle Bore | 1600 mm |
| Spindle Speed | 258 RPM |
| Motor (Max/Cont.) | 37/30 kW |
| Spindle Type | Spindle & Table |
| No. of Tools | 18 pcs |
| Machine Size | 5683x3937x6177 mm |
| Weight | 29000 kg |
