LV1100 Series
Flexible, Productive Automation System Vertical Turning Center. The CNC Turning Center LV500/1100 Series, designed by WIA Machine Tools with years of expertise and the latest technology, is designed to maximize productivity by high speed and accurate performance.
Features

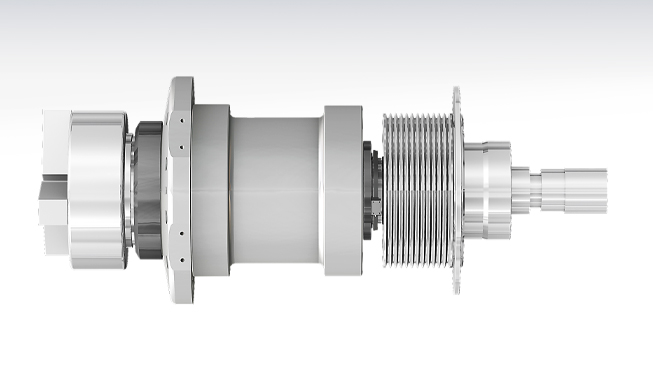

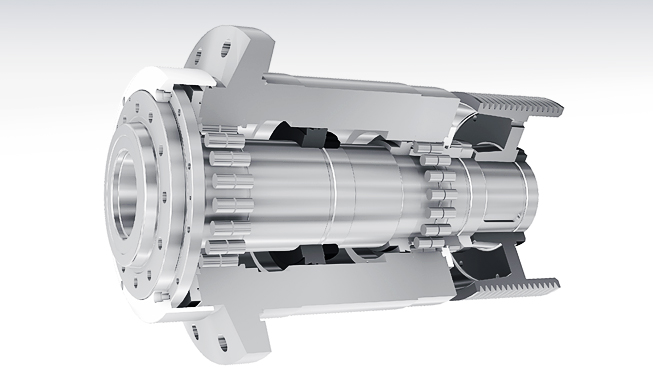

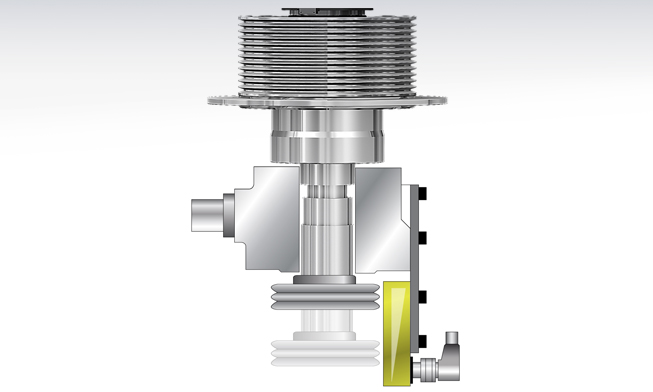

- Stable spindle structure with excellent heavy duty cutting ability
- 2 step chuck pressure mechanism adopted to minimize workpiece deformation

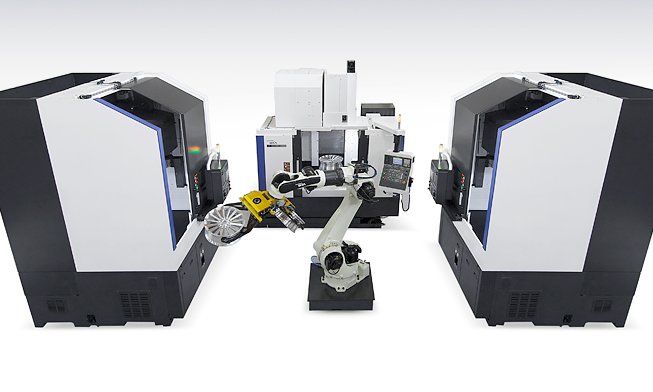

- Various peripheral equipment can be used for optimized machining
- Designed for optimal chip disposal

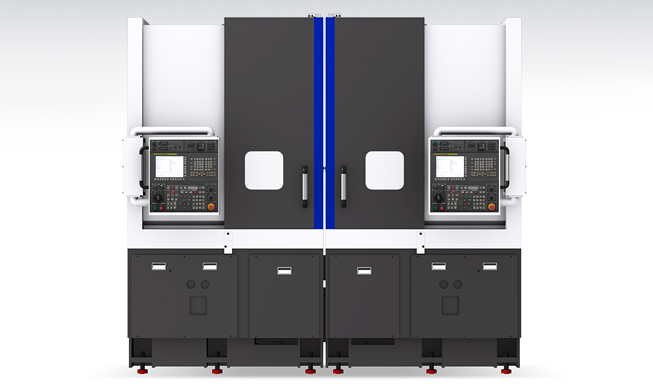

- “Right” and “Left” structure for practical automation construction (LV500 Series)
Specifications
| Specification | LV1100R | LV1100RM |
|---|---|---|
| Max. Turning Dia. | 1160 mm | 1160 mm |
| Max. Turning Length | 1000 mm | 1000 mm |
| Spindle Bore | 110 mm | 110 mm |
| Spindle Speed | 800 RPM | 800 RPM |
| Motor (Max/Cont.) | 65/55/45 kW | 65/55/45 kW |
| Spindle Type | Gear Box | Gear Box |

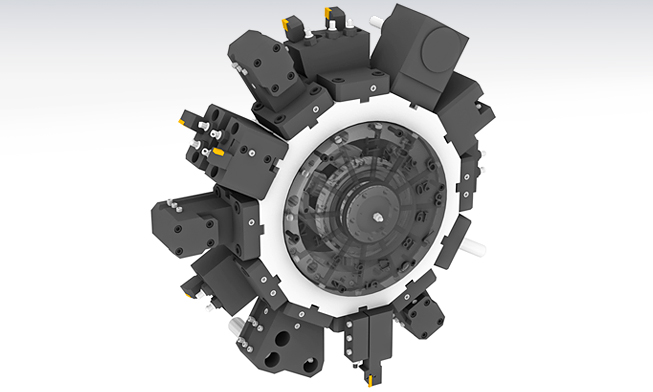

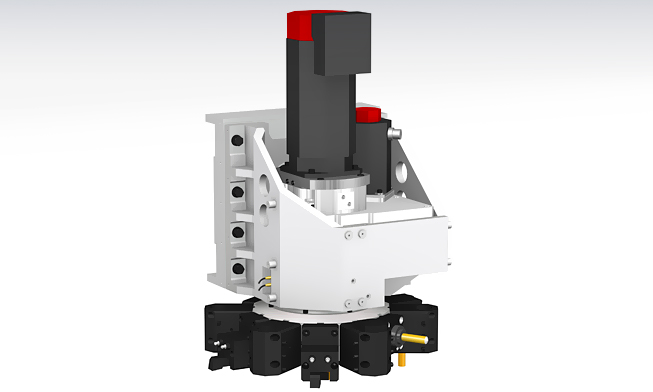

| No. of Tools | 12 pcs | 12 pcs |
| Machine Size | 2922x4325x3776 mm | 2922x4325x3776 mm |
| Weight | 22000 kg | 22000 kg |
