LM2200TTSYY Series

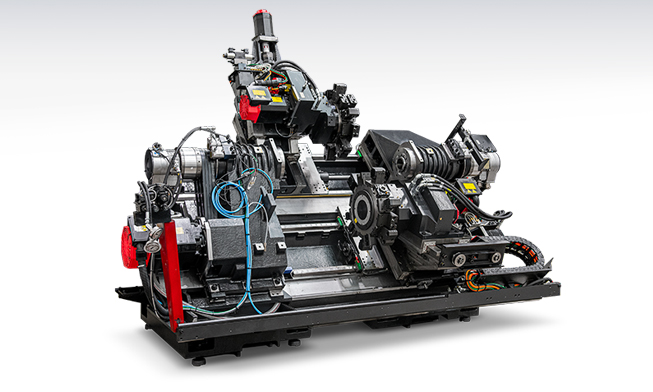

The CNC Turning Center LM2200TTSYY/C, designed by Hyundai WIA with years of expertise and the latest technology, is designed to maximize productivity by utilizing twin spindles and twin turrets.
Features
- Complex machining ability enhanced through upper/lower twin turret & twin Y-axis structure
- Front & rear surface machining with twin spindle
- Hybrid travel structure with box guide & roller LM guide combination
- Diverse work piece size coverage with 8″ & 10″ spindle configuration
- High performance latest FANUC control applied
Specifications
| Specification | LM2200TTSYY | LM2200TTSYYC |
|---|---|---|
| Max. Turning Dia. | 230 mm | 230 mm |
| Max. Turning Length | 230 mm | 230 mm |
| Spindle Bore | 76 mm | 91 mm |
| Spindle Speed | 4500 RPM | 3500 RPM |
| Motor (Max/Cont.) | 18.5/15 kW | 18.5/15 kW |
| Spindle Type | Belt | Belt |
| No. of Tools | 2x24 pcs | 2x24 pcs |
| Machine Size | 3815x2224x2094 mm | 3845x2224x2094 mm |
| Weight | 9000 kg | 9000 kg |
