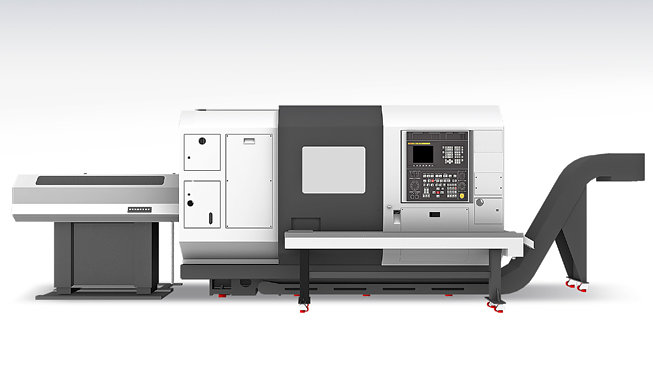

LM1800TT Series
The CNC Turning Center LM-TT Series, designed by WIA Machine Tools with years of expertise and the latest technology, is designed to maximize productivity by utilizing twin spindles and twin turrets.
Features

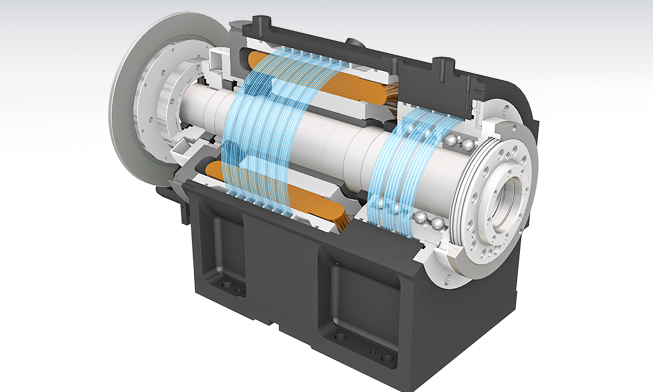

- High power built-in spindle motor

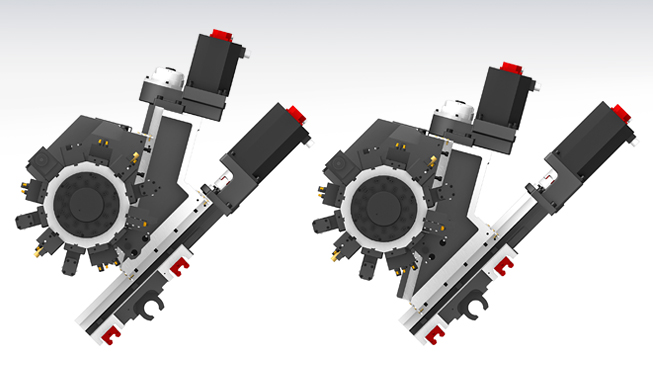

- Use of twin turrets guarantees high productivity

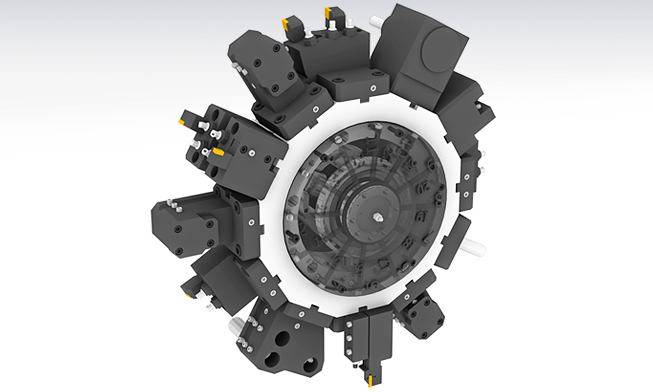

- High rigidity BMT turret

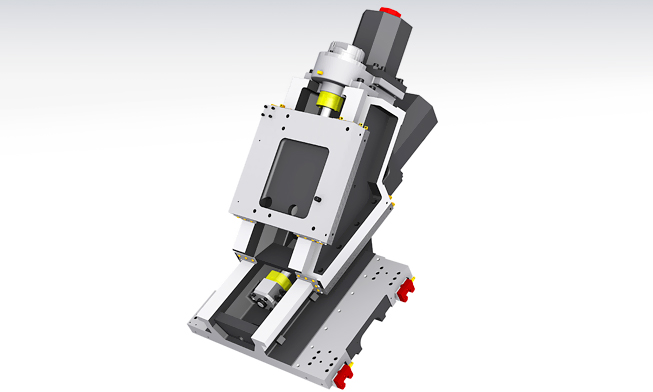

- Multiple processing is possible with the addition of Y-axis on the upper turret (TTSY Series)

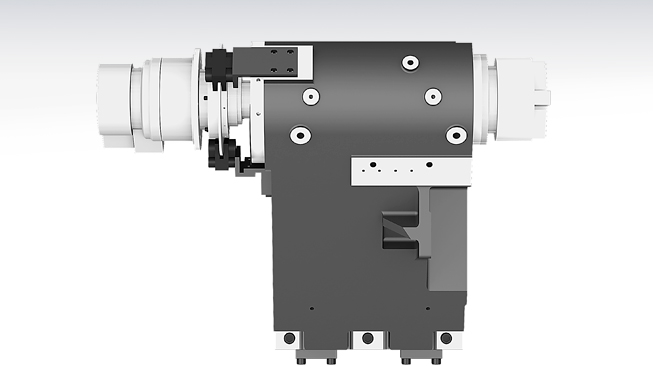

- Integrated processing through synchronized control of twin spindles

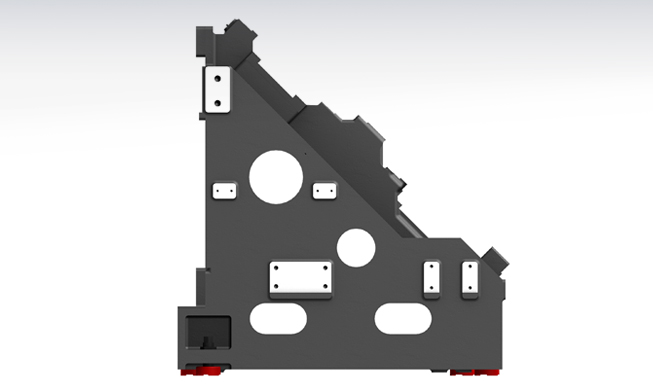

- Hybrid travel system achieved by combination of box and roller guideways
Specifications
| Specification | LM1800TTS | LM1800TTMS | LM1800TTSY |
|---|---|---|---|
| Max. Turning Dia. | 230 mm | 230 mm | 230 mm |
| Max. Turning Length | 673 mm | 673 mm | 673 mm |
| Spindle Bore | 76 mm | 76 mm | 76 mm |
| Spindle Speed | 5000 RPM | 5000 RPM | 5000 RPM |
| Motor (Max/Cont.) | 22/11 kW | 22/11 kW | 22/11 kW |
| Spindle Type | Built-in Motor | Built-in Motor | Built-in Motor |
| No. of Tools | 2x24 pcs | 2x24 pcs | 2x24 pcs |
| Machine Size | 3660x2000x2089 mm | 3660x2000x2089 mm | 3660x2000x2089 mm |
| Weight | 8000 kg | 8300 kg | 8500 kg |
