LF2600 II Series
Twin Spindle, Front Loading CNC Turning Center. LF-II Series features high mobility through its compact size, making it suitable for tight spaces, and automated operations for maximizing productivity.
Features

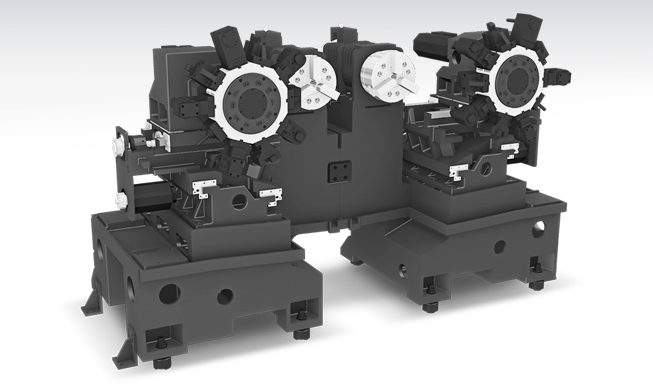

- Increased rigidity by improving Z-axis structure
- Selection between roller LM guide and box guide way
- Stable unit composition with minimized thermal deformation

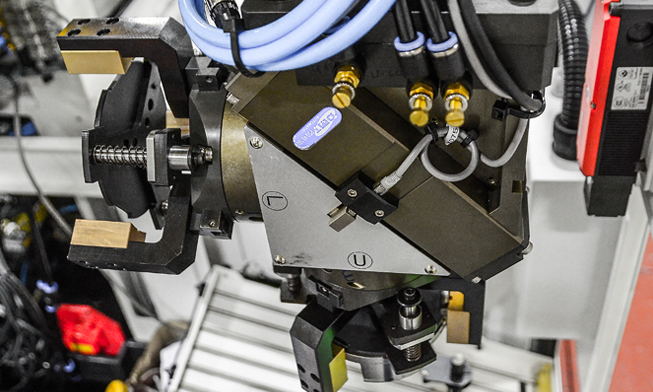

- Various types of gantry loader ensure effective & flexible automation
- A pleasant working environment by improving chip disposal ability
- Enhanced convenience by applying Fanuc’s latest controller
Specifications
| Specification | LF2600 II | LF2600Quick II | LF2600M II | LF2600MQuick II |
|---|---|---|---|---|
| Max. Turning Dia. | 360 mm | 360 mm | 360 mm | 360 mm |
| Max. Turning Length | 200 mm | 200 mm | 200 mm | 200 mm |
| Spindle Bore | 75 mm | 75 mm | 75 mm | 75 mm |
| Spindle Speed | 4000 RPM | 4000 RPM | 4000 RPM | 4000 RPM |
| Motor (Max/Cont.) | 15/11 kW | 15/11 kW | 15/11 kW | 15/11 kW |
| Spindle Type | Belt | Belt | Belt | Belt |
| No. of Tools | 10 pcs | 10 pcs | 10 pcs | 10 pcs |
| Machine Size | 2360x3073x2626 mm | 2360x3073x2626 mm | 2360x3073x2626 mm | 2360x3073x2626 mm |
| Weight | 6500 kg | 6500 kg | 6500 kg | 6500 kg |
