LF2200 II Series

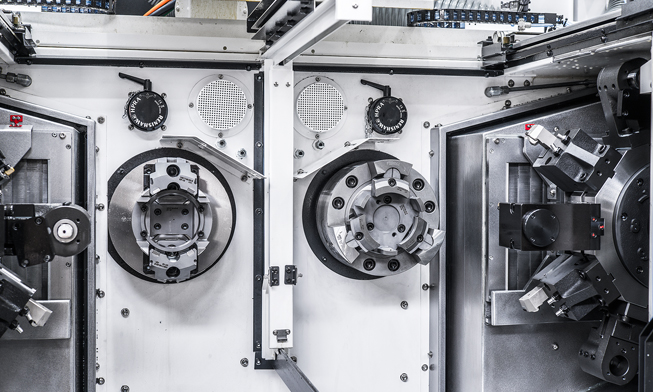

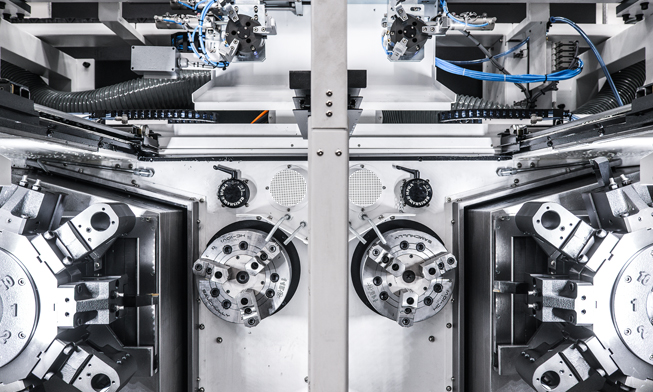

Twin Spindle, Front Loading CNC Turning Center. LF-II Series features high mobility through its compact size, making it suitable for tight spaces, and automated operations for maximizing productivity.
Features
- Increased rigidity by improving Z-axis structure
- Selection between roller LM guide and box guide way
- Stable unit composition with minimized thermal deformation

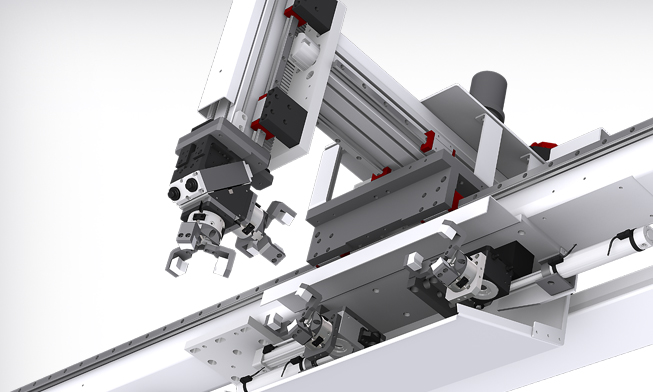

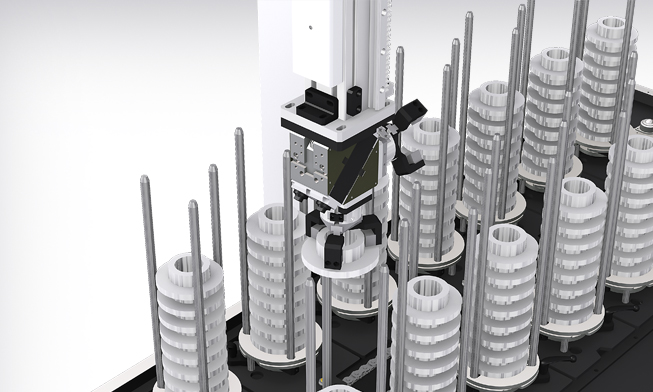

- Various types of gantry loader ensure effective & flexible automation
- A pleasant working environment by improving chip disposal ability
- Enhanced convenience by applying Fanuc’s latest controller
Specifications
| Specification | LF2200 II | LF2200Quick II | LF2200M II | LF2200MQuick II |
|---|---|---|---|---|
| Max. Turning Dia. | 260 mm | 260 mm | 260 mm | 260 mm |
| Max. Turning Length | 170 mm | 170 mm | 170 mm | 170 mm |
| Spindle Bore | 46 mm | 46 mm | 46 mm | 46 mm |
| Spindle Speed | 6000 RPM | 6000 RPM | 6000 RPM | 6000 RPM |
| Motor (Max/Cont.) | 15/11 kW | 15/11 kW | 15/11 kW | 15/11 kW |
| Spindle Type | Belt | Belt | Belt | Belt |
| No. of Tools | 8 pcs | 8 pcs | 10 pcs | 10 pcs |
| Machine Size | 2000x1946x2545 mm | 2000x1946x2545 mm | 2000x1946x2545 mm | 2000x1946x2545 mm |
| Weight | 5200 kg | 5200 kg | 5200 kg | 5200 kg |
