L800A Series
The CNC Turning Center L600/700/800 Series, designed by WIA Machine Tools with years of expertise and the latest technology, is a Turning Center that maximizes productivity and performance.
Features

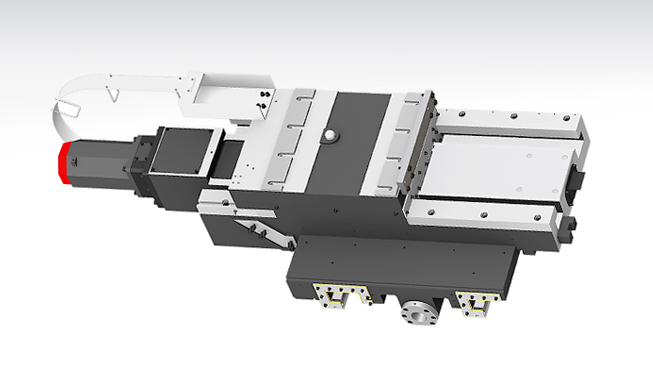

- Sturdiness secured through box guideways on all axis
- One piece structure for high accuracy and rigidity
- Pretensioned double anchored method provides high precision

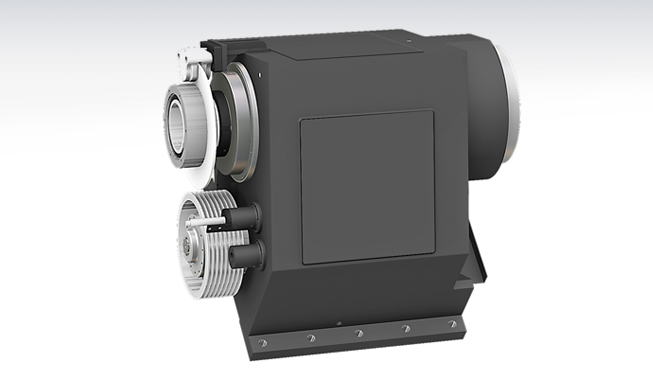

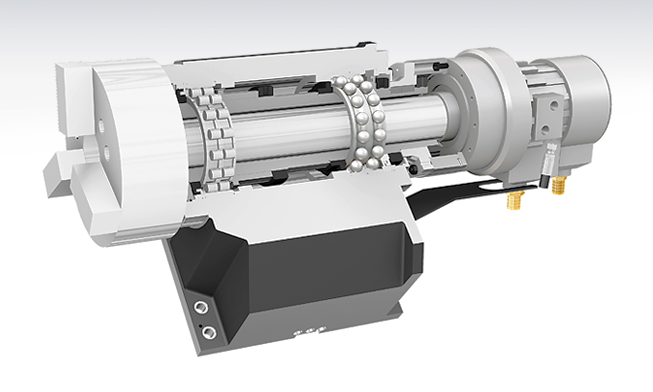

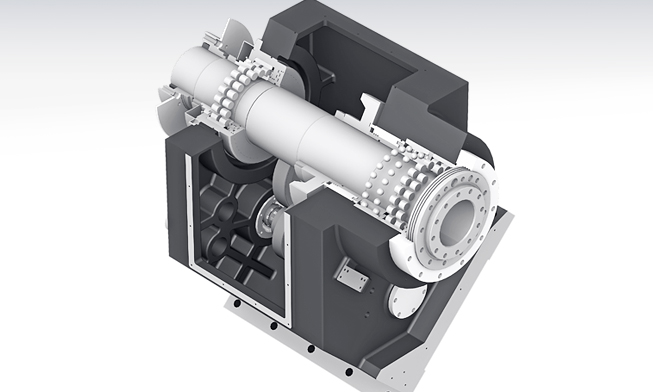

- Gear box type main spindle (L600/700 Series: 3 step / L800 Series: 2 step)
- Big bore spindle with a maximum spindle bore of Ø375 (Ø14.8″) (L800D Series)
- Structure designed for machining long shafts and pipes with maximum turning length of 3,250mm (128″) (Long Bed Type)
Specifications
| Specification | L800A | L800MA | L800LA | L800LMA |
|---|---|---|---|---|
| Max. Turning Dia. | 920 mm | 920 mm | 920 mm | 920 mm |
| Max. Turning Length | 1650 mm | 1650 mm | 3250 mm | 3250 mm |
| Spindle Bore | 320 mm | 320 mm | 320 mm | 320 mm |
| Spindle Speed | 700 RPM | 700 RPM | 700 RPM | 700 RPM |
| Motor (Max/Cont.) | 45/37 kW | 45/37 kW | 45/37 kW | 45/37 kW |
| Spindle Type | Belt + 2-Step Gear | Belt + 2-Step Gear | Belt + 2-Step Gear | Belt + 2-Step Gear |

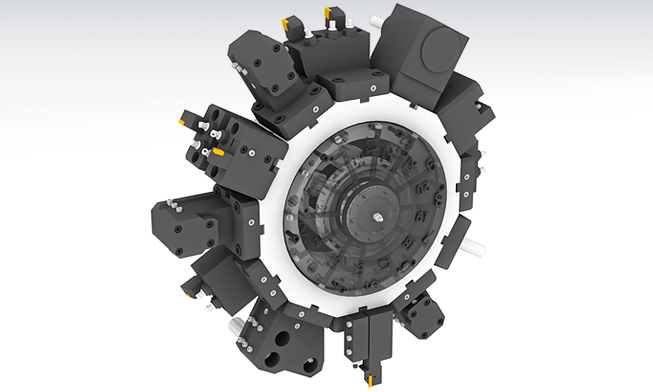

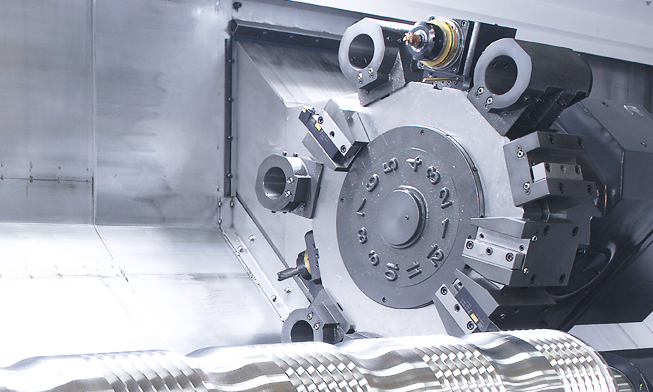

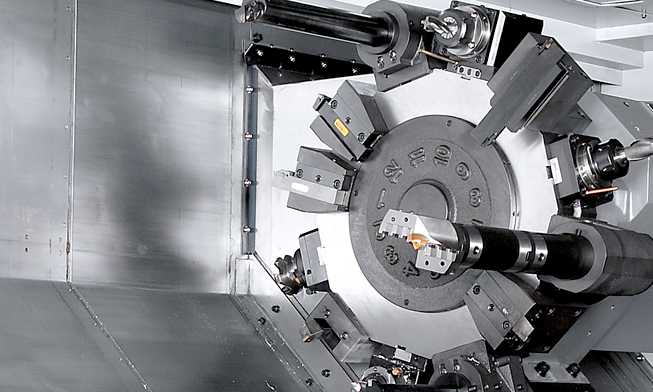

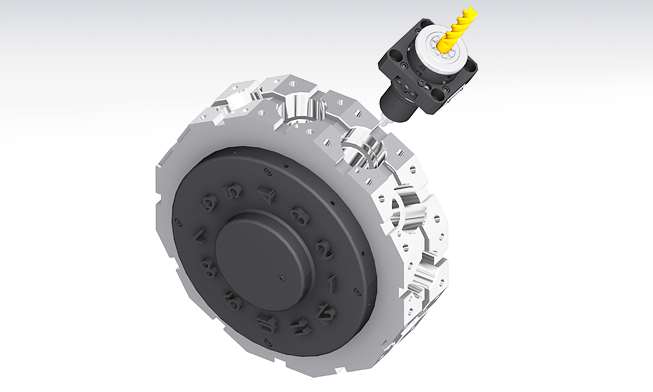

| No. of Tools | 12 pcs | 12 pcs | 12 pcs | 12 pcs |
| Machine Size | 7077x3075x2700 mm | 7077x3075x2700 mm | 8715x3075x2700 mm | 8715x3075x2700 mm |
| Weight | 18000 kg | 18000 kg | 23500 kg | 23500 kg |
