L5100LY
The CNC Turning Center L5100L Series designed by WIA Machine Tools with years of expertise and the latest technology, is a Turning Center that maximizes productivity and performance.
Features
- Applying high-rigidity box guideway on all axis
- Max. turning length 2,070mm (81.5″) long bed structure
- 2 step gear box type main spindle

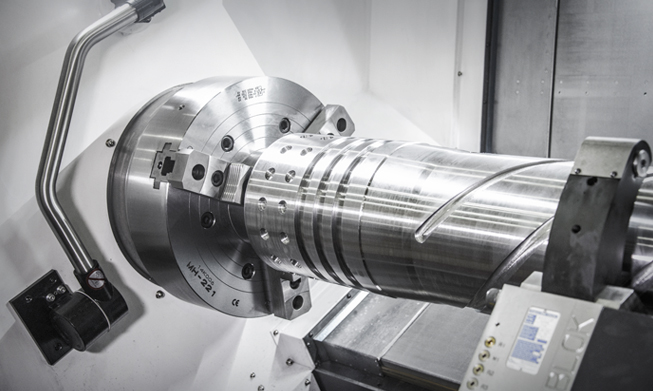

- Application of high-performance main spindle (L5100LC/LMC: Max. torque 4,486 N·m)

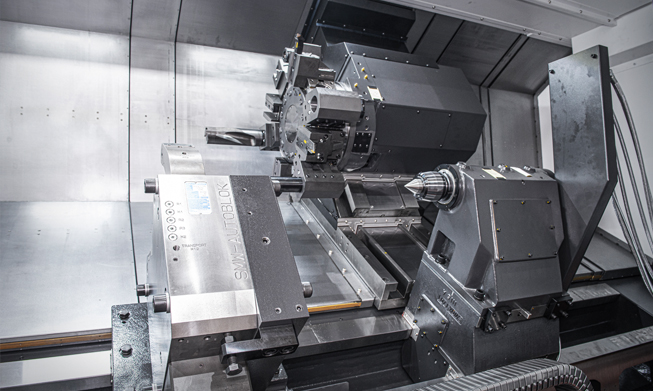

- Stable long shaft turning with steady rest option

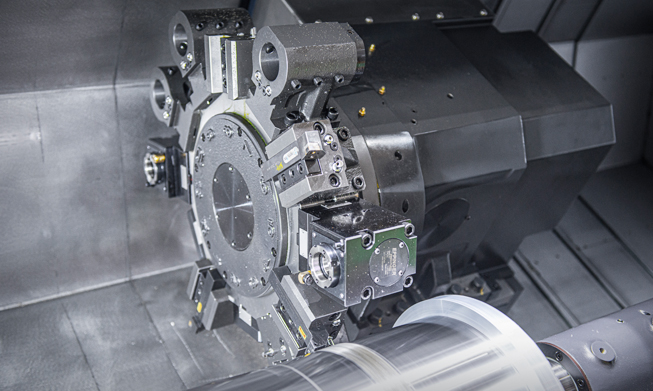

- Multi-tasking operation with wedge type Y-axis BMT75 turret (L5100LY)
Specifications
| Specification | L5100LY |
|---|---|
| Max. Turning Dia. | 610 mm |
| Max. Turning Length | 2070 mm |
| Spindle Bore | 181 mm |
| Spindle Speed | 1500 RPM |
| Motor (Max/Cont.) | 45/37 kW |
| Spindle Type | Belt + 2-Step Gear |
| No. of Tools | 12 pcs |
| Machine Size | 6235x2978x2515 mm |
| Weight | 14000 kg |
