L5100L Series
The CNC Turning Center L5100L Series designed by WIA Machine Tools with years of expertise and the latest technology, is a Turning Center that maximizes productivity and performance.
Features
- Applying high-rigidity box guideway on all axis
- Max. turning length 2,070mm (81.5″) long bed structure

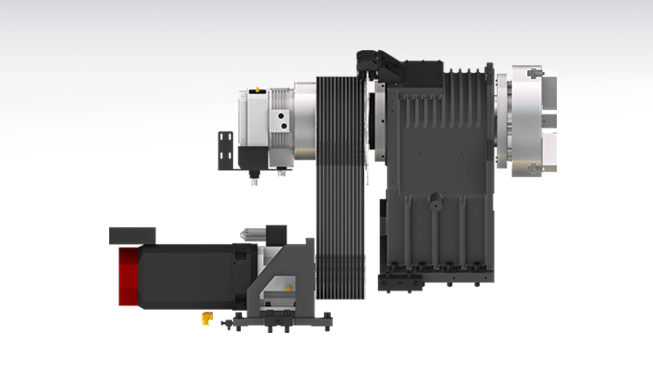

- 2 step gear box type main spindle

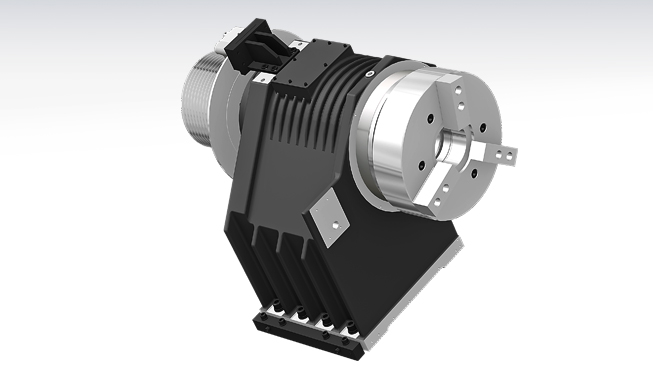

- Application of high-performance main spindle (L5100LC/LMC: Max. torque 4,486 N·m)
- Stable long shaft turning with steady rest option

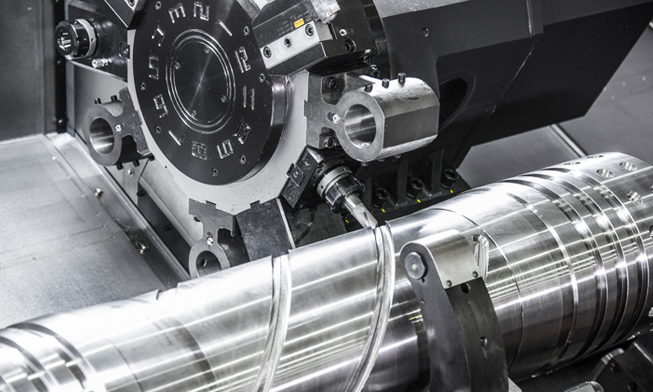

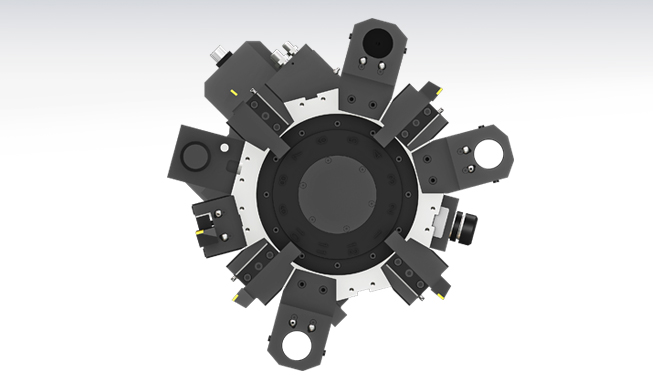

- Multi-tasking operation with wedge type Y-axis BMT75 turret (L5100LY)
Specifications
| Specification | L5100L | L5100LM | L5100LC | L5100LMC |
|---|---|---|---|---|
| Max. Turning Dia. | 760 mm | 690 mm | 760 mm | 690 mm |
| Max. Turning Length | 2205 mm | 2120 mm | 2205 mm | 2120 mm |
| Spindle Bore | 181 mm | 181 mm | 276 mm | 276 mm |
| Spindle Speed | 1500 RPM | 1500 RPM | 1000 RPM | 1000 RPM |
| Motor (Max/Cont.) | 45/37 kW | 45/37 kW | 45/37 kW | 45/37 kW |
| Spindle Type | Belt + 2-Step Gear | Belt + 2-Step Gear | Belt + 2-Step Gear | Belt + 2-Step Gear |
| No. of Tools | 10 pcs | 12 pcs | 10 pcs | 12 pcs |
| Machine Size | 6235x2978x2315 mm | 6235x2978x2315 mm | 6455x2978x2315 mm | 6455x2978x2315 mm |
| Weight | 13000 kg | 13200 kg | 13300 kg | 13500 kg |
