L4000C Series
The CNC Turning Center L4000 series, designed by WIA Machine Tools with years of expertise and the latest technology, is a Turning Center that maximizes productivity and performance.
.jpg)

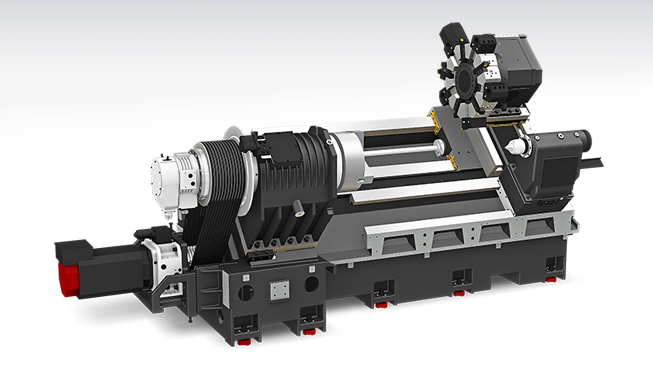

Features
- Box guideways for heavy-duty cutting

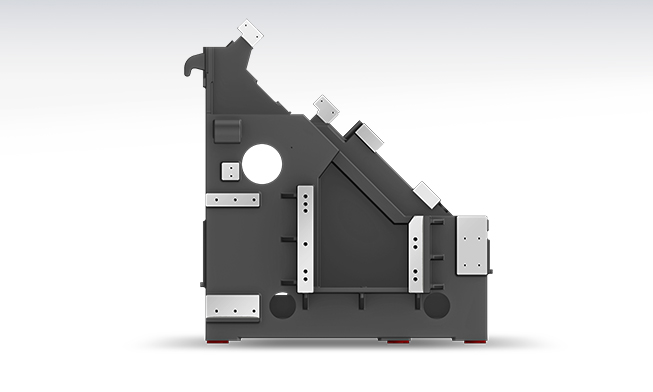

- One-piece bed structure with high rigidity

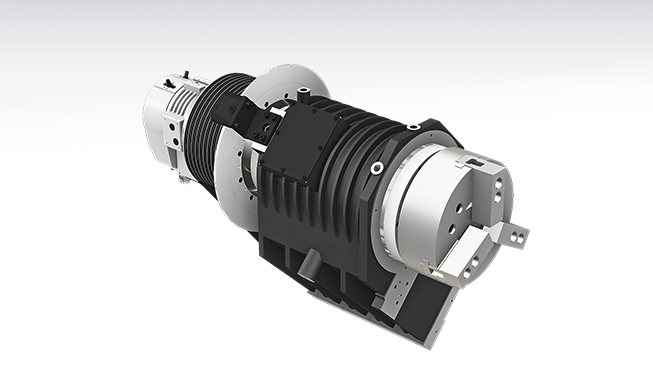

- Stabilized main spindle structure to minimize thermal displacement

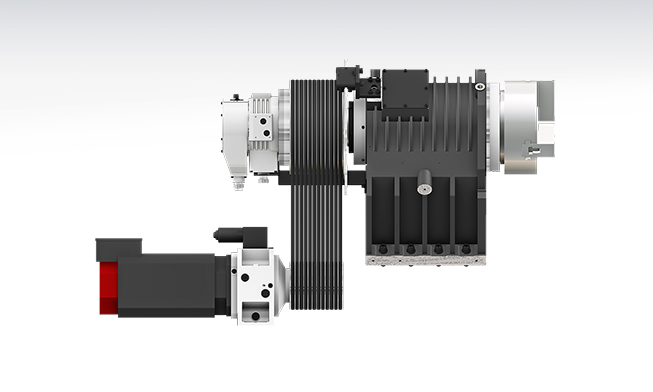

- Specialized in heavy cutting by applying 2-Step gear box type main spindle (Max. Torque Opt. 3,378 N·m)
Specifications
| Specification | L4000C | L4000MC | L4000LC | L4000LMC |
|---|---|---|---|---|
| Max. Turning Dia. | 570 mm | 570 mm | 570 mm | 570 mm |
| Max. Turning Length | 1025 mm | 940 mm | 2120 mm | 2035 mm |
| Spindle Bore | 181 mm | 181 mm | 181 mm | 181 mm |
| Spindle Speed | 1500 RPM | 1500 RPM | 1500 RPM | 1500 RPM |
| Motor (Max/Cont.) | 37/30 kW | 37/30 kW | 37/30 kW | 37/30 kW |
| Spindle Type | Belt + 2-Step Gear | Belt + 2-Step Gear | Belt + 2-Step Gear | Belt + 2-Step Gear |

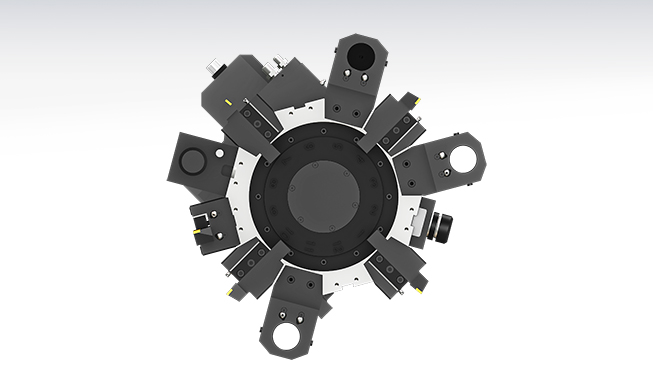

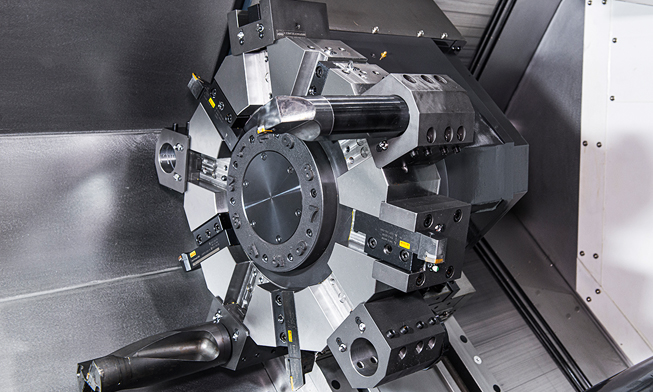

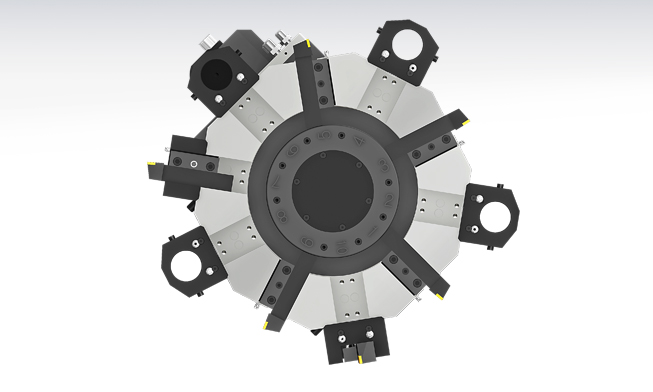

| No. of Tools | 10 pcs | 12 pcs | 10 pcs | 12 pcs |
| Machine Size | 4933x2120x2173 mm | 4933x2120x2173 mm | 6043x2270x2173 mm | 6043x2270x2173 mm |
| Weight | 8700 kg | 8800 kg | 10900 kg | 11000 kg |
