L300C Series
The L300 Series, designed by WIA Machine Tools with years of expertise and the latest technology, is a Turning Center that maximizes productivity and performance.
Features
- Rigidity secured through box guideways
- Highly accurate direct link and solid one-piece structure

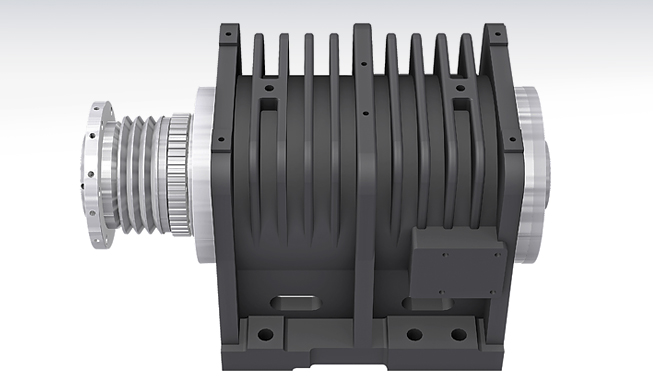

- Main spindle heat displacement minimized

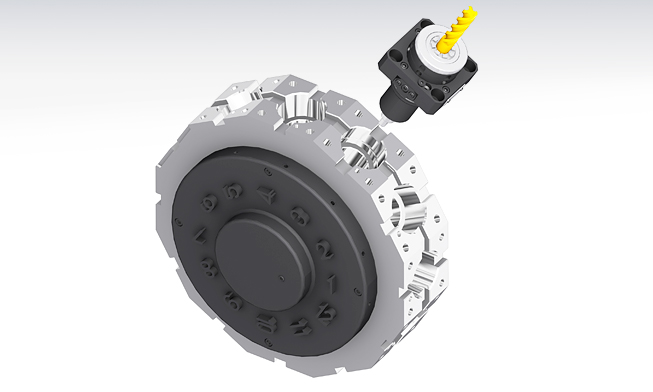

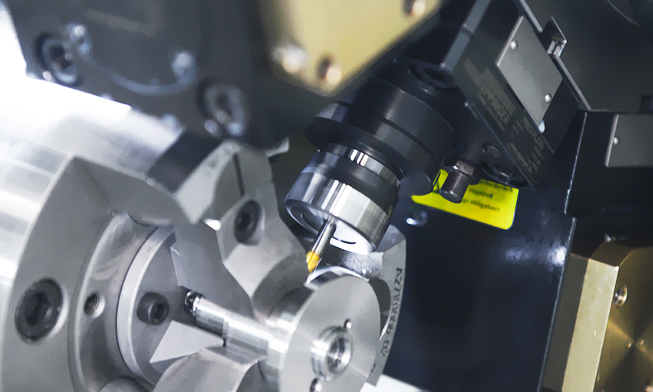

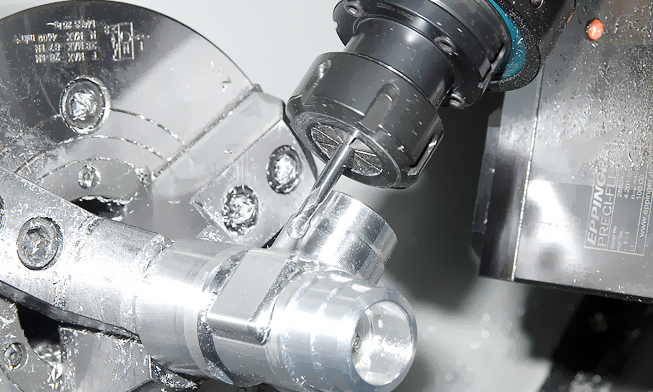

- All gearless type spindle machines applied with mill turret
- Integrated process realized through adoption of 8″ sub spindle
- Optional big bore spindle is available (L300C series)
Specifications
| Specification | L300C | L300LC | L300MC | L300LMC | L300MSC |
|---|---|---|---|---|---|
| Max. Turning Dia. | 560 mm | 560 mm | 500 mm | 500 mm | 500 mm |
| Max. Turning Length | 720 mm | 1320 mm | 600 mm | 1260 mm | 600 mm |
| Spindle Bore | 102 mm | 102 mm | 102 mm | 102 mm | 102 mm |
| Spindle Speed | 3000 RPM | 3000 RPM | 3000 RPM | 3000 RPM | 3000 RPM |
| Motor (Max/Cont.) | 26/22 kW | 26/22 kW | 22/18.5 kW | 22/18.5 kW | 22/18.5 kW |

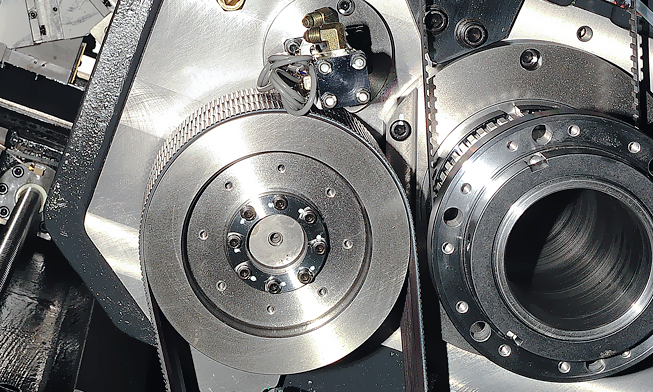

| Spindle Type | Belt + 2-Step Gear | Belt + 2-Step Gear | Belt | Belt | Belt |
| No. of Tools | 12 pcs | 12 pcs | 12 pcs | 12 pcs | 12 pcs |
| Machine Size | 3506x2002x1997 mm | 4170x2002x1997 mm | 3480x2002x1997 mm | 4170x2002x1997 mm | 3586x2002x1997 mm |
| Weight | 6400 kg | 7600 kg | 6600 kg | 7800 kg | 7100 kg |
