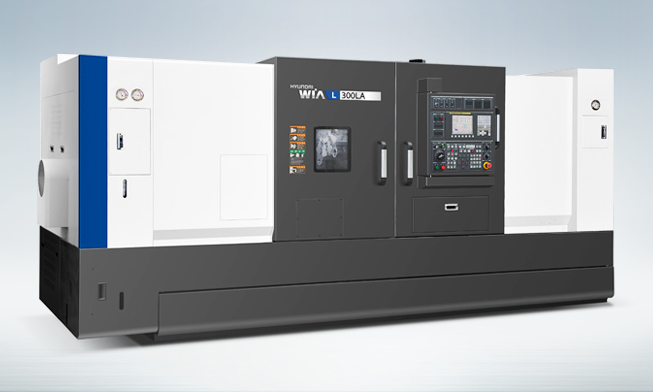

L300A Series
The L300 Series, designed by WIA Machine Tools with years of expertise and the latest technology, is a Turning Center that maximizes productivity and performance.
Features
- Rigidity secured through box guideways
- Highly accurate direct link and solid one-piece structure

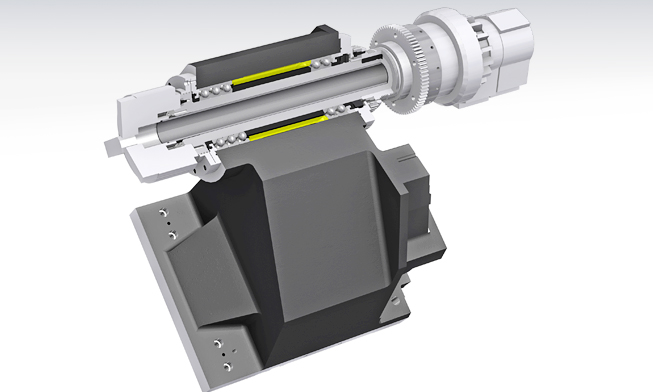

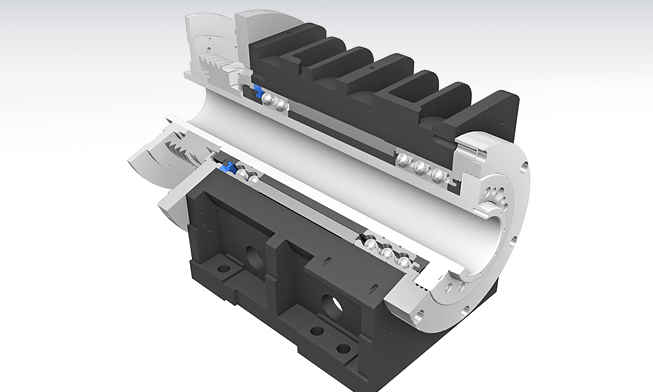

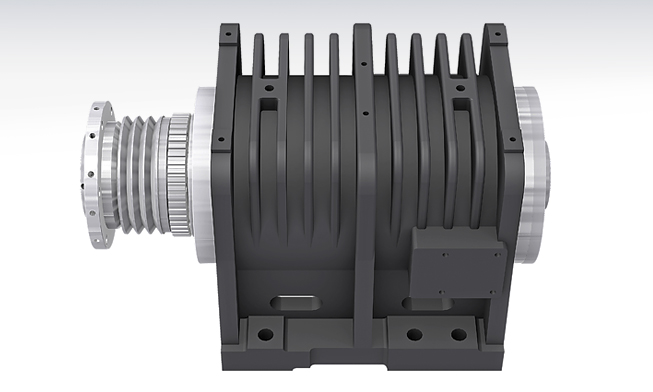

- Main spindle heat displacement minimized

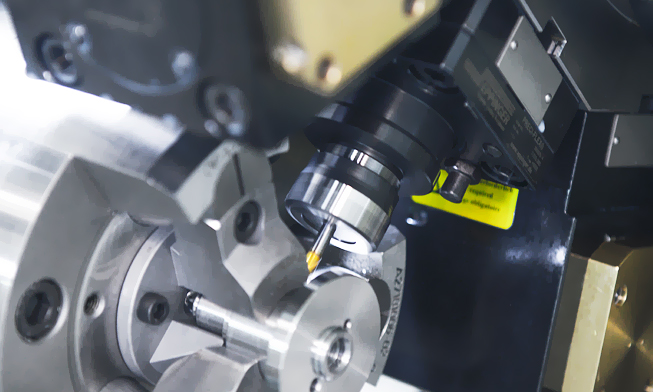

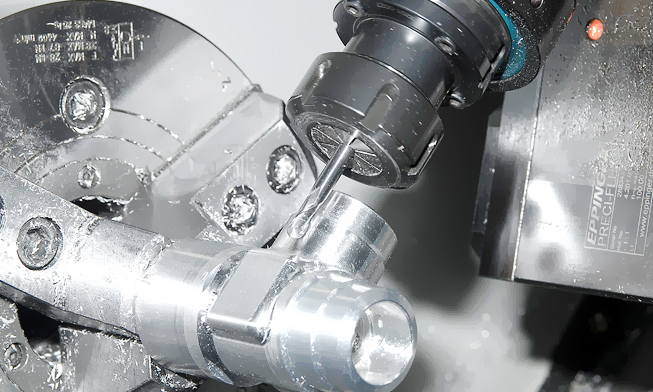

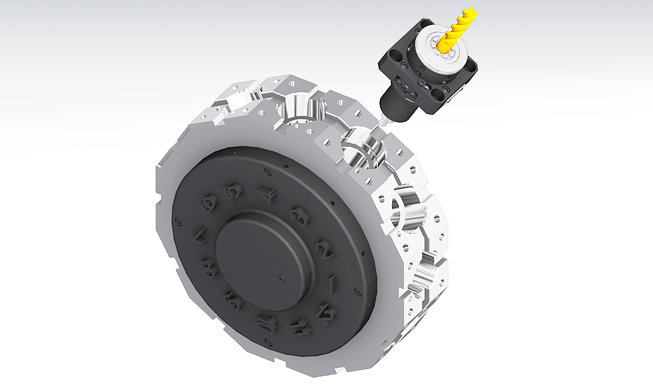

- All gearless type spindle machines applied with mill turret
- Integrated process realized through adoption of 8″ sub spindle
- Optional big bore spindle is available (L300C series)
Specifications
| Specification | L300A | L300MA | L300MSA | L300LA | L300LMA | L300LMSA |
|---|---|---|---|---|---|---|
| Max. Turning Dia. | 500 mm | 410 mm | 410 mm | 500 mm | 410 mm | 410 mm |
| Max. Turning Length | 720 mm | 680 mm | 680 mm | 1320 mm | 1280 mm | 1250 mm |
| Spindle Bore | 90 mm | 95 mm | 95 mm | 90 mm | 95 mm | 95 mm |
| Spindle Speed | 3600 RPM | 3500 RPM | 3500 RPM | 3600 RPM | 3500 RPM | 3500 RPM |
| Motor (Max/Cont.) | 22/18.5 kW | 22/18.5 kW | 22/18.5 kW | 22/18.5 kW | 22/18.5 kW | 22/18.5 kW |

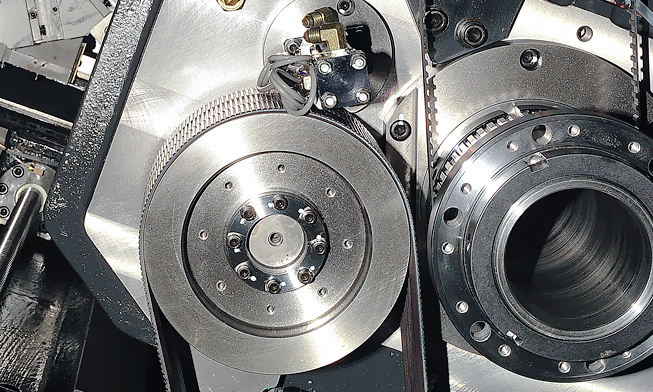

| Spindle Type | Belt + 2-Step Gear | Belt | Belt | Belt + 2-Step Gear | Belt | Belt |
| No. of Tools | 12 pcs | 12 pcs | 12 pcs | 12 pcs | 12 pcs | 12 pcs |
| Machine Size | 3200x2002x1997 mm | 3360x2002x1997 mm | 3470x2002x1997 mm | 4171x2002x1997 mm | 4171x2002x1997 mm | 4171x2002x1997 mm |
| Weight | 6300 kg | 6500 kg | 7000 kg | 7500 kg | 7700 kg | 8200 kg |
