L3000Y Series

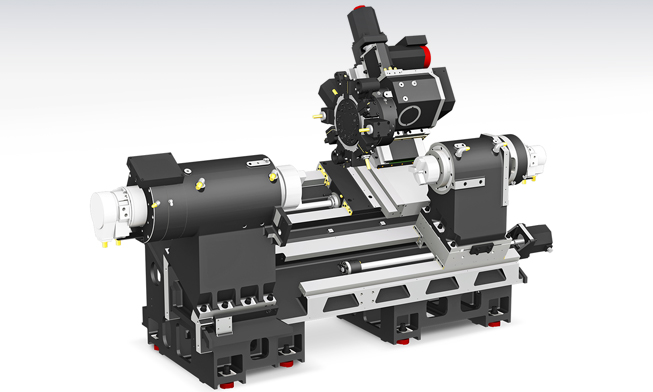

The CNC Turning Center L-SY Series, designed with WIA Machine Tools's engineering expertise to maximize productivity by enhancing rigidity and accuracy of machining.
Features

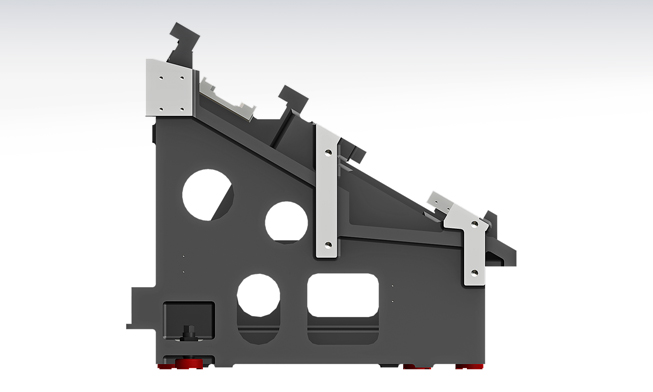

- Cycle time reducing structure for maximum productivity

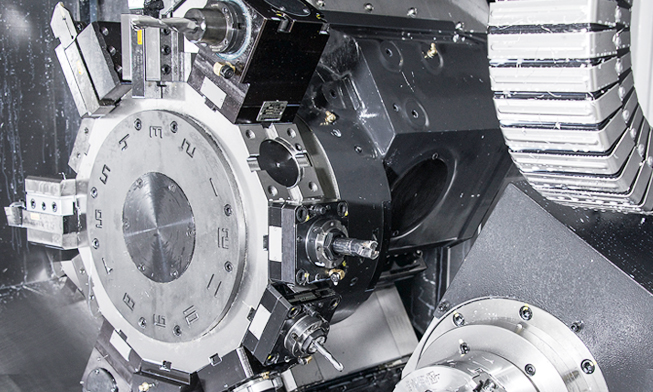

- Multi-tasking operation with wedge type Y-axis BMT65 turret

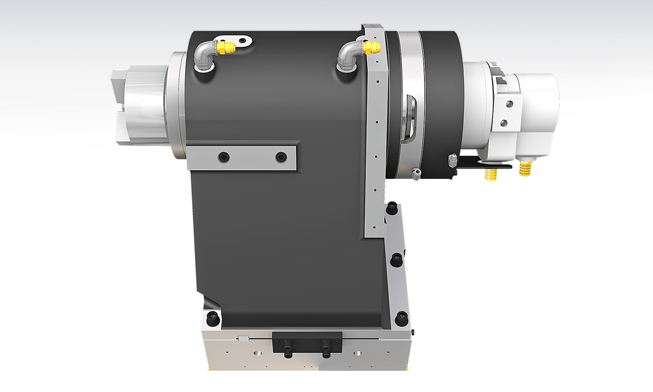

- Integrated processing through synchronized control of Main/Sub spindle (‘S’ Type)

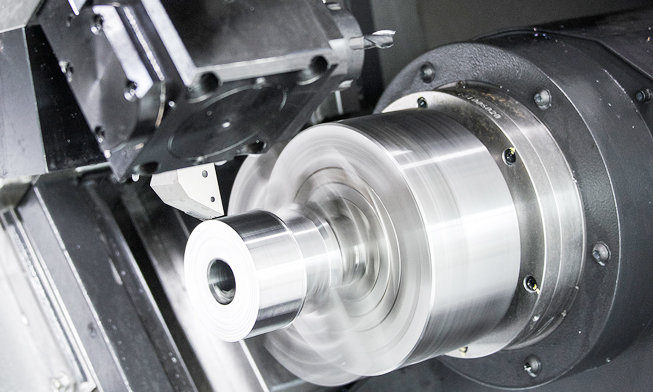

- High performance heavy duty cutting enabled with box guideways

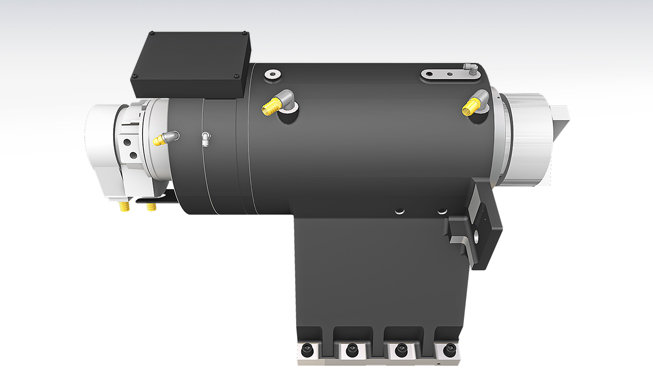

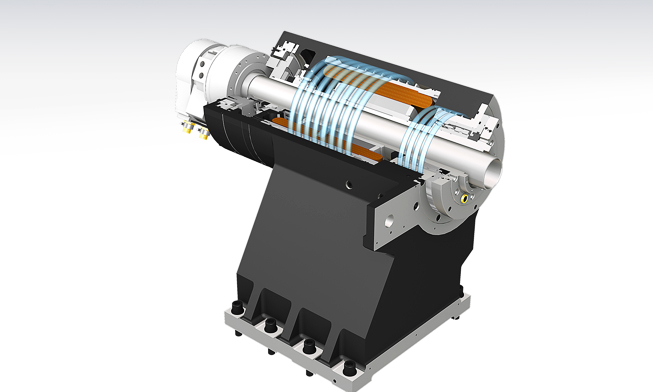

- Main/Sub Built-in Spindle application for high precision machining
Specifications
| Specification | L3000Y | L3000LY | L3000SY |
|---|---|---|---|
| Max. Turning Dia. | 420 mm | 420 mm | 420 mm |
| Max. Turning Length | 760 mm | 1280 mm | 760 mm |
| Spindle Bore | 115 mm | 115 mm | 115 mm |
| Spindle Speed | 3000 RPM | 3000 RPM | 3000 RPM |
| Motor (Max/Cont.) | 37/25 kW | 37/25 kW | 37/25 kW |
| Spindle Type | Built-in | Built-in | Built-in |
| No. of Tools | 12 pcs | 12 pcs | 12 pcs |
| Machine Size | 3600x1890x1950 mm | 4320x1890x1950 mm | 3600x1890x1950 mm |
| Weight | 6700 kg | 7800 kg | 6900 kg |
