L2000Y Series
The CNC Turning Center L-SY Series, designed with WIA Machine Tools's engineering expertise to maximize productivity by enhancing rigidity and accuracy of machining.
Features
- Cycle time reducing structure for maximum productivity

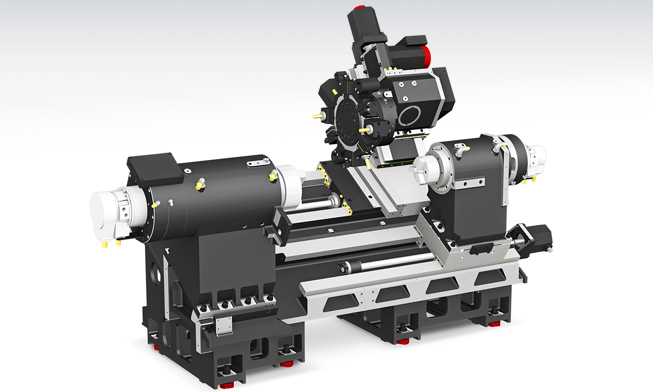

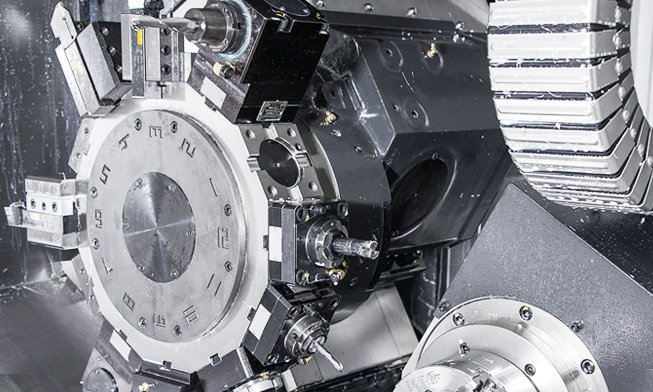

- Multi-tasking operation with wedge type Y-axis BMT65 turret

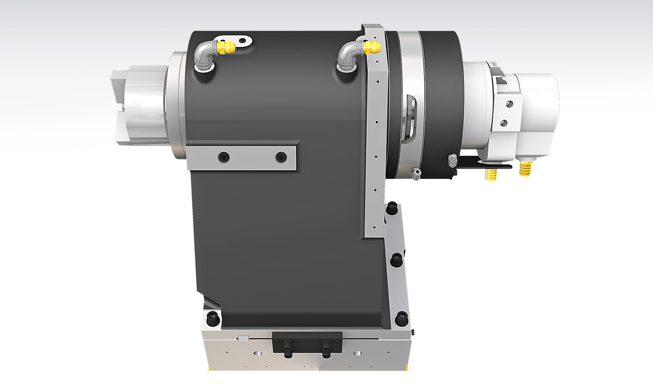

- Integrated processing through synchronized control of Main/Sub spindle (‘S’ Type)

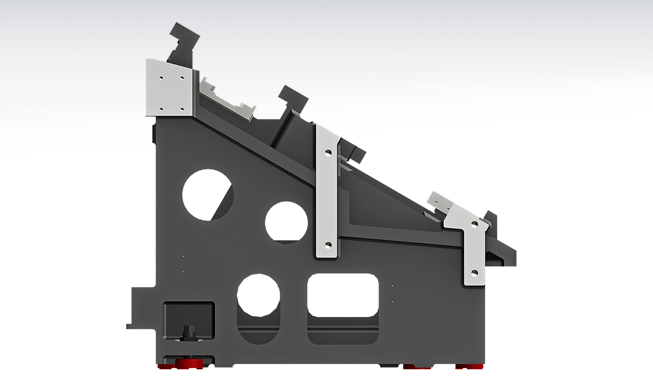

- High performance heavy duty cutting enabled with box guideways

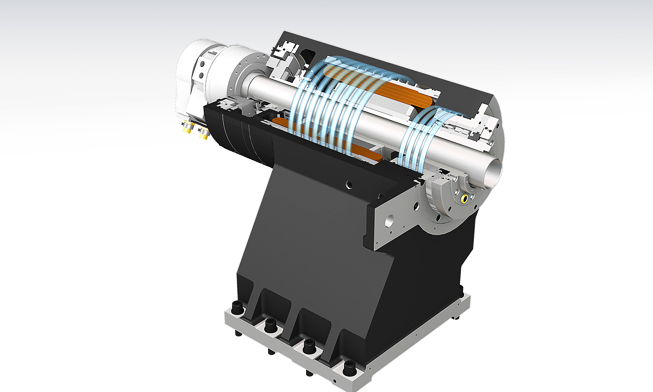

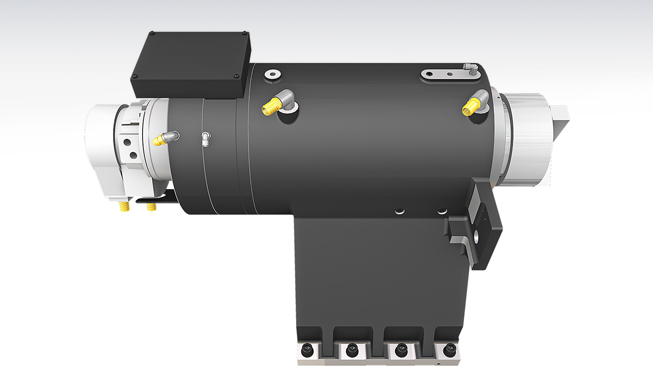

- Main/Sub Built-in Spindle application for high precision machining
Specifications
| Specification | L2000Y | L2000LY | L2000SY | L2000LSY |
|---|---|---|---|---|
| Max. Turning Dia. | 420 mm | 420 mm | 420 mm | 420 mm |
| Max. Turning Length | 520 mm | 760 mm | 520 mm | 760 mm |
| Spindle Bore | 76 mm | 76 mm | 76 mm | 76 mm |
| Spindle Speed | 5000 RPM | 5000 RPM | 5000 RPM | 5000 RPM |
| Motor (Max/Cont.) | 22/11 kW | 22/11 kW | 22/11 kW | 22/11 kW |
| Spindle Type | Built-in | Built-in | Built-in | Built-in |
| No. of Tools | 12 pcs | 12 pcs | 12 pcs | 12 pcs |
| Machine Size | 3220x1890x1950 mm | 3600x1890x1950 mm | 3220x1890x1950 mm | 3600x1890x1950 mm |
| Weight | 5500 kg | 6000 kg | 5800 kg | 6300 kg |
