KIT Series

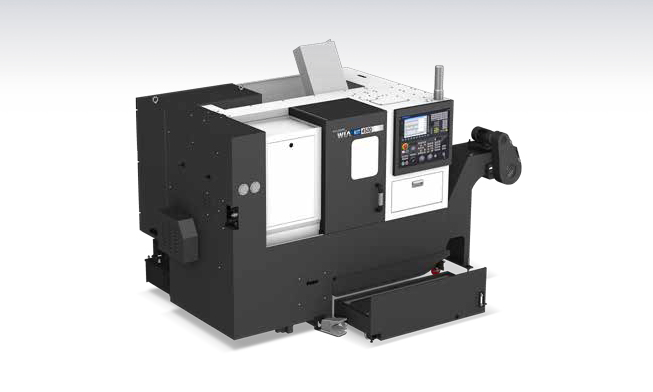

The Gang Type CNC Turning Center KIT Series, designed by Hyundai WIA with years of expertise and the latest technology, is a gang tool CNC Turning Center which maximizes productivity through high speed and high performance mechanisms.
Features

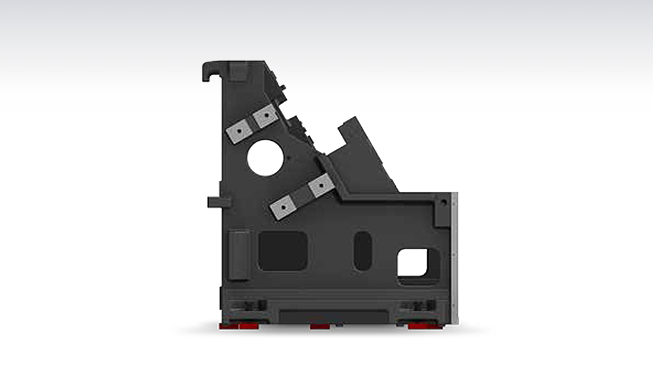

- One-piece bed structure with high rigidity
- Stabilized unit structure to minimize thermal displacement

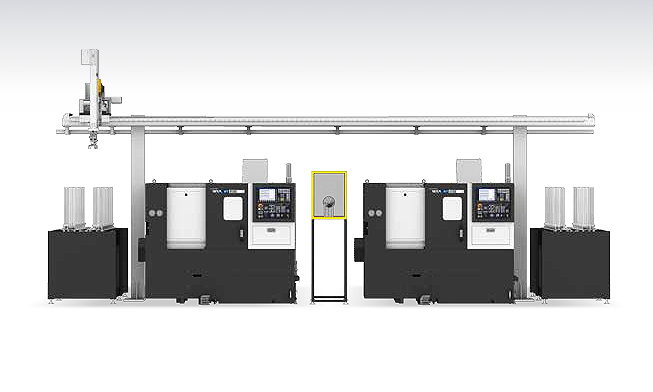

- Optimal design for automation
- Compact design suitable for installation in restricted space
Specifications
| Specification | KIT250 | KIT4500 | KIT60G |
|---|---|---|---|
| Max. Turning Dia. | 135 mm | 165 mm | 254 mm |
| Max. Turning Length | 150 mm | 300 mm | 530 mm |
| Spindle Bore | 42 mm | 61 mm | 66.2 mm |
| Spindle Speed | 7000 RPM | 6000 RPM | 4000 RPM |
| Motor (Max/Cont.) | 5.5/3.7 kW | 15/11 kW | 15/11 kW |
| Spindle Type | Belt | 3V Belt | Belt |
| No. of Tools | 4 pcs | 6 pcs | 6 pcs |
| Machine Size | 1690x1640x1670 mm | 2170x1470x1984 mm | 2900x1650x1870 mm |
| Weight | 1900 kg | 2800 kg | 4300 kg |
