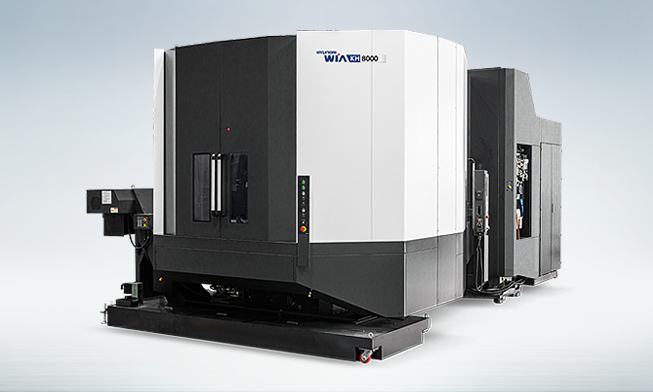

KH6300/8000
Resulting from years of experience, Hyundai WIA's KH6300/8000 features a 2-step geared spindle, rigid construction and spacious work area. This powerful horizontal machining center delivers accurate machining and maximum productivity.
Features
- Stable travel capabilities through the application of a large box guide for all axis

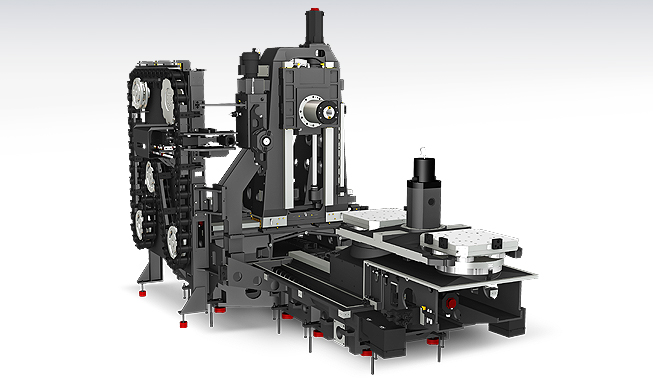

- Improved rigidity against the thrust force generated from the Z-axis with step-type bed design

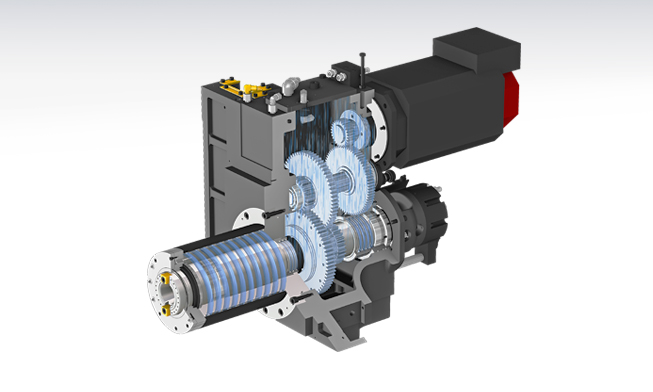

- 2-step geared spindles for powerful cutting

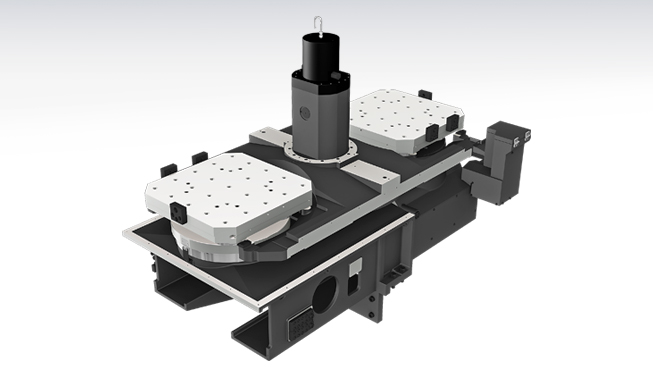

- Rotary turn APC for high-speed pallet change

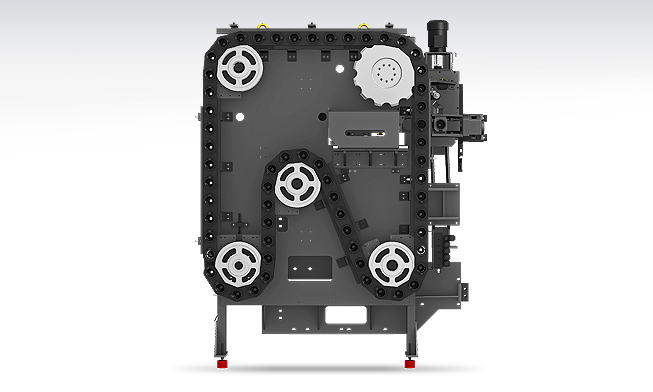

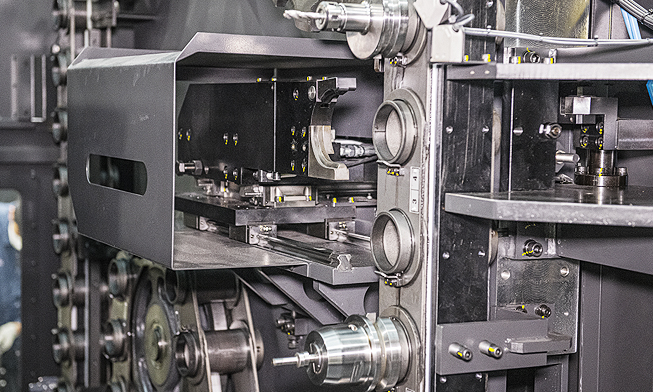

- Application of the largest tool in its class

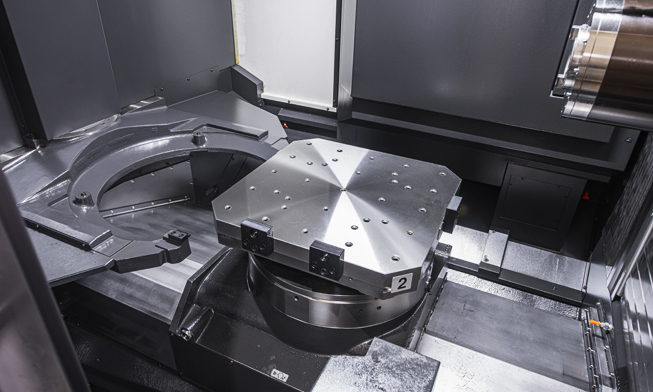

- Significant increase in the size of the workpiece compared to the previous models

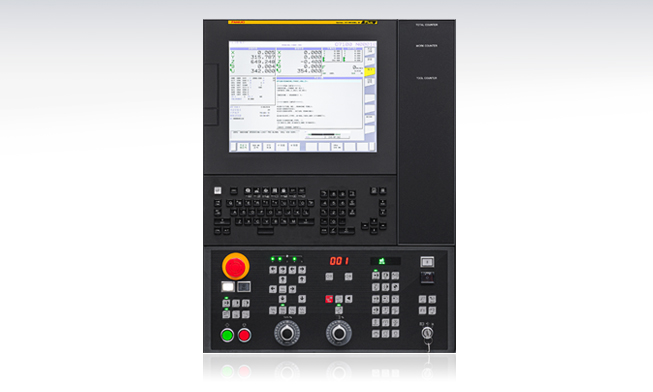

- Adopted the latest controller of FANUC
Specifications
| Specification | KH6300 | KH8000 |
|---|---|---|
| Pallet Size (LxW) | 630x630 mm | 800x800 mm |
| Max. Load Capacity | 1200 kg | 2000 kg |
| Spindle Taper | BIG PLUS#50 | BIG PLUS#50 |
| Spindle Speed | 6000 RPM | 6000 RPM |
| Motor (Max/Cont.) | 45/22 kW | 45/22 kW |
| X-axis Travel | 1050 mm | 1400 mm |
| Y-axis Travel | 850 mm | 1050 mm |
| Z-axis Travel | 1000 mm | 1200 mm |
| No. of Tools | 60 pcs | 60 pcs |
| Machine Size | 3705x5839x3286 mm | 4348x6724x3590 mm |
| Weight | 20500 kg | 27000 kg |
