KH50G

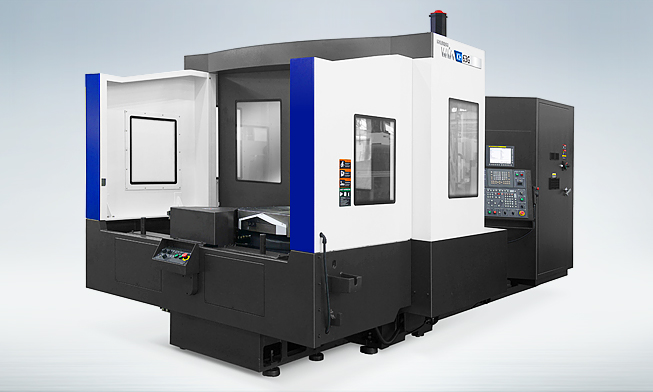

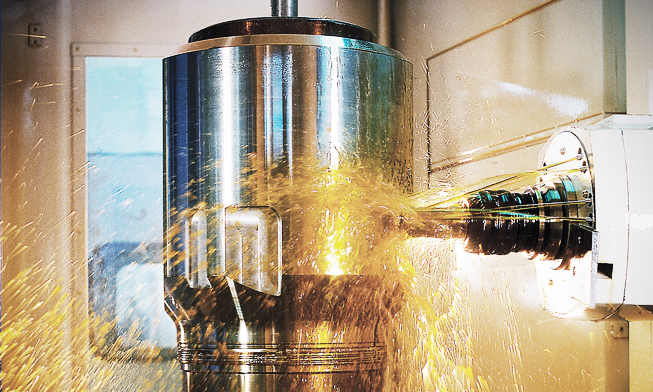

Horizontal Machining Center KH50G, designed by Hyundai WIA with years of expertise and the latest technology, features a 2-step geared spindle for highly rigid and accurate machining to maximize productivity.
Features

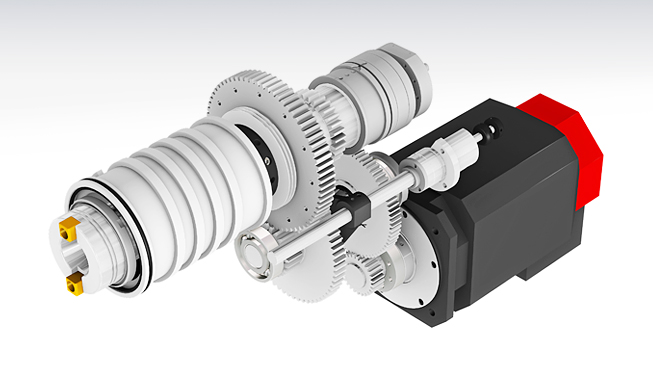

- 2-step gear on main spindle for heavy-duty cutting

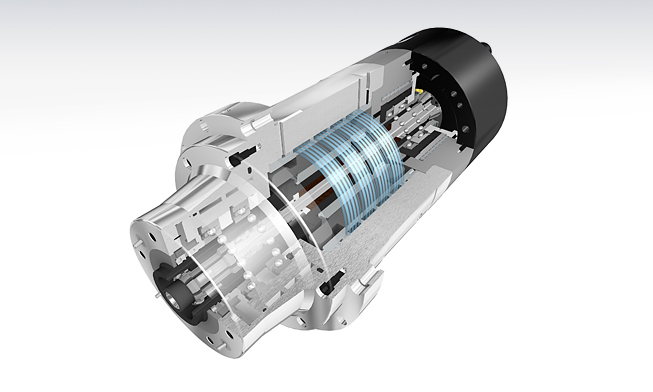

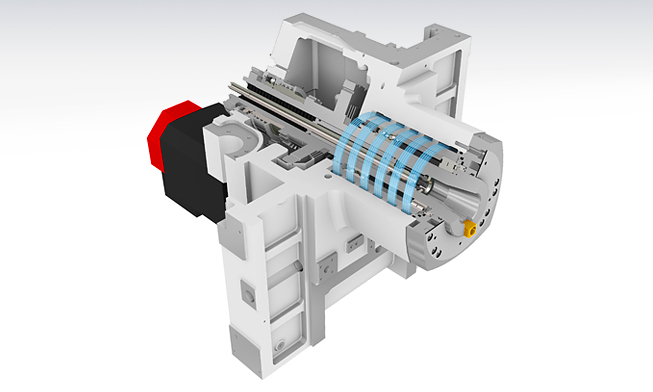

- Standard oil cooling system for high precision

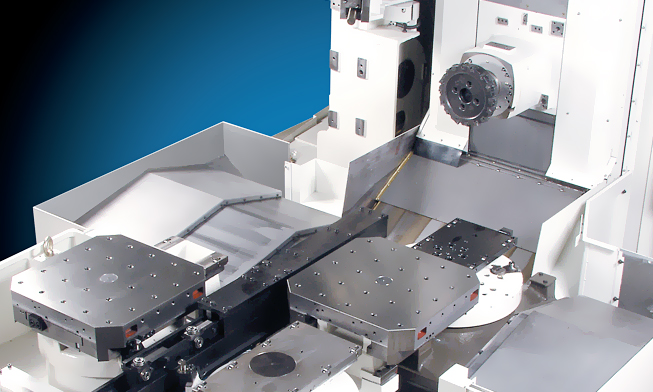

- Shuttle type automatic pallet changer (APC)
- Box guideways on all axes for ultra rigidity
- Air semi-rising slideway on Z-axis

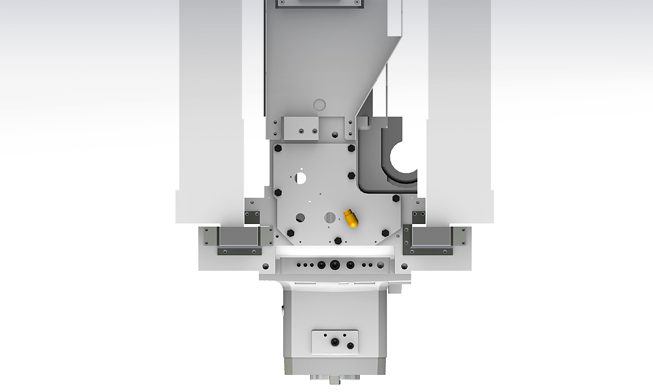

- 8-face contact Y-axis guideway
- Specially designed columns to minimize thermal displacement

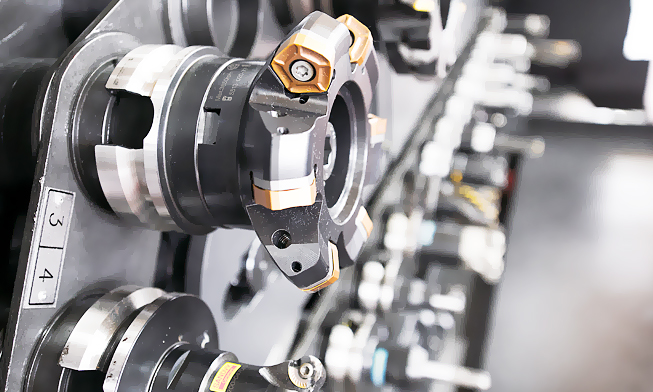

- Tool magazine capacity of up to 120 tools (optional)
Specifications
| Specification | KH50G |
|---|---|
| Pallet Size (LxW) | 500x500 mm |
| Max. Load Capacity | 800 kg |
| Spindle Taper | BT50 |
| Spindle Speed | 4500 RPM |
| Motor (Max/Cont.) | 18.5/15 kW |
| X-axis Travel | 760 mm |
| Y-axis Travel | 705 mm |
| Z-axis Travel | 650 mm |
| No. of Tools | 40 pcs |
| Machine Size | 3530x4815x3076 mm |
| Weight | 12000 kg |
