KH1000

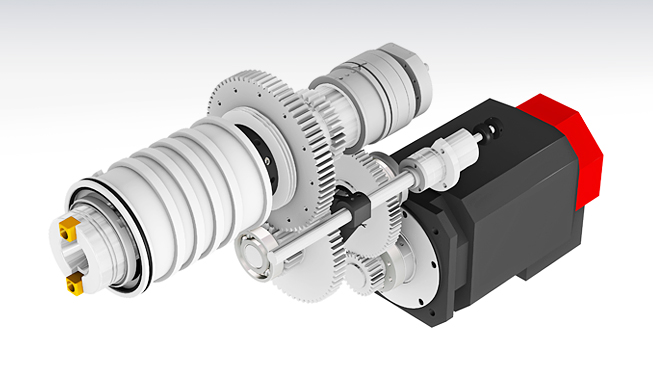

Resulting from years of experience, Hyundai WIA's KH1000 features a 2-step geared spindle, rigid construction and spacious work area. This powerful horizontal machining center delivers accurate machining and maximum productivity.
Features
- Best in class max. work size of Ø1,900mm (Ø74.8″) & 1,500mm (59.1″) height
- High torque spindles of 8,000rpm and 4,500rpm

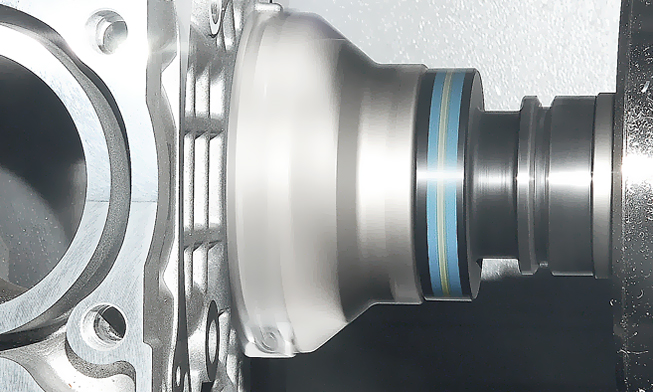

- BBT50 dual contact spindle for high rigidity
- Spindle oil cooling device for high accuracy
- Shuttle type APC
- Box guideways on all axes for ultra-rigidity

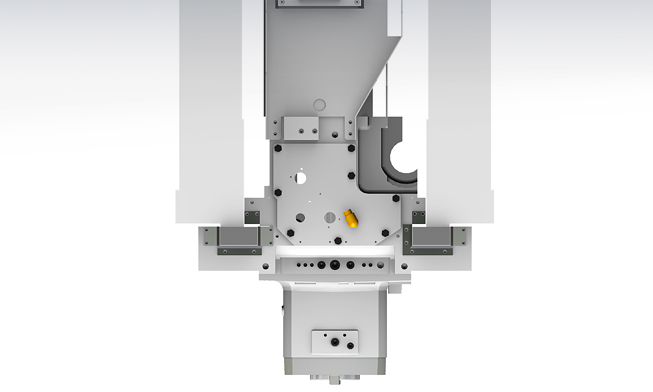

- 8-face contact Y-axis guideway
- Specially designed column that minimizes thermal displacement
Specifications
| Specification | KH1000 |
|---|---|

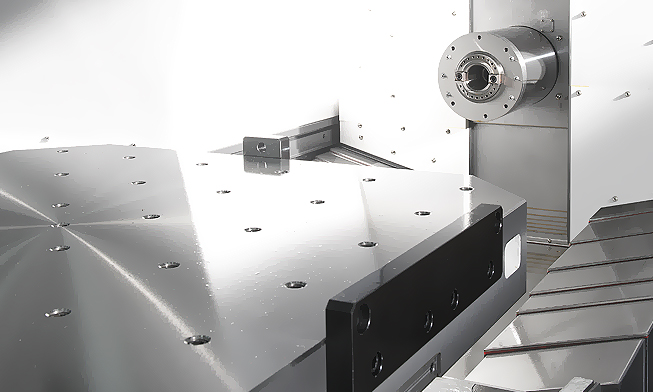

| Pallet Size (LxW) | 1000x1000 mm |
| Max. Load Capacity | 3000 kg |
| Spindle Taper | BBT50 |
| Spindle Speed | 8000 RPM |
| Motor (Max/Cont.) | 26/22 kW |
| X-axis Travel | 2100 mm |
| Y-axis Travel | 1350 mm |
| Z-axis Travel | 1400 mm |

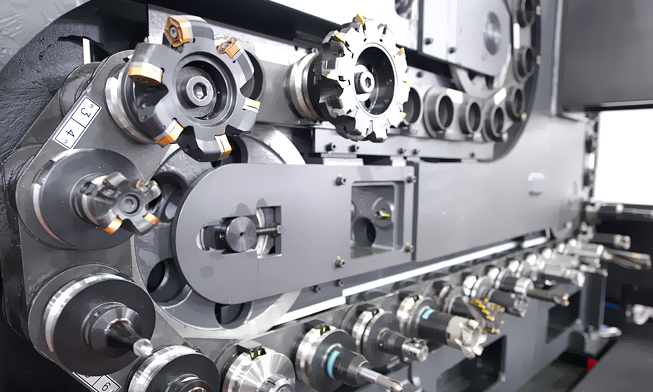

| No. of Tools | 60 pcs |
| Machine Size | 5095x8775x3989 mm |
| Weight | 30000 kg |
