KF7600L
KF7600L, developed by applying the accumulated know-how and the latest technology of Hyundai WIA, is a next-generation machine tool optimized for processing products with long material lengths through the application of a large and wide table.
Features

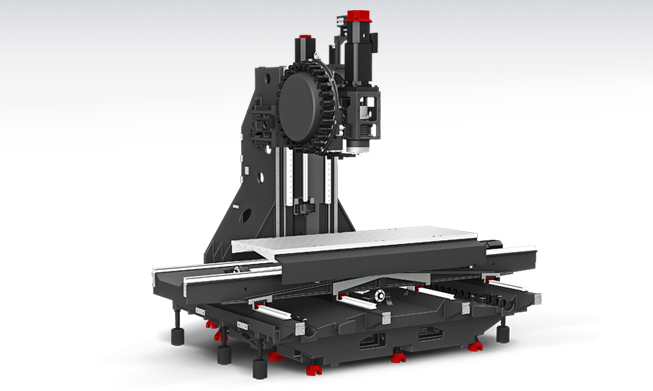

- Wide structure of 2,100mm (82.7″) X-axis
- Large table application for machining long parts
- 4 guideways for Y-axis to enhance feed
- High speed/High rigidity roller guide in all axes
- Securing rigidity by applying 3-row ball screw support bearings

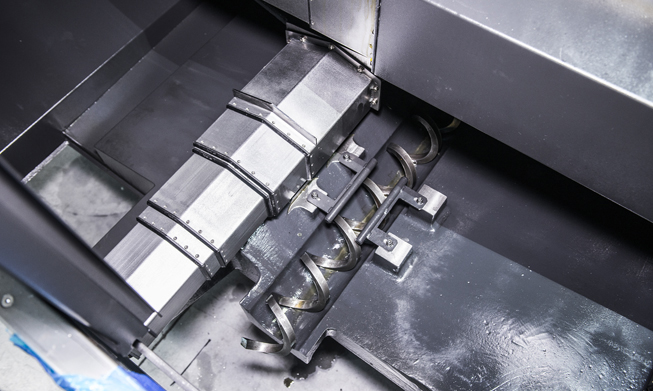

- 2-way interior screw chip conveyor (Standard)
Specifications
| Specification | KF7600L |
|---|---|
| Table Size (LxW) | 2250x760 mm |
| Max. Load Capacity | 1800 kg |
| Spindle Taper | BBT40 |
| Spindle Speed | 8000 RPM |
| Motor (Max/Cont.) | 18.5/15 kW |
| X-axis Travel | 2100 mm |
| Y-axis Travel | 760 mm |
| Z-axis Travel | 635 mm |
| No. of Tools | 30 pcs |
| Machine Size | 4900x2819x3266.4 mm |
| Weight | 13000 kg |
