KF5700B II Series
Best-in-class heavy duty cutting capability, state-of-the-art Vertical Machining Center. The Vertical Machining Center KF-B II Series, designed by Hyundai WIA with years of expertise and the latest technology, maximizes productivity while maintaining rigidity and accuracy.
Features

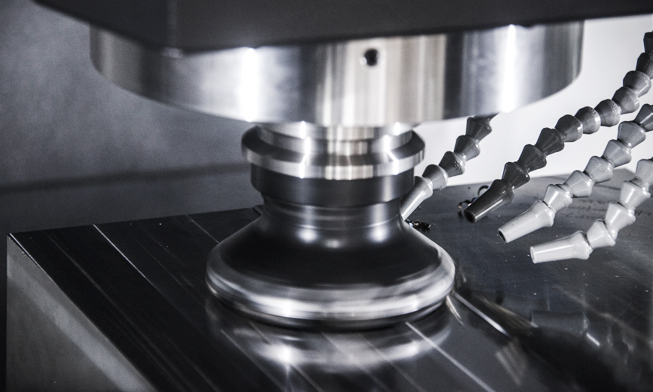

- High power/torque main spindle for superb heavy duty cutting
- Box guideways for exceptional traveling during heavy duty cutting
- Enhanced chip processing capabilities by applying the upper-type conveyor
- Various motors and columns provided for customized machining
- Improved user convenience by applying the latest controller of FANUC
Specifications
| Specification | KF5700B II | KF5700B/50 II |
|---|---|---|
| Table Size (LxW) | 1300x570 mm | 1300x570 mm |
| Max. Load Capacity | 1000 kg | 1000 kg |
| Spindle Taper | NT40 | NT50 |
| Spindle Speed | 8000 RPM | 8000 RPM |
| Motor (Max/Cont.) | 15/11 kW | 15/11 kW |
| X-axis Travel | 1100 mm | 1100 mm |
| Y-axis Travel | 570 mm | 570 mm |
| Z-axis Travel | 520 mm | 520 mm |
| No. of Tools | 30 pcs | 24 pcs |
| Machine Size | 2974x2510x3225 mm | 2974x2510x3275 mm |
| Weight | 7800 kg | 7800 kg |
