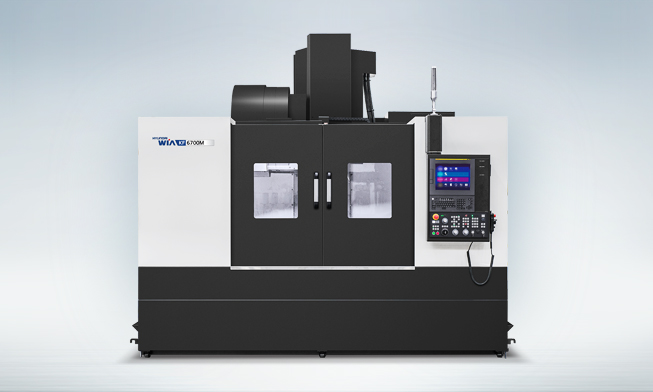

KF5600M/6700M
The Vertical Machining Center KF5600M/6700M, designed by Hyundai WIA with years of expertise and the latest technology, provides the high performance necessary for machining high quality molds.
Features
- Built-in main spindle for processing high quality mold products
- High-speed roller type LM guide in all axis
- Enhanced chip processing capabilities by applying the upper-type conveyor
- Hyundai WIA mold package for optimal mold product machining
- Improved user convenience by applying the latest controller of FANUC
Specifications
| Specification | KF5600M | KF6700M |
|---|---|---|
| Table Size (LxW) | 1250x560 mm | 1500x670 mm |
| Max. Load Capacity | 1000 kg | 1300 kg |
| Spindle Taper | BBT40 | BBT40 |
| Spindle Speed | 20000 RPM | 20000 RPM |
| Motor (Max/Cont.) | 22/18.5 kW | 22/18.5 kW |
| X-axis Travel | 1100 mm | 1300 mm |
| Y-axis Travel | 560 mm | 670 mm |
| Z-axis Travel | 520 mm | 635 mm |
| No. of Tools | 30 pcs | 30 pcs |
| Machine Size | 2830x2176x3028 mm | 3338x2527x3196 mm |
| Weight | 6500 kg | 7600 kg |
