KF-D Series

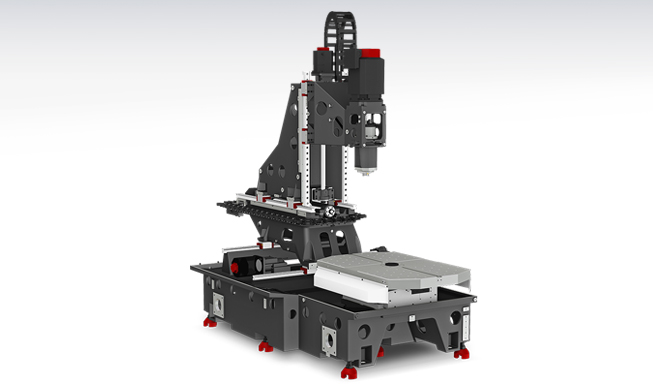

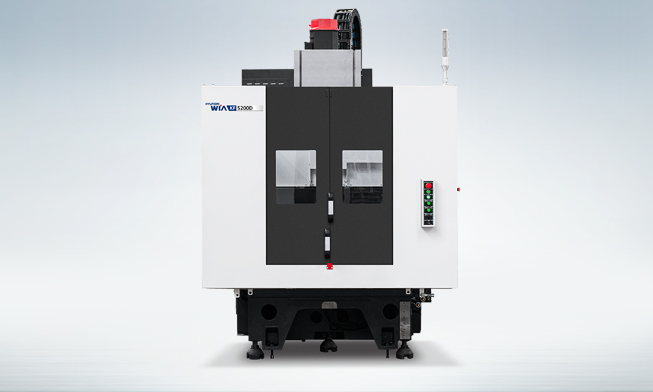

Column Moving Type Vertical Machining Center with high speed and large work space. The Vertical Machining Center KF-D Series, designed by Hyundai WIA with years of expertise and the latest technology, is a column moving type machining center equipped with Dual Table to maximize productivity.
Features

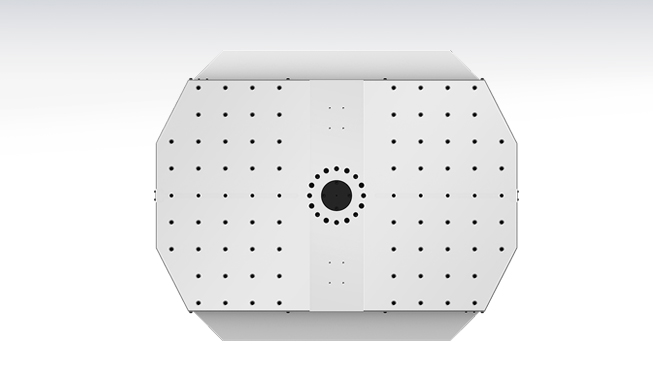

- Dual Tables for enhanced productivity

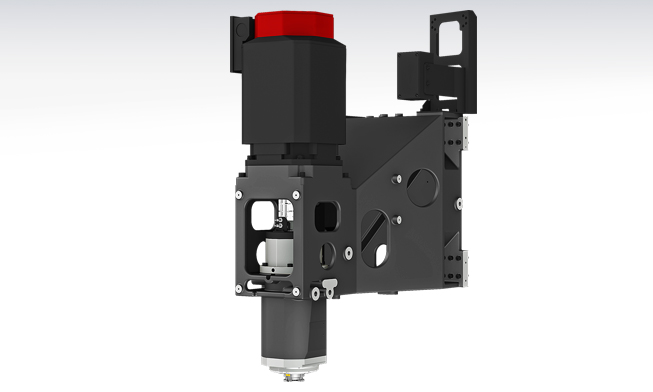

- High-precision machining by improved spindle quality (Max. 15,000 rpm direct spindle)
- High-speed roller type LM guide in all axis (Rapid Traverse Rate: 42 m/min)

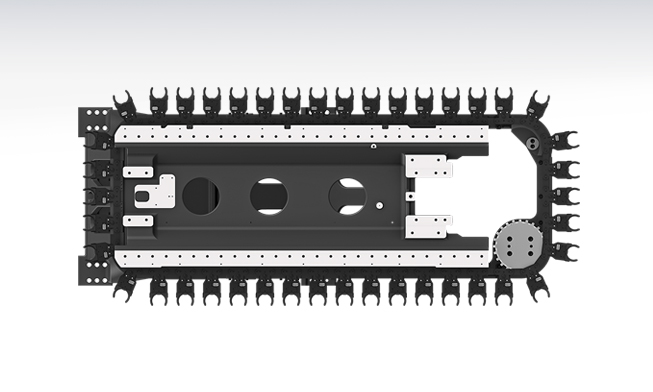

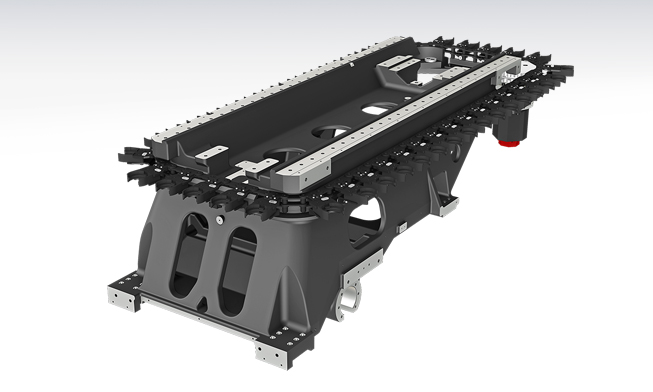

- 42 Tool pickup type magazine application that does not require automatic tool loading device (KF6000D: 45 Tool)
- Improved user convenience by applying the latest controller of FANUC
Specifications
| Specification | KF4300D | KF5200D | KF6000D |
|---|---|---|---|
| Table Size (LxW) | 660x480 mm | 860x570 mm | 950x650 mm |
| Max. Load Capacity | 300 kg | 350 kg | 500 kg |
| Spindle Taper | BBT40 | BBT40 | BBT40 |
| Spindle Speed | 8000 RPM | 8000 RPM | 8000 RPM |
| Motor (Max/Cont.) | 18.5/15 kW | 18.5/15 kW | 18.5/15 kW |
| X-axis Travel | 560 mm | 760 mm | 830 mm |
| Y-axis Travel | 430 mm | 520 mm | 600 mm |
| Z-axis Travel | 570 mm | 570 mm | 635 mm |
| No. of Tools | 42 pcs | 42 pcs | 45 pcs |
| Machine Size | 1796x4200x3096 mm | 1900x4290x3096 mm | 2000x4398x3176 mm |
| Weight | 7000 kg | 8400 kg | 9100 kg |
