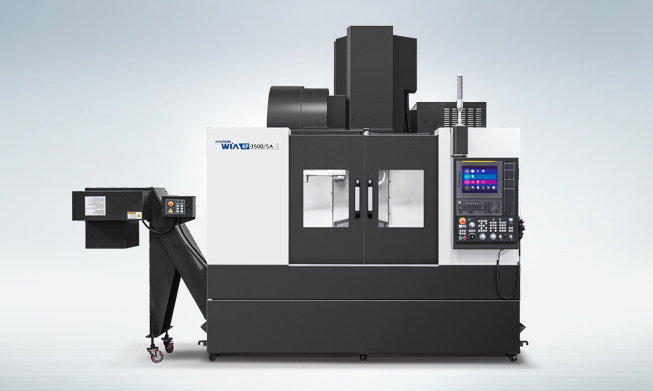

KF-5A Series
The Vertical Machining Center KF-5A Series, designed by Hyundai WIA with years of expertise and the latest technology, ensures performance requirements of the mold industry. In addition, KF-5A Series can process products of various shapes with 5-axis table design.
Features
- 5-axis table to satisfy various machining needs
- Column moving structure for automation system (KF6500/5A, KF7300/5A)
- High speed built-in spindle for the utmost quality machining (Option)
- All axis roller type LM guide for high speed & rigidity
- Improved user convenience by applying the latest controller of FANUC
Specifications
| Specification | KF3500/5A | KF6500/5A | KF7300/5A |
|---|---|---|---|
| Table Size (Diameter) | 350 mm | 630 mm | 630 mm |
| Max. Load Capacity | 250 kg | 400 kg | 500 kg |
| Spindle Taper | BBT40 | BBT40 | BBT40 |
| Spindle Speed | 12000 RPM | 12000 RPM | 12000 RPM |
| Motor (Max/Cont.) | 18.5/11 kW | 18.5/11 kW | 22/18.5 kW |
| X-axis Travel | 400 mm | 650 mm | 765 mm |
| Y-axis Travel | 655 mm | 520 mm | 650 mm |
| Z-axis Travel | 500 mm | 480 mm | 520 mm |
| No. of Tools | 30 pcs | 30 pcs | 40 pcs |
| Machine Size | 2845x2274x3020 mm | 2235x2740x2927 mm | 3050x3300x3174 mm |
| Weight | 8000 kg | 8000 kg | 11500 kg |
