i-CUT400TD
The tapping center i-CUT Series, designed by Hyundai WIA with years of expertise and the latest technology, maximizes productivity while maintaining rigidity and accuracy.
Features

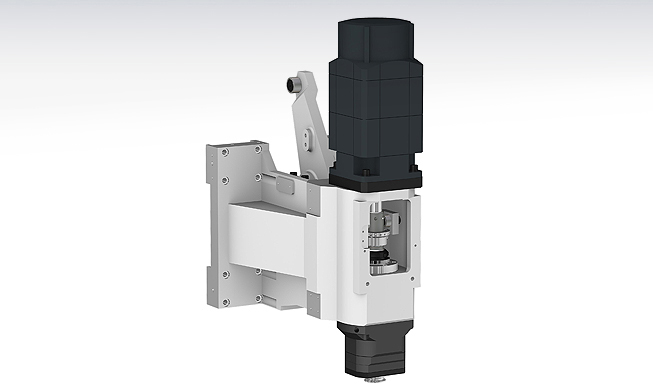

- Max. 24,000rpm direct connection high-speed main spindle application (i-CUT4000/4500)
- High performance double seal type LM guide applied (i-CUT4000/4500)
- Shortens non-cutting time with rapid feed (56m/min.)

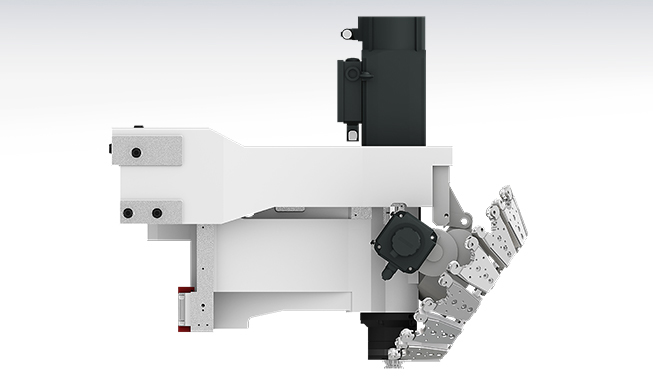

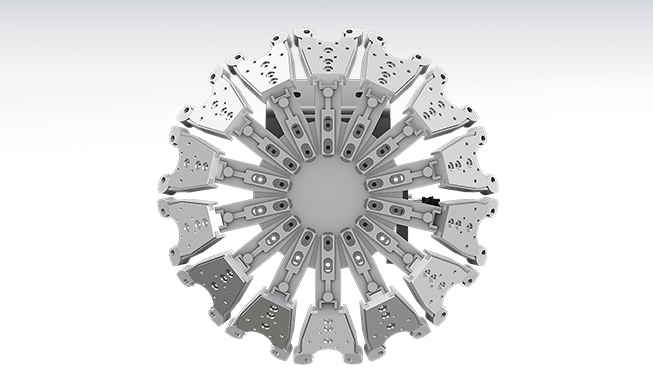

- Servo motor is applied on the ATC to reduce tool change time

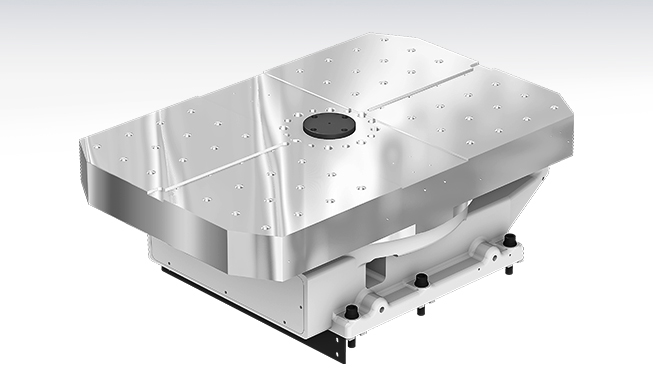

- Shortens setting time for materials with a dual table system (i-CUT400TD)
- Twin arm type ATC for automation system (Option)
Specifications
| Specification | i-CUT400TD |
|---|---|
| Table Size (LxW) | 650x400 mm |
| Max. Load Capacity | 250 kg |
| Spindle Taper | BBT30 |
| Spindle Speed | 12000 RPM |
| Motor (Max/Cont.) | 13/3.7 kW |
| X-axis Travel | 520 mm |
| Y-axis Travel | 400 mm |
| Z-axis Travel | 330 mm |
| No. of Tools | 14 pcs |
| Machine Size | 1720x2861x2446 mm |
| Weight | 4800 kg |
