HS6300/8000 II

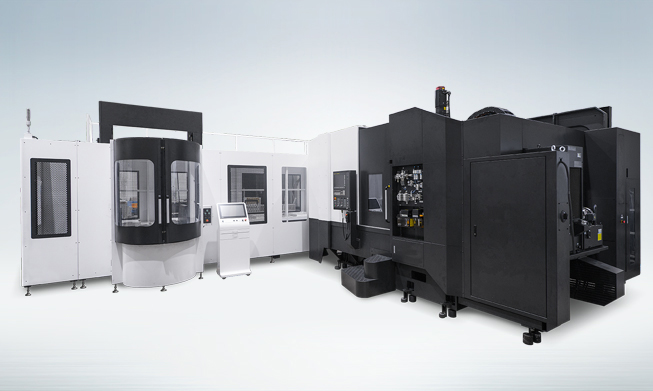

Horizontal Machining Center HS6300/8000 II, designed by Hyundai WIA with years of expertise and the latest technology, provides high speed, high performance and maximum productivity.
Features
- High Rigidity Box-type Structure
- A symmetrical structure design with the center of gravity of Z-axis and transfer axis matching
- Easy chip disposal with direct chip discharging structure
- Best-in-class rapid traverse rate of 60m/min (2,362ipm)
- Machining of the largest workpiece in its class
- ATC design capable of attaching the largest tools in its class
Specifications
| Specification | HS6300 II | HS8000 II |
|---|---|---|
| Pallet Size (LxW) | 630x630 mm | 800x800 mm |
| Max. Load Capacity | 1500 kg | 2000 kg |
| Spindle Taper | BBT50 | BBT50 |
| Spindle Speed | 10000 RPM | 10000 RPM |
| Motor (Max/Cont.) | 45/25 kW | 45/25 kW |
| X-axis Travel | 1050 mm | 1400 mm |
| Y-axis Travel | 900 mm | 1200 mm |
| Z-axis Travel | 1000 mm | 1370 mm |
| No. of Tools | 40 pcs | 40 pcs |
| Machine Size | 3722x5839x3601 mm | 4379x6850x3817 mm |
| Weight | 19000 kg | 27000 kg |
