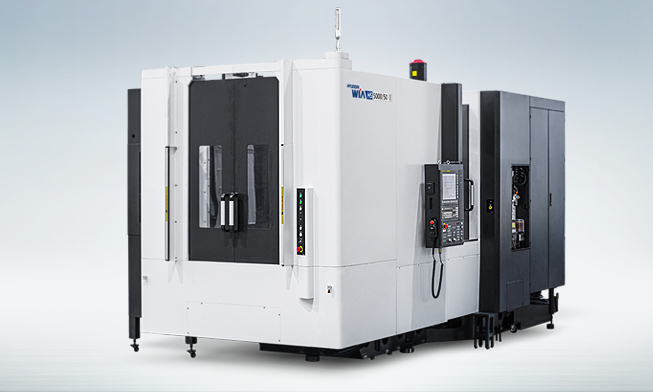

HS4000/5000 II
The HS-II Series offers a high-speed feed system, high-speed spindle, and high-speed ATC and APC to reduce non-cutting time and ensure world-class productivity.
.jpg)
Features

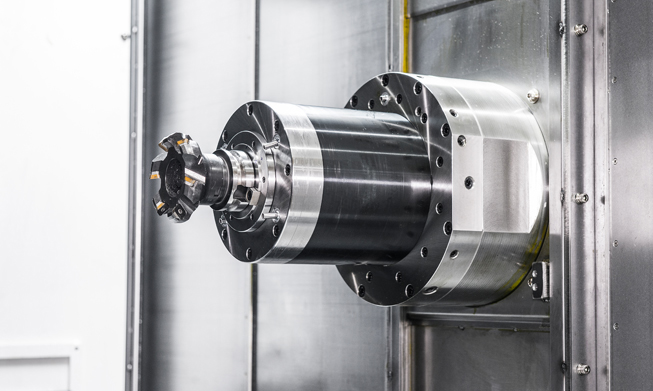

- 15,000rpm high-performance built-in spindle
- X/Y/Z axis rapid traverse rate: 60 m/min
- Ball screw shaft cooling system applied

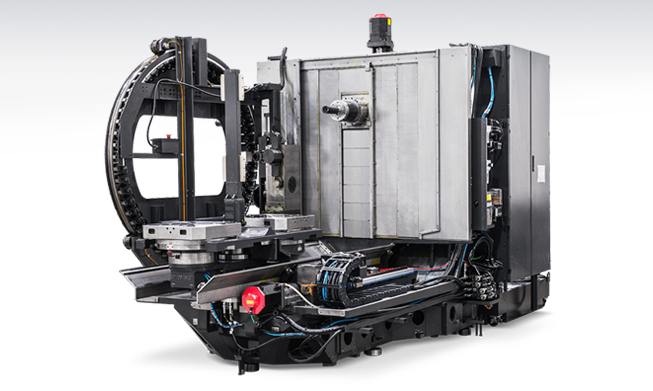

- High rigidity 3-point support bed structure
- Large diameter Ø50 mm (2″) ball screw applied

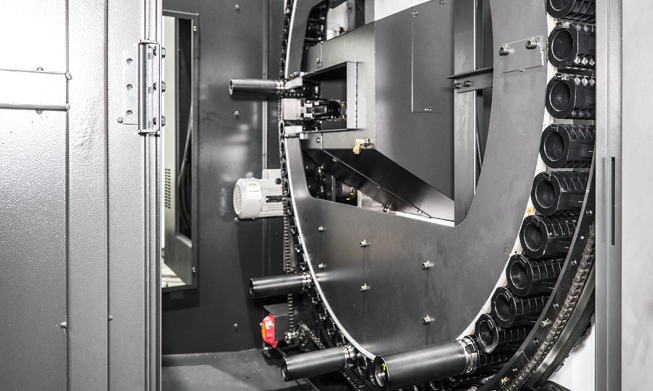

- Ring-type magazine as standard
- 60-tool magazine, max tool call time: 2.9 sec
- Best-in-class tool change time (c-c): 2.6 sec
Specifications
| Specification | HS4000 II | HS5000 II | HS5000/50 II |
|---|---|---|---|
| Pallet Size (LxW) | 400x400 mm | 500x500 mm | 500x500 mm |
| Max. Load Capacity | 400 kg | 500 kg | 1000 kg |
| Spindle Taper | BBT40 | BBT40 | BBT50 |
| Spindle Speed | 15000 RPM | 15000 RPM | 10000 RPM |
| Motor (Max/Cont.) | 30/18.5 kW | 30/18.5 kW | 45/25 kW |
| X-axis Travel | 560 mm | 730 mm | 800 mm |
| Y-axis Travel | 640 mm | 730 mm | 800 mm |
| Z-axis Travel | 660 mm | 880 mm | 880 mm |
| No. of Tools | 40 pcs | 40 pcs | 40 pcs |
| Machine Size | 2475x3966x2621 mm | 2719x4402x2707 mm | 3061x4962x2974 mm |
| Weight | 9500 kg | 11500 kg | 16000 kg |
