HS10000
Horizontal Machining Center HS10000, designed by Hyundai WIA with years of expertise and the latest technology, provides high speed, high performance and maximum productivity.
Features

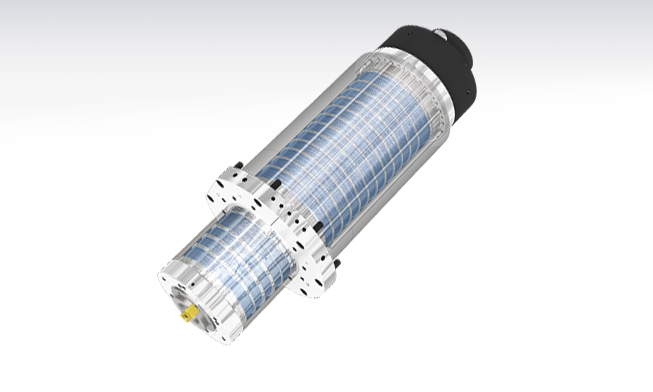

- High-performance 10,000rpm built-in spindle

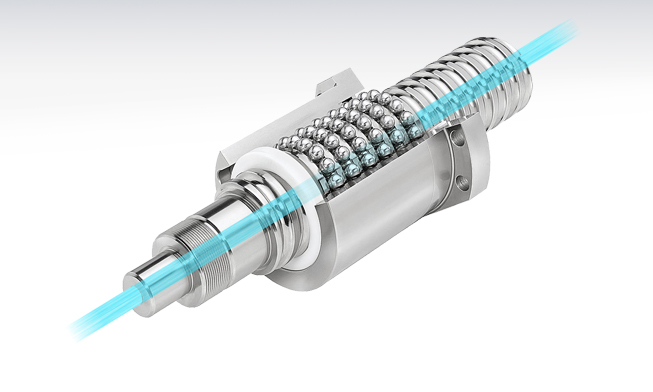

- All-axis shaft cooling type ball screw
- Application of the largest tool in its class

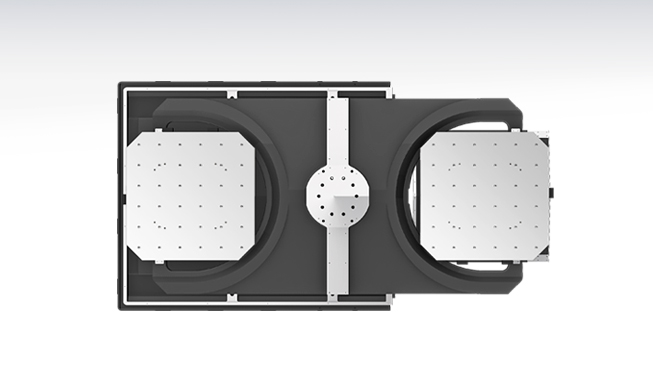

- Rotary turn APC for high speed pallet change
- Best-in-class rapid traverse rate of 50 m/min (1,969 ipm)
- Adopted the latest controller of FANUC 31i B Plus
Specifications
| Specification | HS10000 |
|---|---|
| Pallet Size (LxW) | 1000x1000 mm |
| Max. Load Capacity | 3000 kg |
| Spindle Taper | BBT50 |
| Spindle Speed | 10000 RPM |
| Motor (Max/Cont.) | 45/25 kW |
| X-axis Travel | 1700 mm |
| Y-axis Travel | 1400 mm |
| Z-axis Travel | 1550 mm |

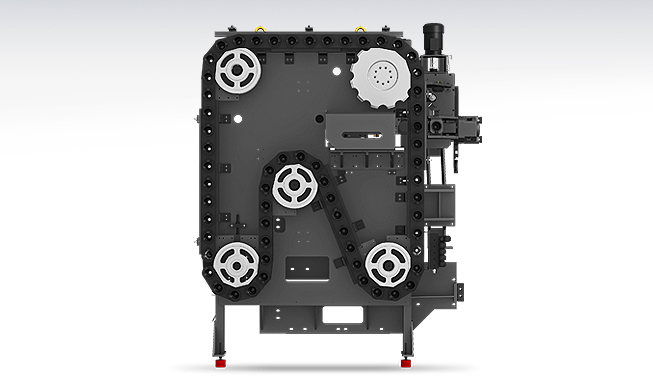

| No. of Tools | 60 pcs |
| Machine Size | 5520x8303x3998 mm |
| Weight | 34000 kg |
