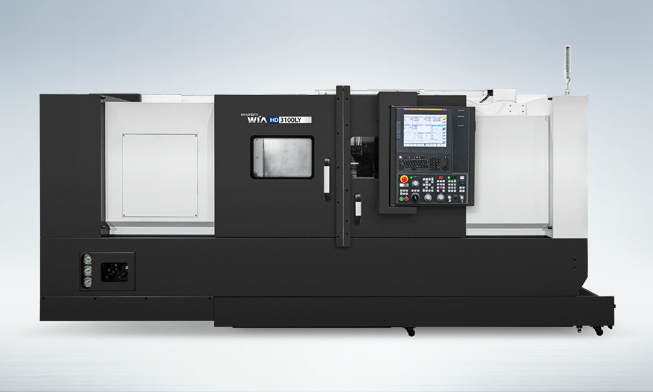

HD3100Y Series
The CNC Turning Center HD-SY Series, designed with HYUNDAI WIA's engineering expertise to maximize productivity by enhancing rigidity and accuracy of machining.
Features
- Box guideways for heavy duty cutting

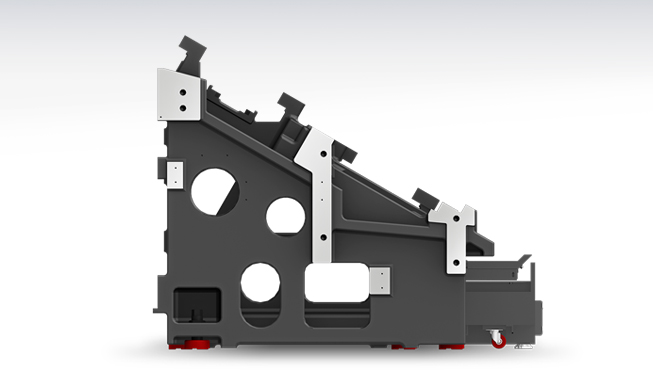

- 30° slanted one-piece bed structure for high rigidity

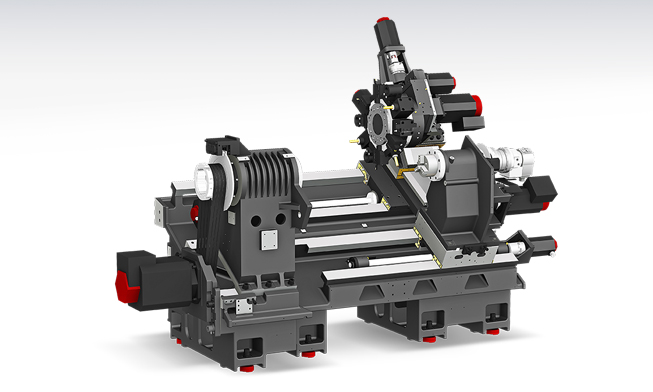

- Stabilized Unit Structure to minimize thermal displacement
- Integrated processing through synchronized control of Main/Sub spindle (‘SY’ Type)

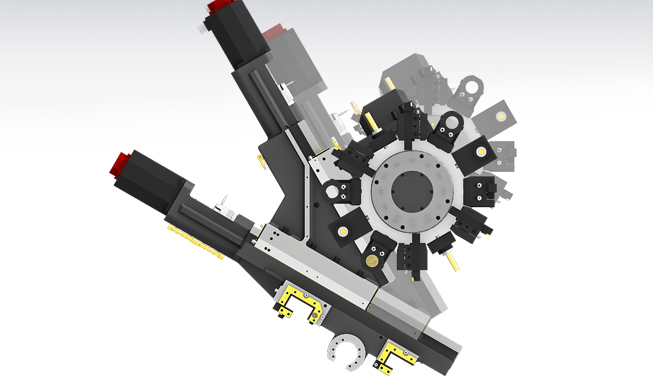

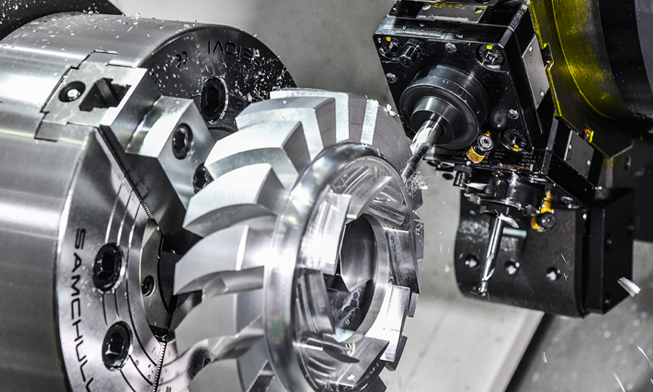

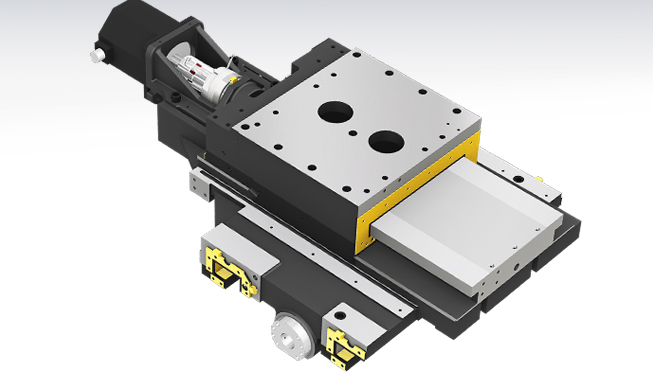

- Multi-tasking operation with wedge type Y-axis BMT turret
- Excellent rapid traverse rate: 30m/min [1,181ipm] (Z-axis)
- Ergonomic design for convenient access to chuck and tool
Specifications
| Specification | HD3100Y | HD3100SY | HD3100LY |
|---|---|---|---|
| Max. Turning Dia. | 420 mm | 420 mm | 420 mm |
| Max. Turning Length | 760 mm | 760 mm | 1280 mm |
| Spindle Bore | 115 mm | 115 mm | 115 mm |
| Spindle Speed | 2800 RPM | 2800 RPM | 2800 RPM |
| Motor (Max/Cont.) | 26/18.5 kW | 26/18.5 kW | 26/18.5 kW |
| Spindle Type | Belt | Belt | Belt |
| No. of Tools | 12 pcs | 12 pcs | 12 pcs |
| Machine Size | 3630x1910x1960 mm | 3630x1910x1960 mm | 4404x2085x2022 mm |
| Weight | 6300 kg | 6300 kg | 7400 kg |
