HD3100 Series
The CNC Turning Center HD2600/3100 Series, designed by Hyundai WIA with years of expertise and the latest technology, is a Turning Center that maximizes productivity and performance.
Features

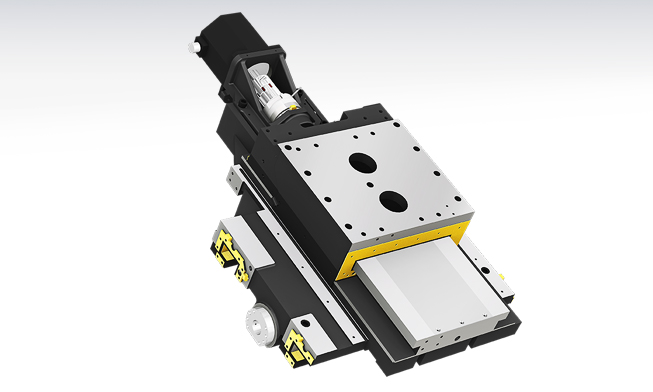

- Box guideways for heavy-duty cutting

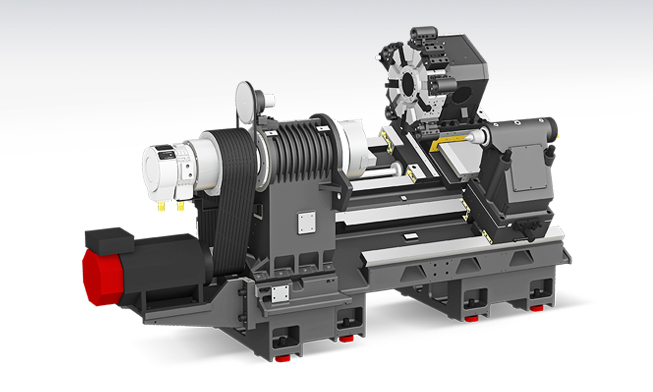

- Stabilized unit structure to minimize thermal displacement
- User convenient structure for high productivity
- Excellent rapid traverse rate: 30m/min [1,181ipm] (Z-axis)

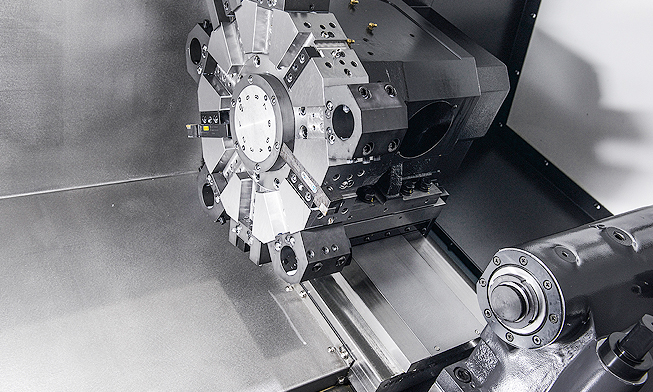

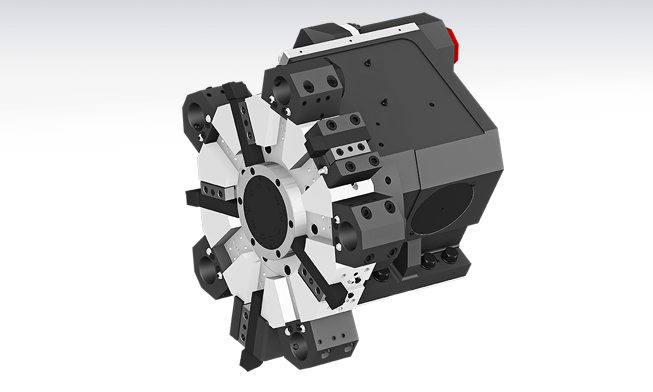

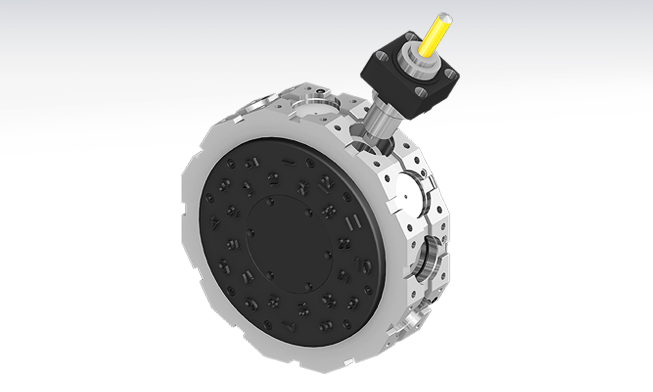

- High-rigidity and high-speed servo turret (Expanded disk width)
- Ergonomic design for convenient access to chuck and tool
Specifications
| Specification | HD3100 | HD3100L | HD3100M | HD3100LM |
|---|---|---|---|---|
| Max. Turning Dia. | 500 mm | 500 mm | 420 mm | 420 mm |
| Max. Turning Length | 780 mm | 1300 mm | 740 mm | 1260 mm |
| Spindle Bore | 115 mm | 115 mm | 115 mm | 115 mm |
| Spindle Speed | 2800 RPM | 2800 RPM | 2800 RPM | 2800 RPM |
| Motor (Max/Cont.) | 26/18.5 kW | 26/18.5 kW | 26/18.5 kW | 26/18.5 kW |
| Spindle Type | Belt | Belt | Belt | Belt |
| No. of Tools | 10 pcs | 10 pcs | 12 pcs | 12 pcs |
| Machine Size | 3885x1800x1850 mm | 4405x1978x1850 mm | 3885x1800x1850 mm | 4405x1978x1850 mm |
| Weight | 6000 kg | 7200 kg | 6050 kg | 7250 kg |
