HD2600 Series

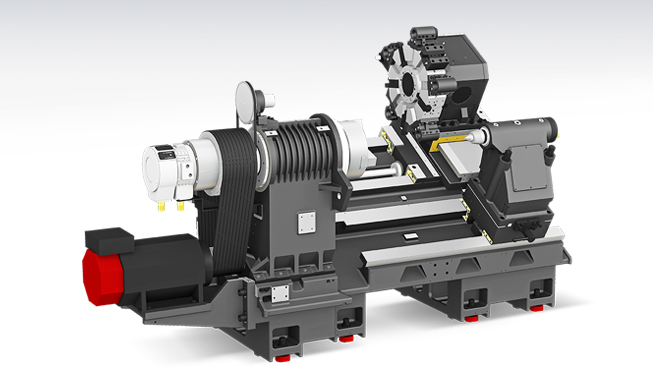

The CNC Turning Center HD2600/3100 Series, designed by Hyundai WIA with years of expertise and the latest technology, is a Turning Center that maximizes productivity and performance.
Features

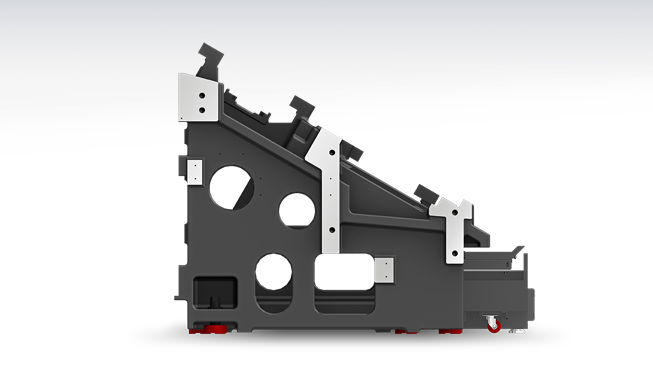

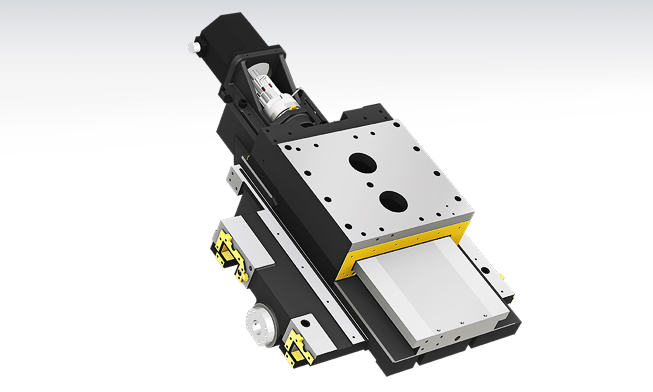

- Box guideways for heavy-duty cutting

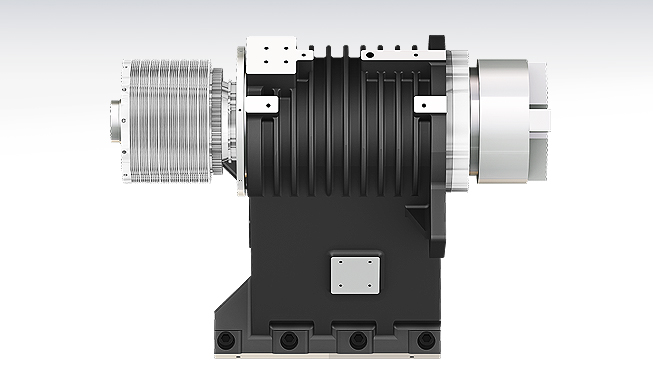

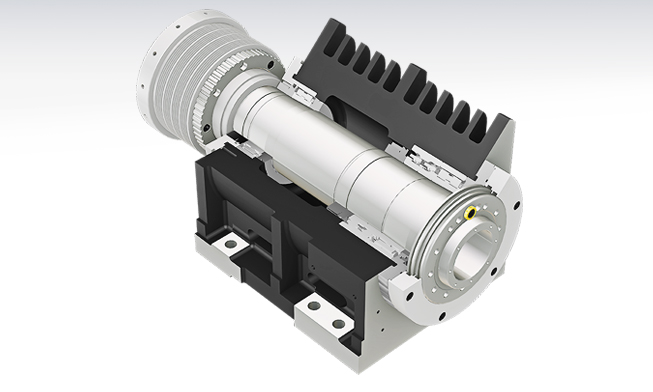

- Stabilized unit structure to minimize thermal displacement
- User convenient structure for high productivity
- Excellent rapid traverse rate: 30m/min [1,181ipm] (Z-axis)

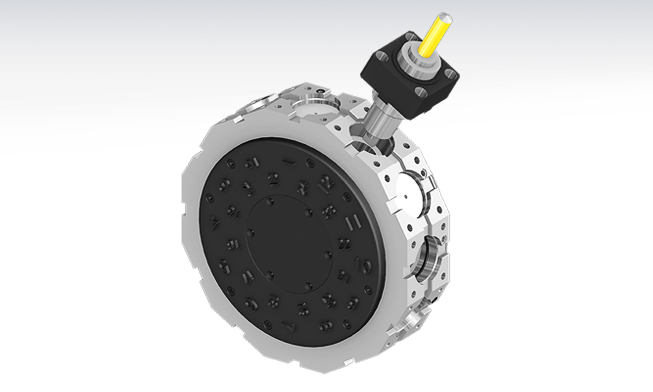

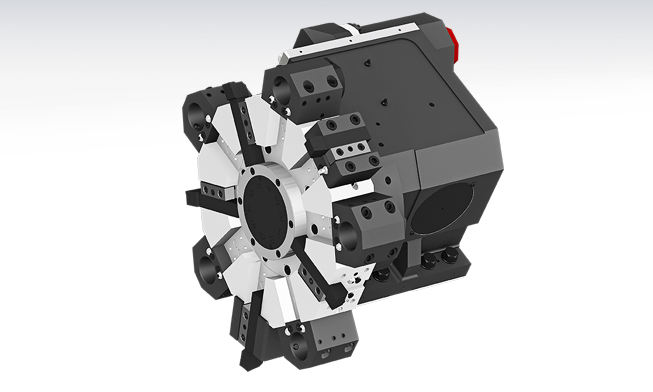

- High-rigidity and high-speed servo turret (Expanded disk width)
- Ergonomic design for convenient access to chuck and tool
Specifications
| Specification | HD2600 | HD2600M | HD2600L | HD2600LM |
|---|---|---|---|---|
| Max. Turning Dia. | 460 mm | 380 mm | 460 mm | 380 mm |
| Max. Turning Length | 659 mm | 613 mm | 1079 mm | 1033 mm |
| Spindle Bore | 91 mm | 91 mm | 91 mm | 91 mm |
| Spindle Speed | 3500 RPM | 3500 RPM | 3500 RPM | 3500 RPM |
| Motor (Max/Cont.) | 26/18.5 kW | 26/18.5 kW | 26/18.5 kW | 26/18.5 kW |
| Spindle Type | Belt | Belt | Belt | Belt |
| No. of Tools | 10 pcs | 12 pcs | 10 pcs | 12 pcs |
| Machine Size | 3400x1708x1755 mm | 3400x1708x1755 mm | 3893x1996x1755 mm | 3893x1996x1755 mm |
| Weight | 5800 kg | 5800 kg | 6750 kg | 6800 kg |
