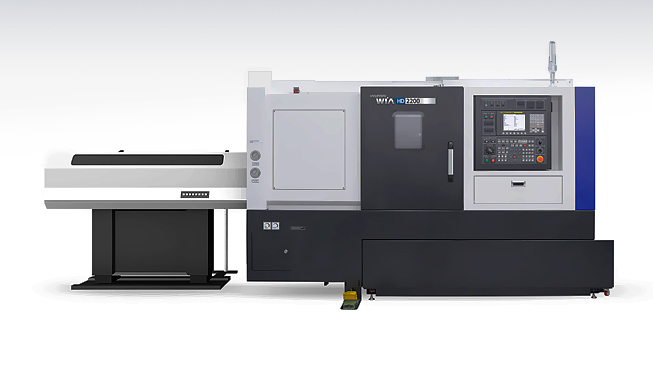

HD2200 Series
The CNC Turning Center HD2200 Series, designed by Hyundai WIA with years of expertise and the latest technology, is a Turning Center that maximizes productivity and performance.
Features

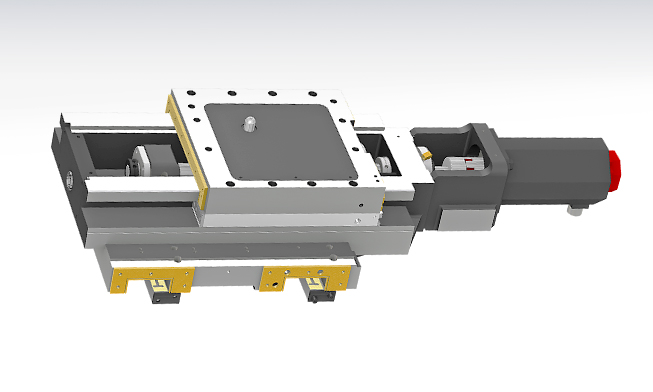

- Box guideways for heavy duty cutting

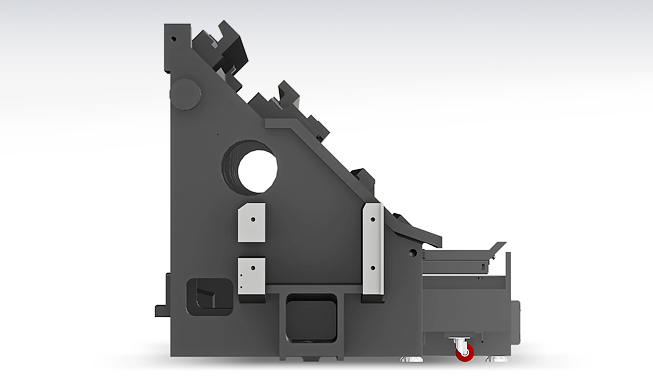

- 45° slanted one-piece bed structure for high rigidity
- Stabilized Unit Structure to minimize thermal displacement

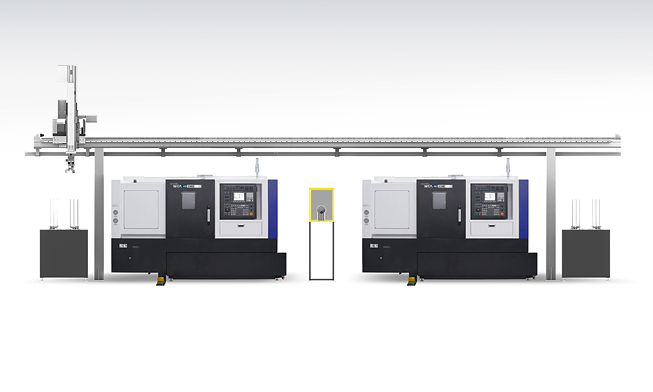

- User convenient structure for high productivity
- Excellent rapid traverse rate: 30m/min [1,181ipm] (Z-axis)

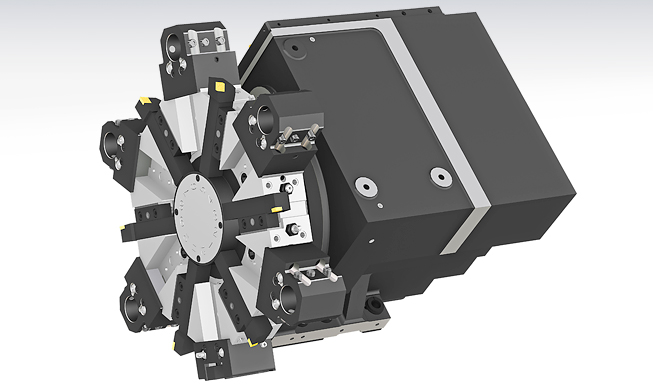

- Reliable, high speed servo turret: 0.12sec/step

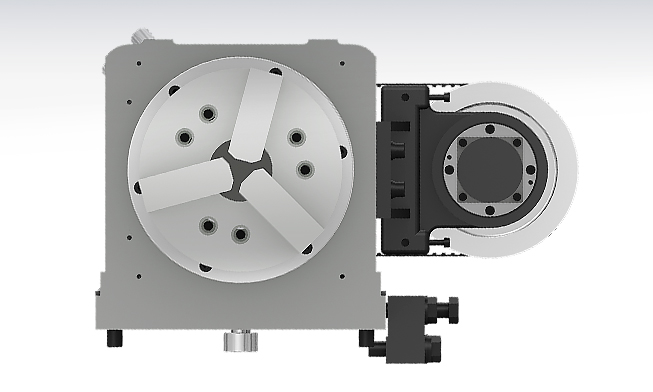

- Ergonomic design for convenient access to chuck and tool
Specifications
| Specification | HD2200 | HD2200C | HD2200M | HD2200MC |
|---|---|---|---|---|
| Max. Turning Dia. | 380 mm | 380 mm | 300 mm | 300 mm |
| Max. Turning Length | 565 mm | 550 mm | 467 mm | 452 mm |
| Spindle Bore | 76 mm | 92 mm | 76 mm | 92 mm |
| Spindle Speed | 4500 RPM | 3500 RPM | 4500 RPM | 3500 RPM |
| Motor (Max/Cont.) | 18.5/15 kW | 18.5/15 kW | 18.5/15 kW | 18.5/15 kW |
| Spindle Type | Belt | Belt | Belt | Belt |
| No. of Tools | 12 pcs | 12 pcs | 12 pcs | 12 pcs |
| Machine Size | 2925x1650x1820 mm | 3024x1650x1820 mm | 2925x1650x1820 mm | 3024x1650x1820 mm |
| Weight | 4100 kg | 4200 kg | 4200 kg | 4300 kg |
