F960B
The Vertical Machining Center F960B, designed by Hyundai WIA with years of expertise and the latest technology, is a heavy duty cutting machine with high precision and productivity.
Features

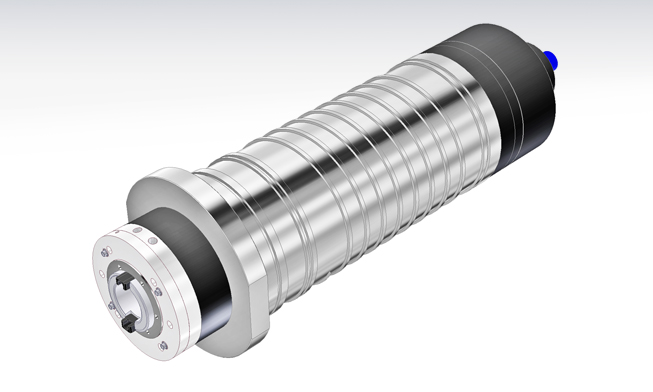

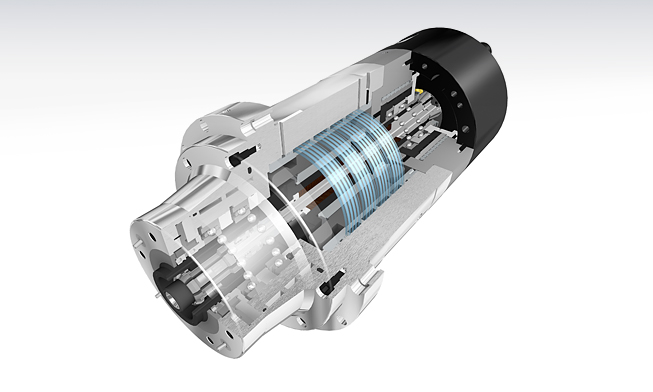

- Main spindle with ultra precision cylindrical roller bearings

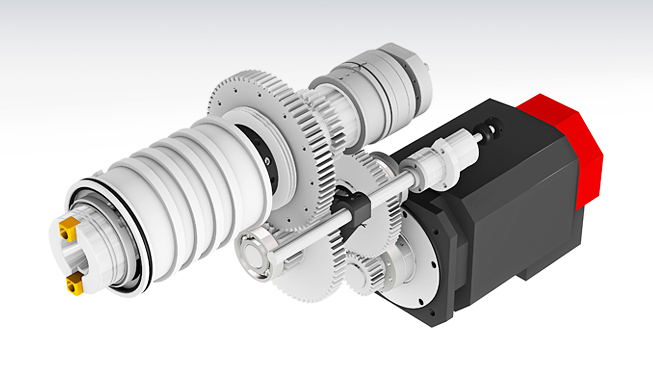

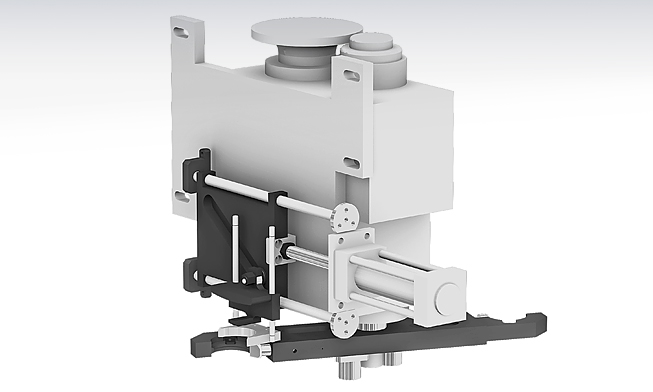

- Rigid geared spindle enables powerful, heavy duty cutting

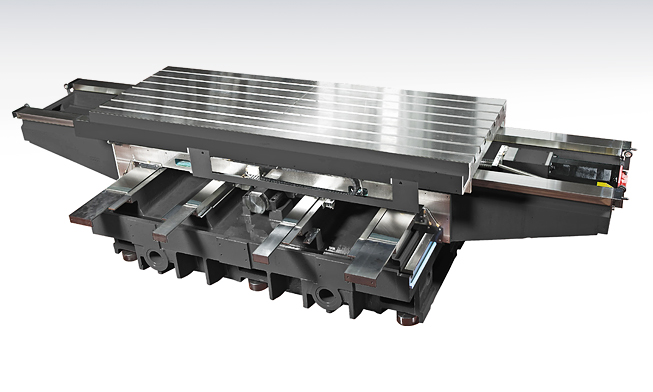

- Box guideways on all axis for superb heavy duty cutting
- 4 Guideways employ 10-face contact design
- Air Semi-Rising slideway to decrease feed load
Specifications
| Specification | F960B |
|---|---|
| Table Size (LxW) | 2700x950 mm |
| Max. Load Capacity | 4500 kg |
| Spindle Taper | BBT50 |
| Spindle Speed | 8000 RPM |
| Motor (Max/Cont.) | 22/18.5 kW |
| X-axis Travel | 2450 mm |
| Y-axis Travel | 960 mm |
| Z-axis Travel | 850 mm |

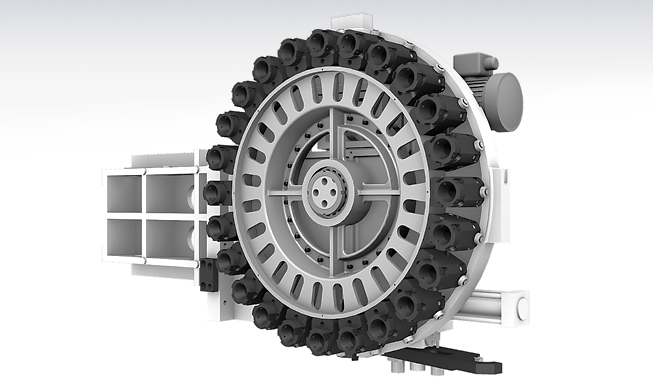

| No. of Tools | 20 pcs |
| Machine Size | 6100x4425x3647 mm |
| Weight | 23500 kg |
