E160C
The CNC Turning Center E160 Series, designed by WIA Machine Tools with years of expertise and the latest technology, maximizes productivity by enhancing both technical performance and economic efficiency.
Features

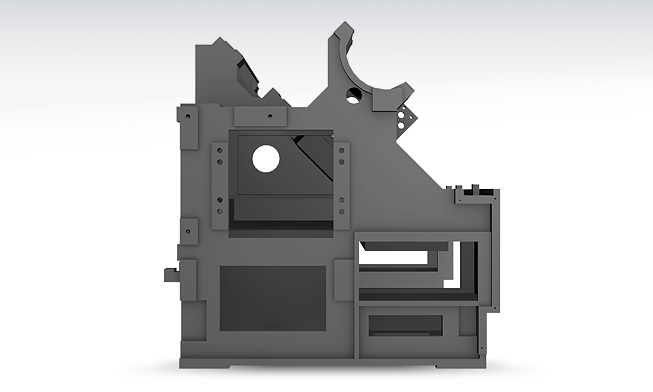

- 45° slanted one-piece high rigidity bed structure

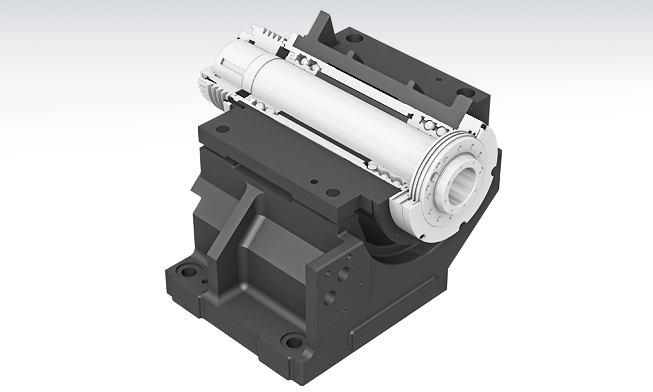

- Least heat distortion, the most stabilized unit structure

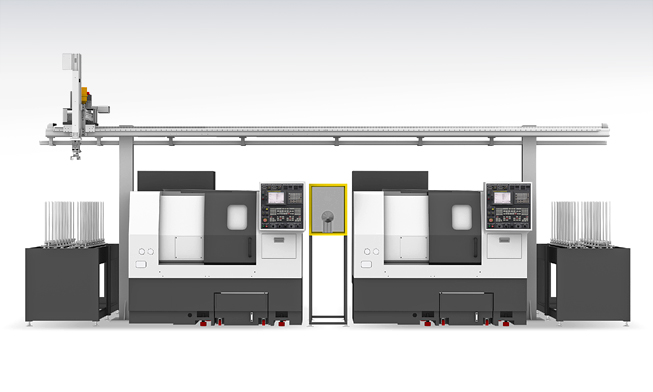

- Able to extend, and high productive machine structure
- Unbeatable rapid travel speed: 30m/min

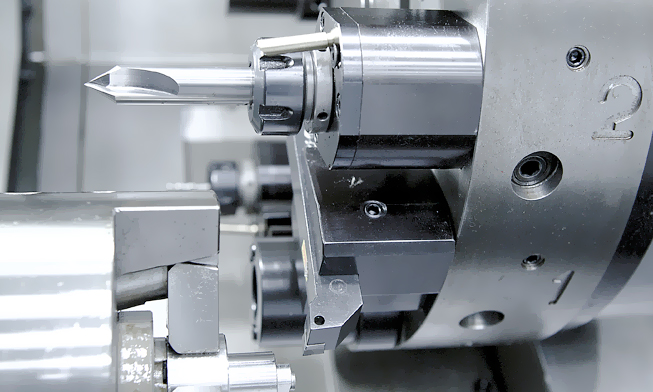

- The most reliable high speed servo turret is adopted: 0.1sec/step
- Environmental friendly, separate coolant and lubrication design
- Compact design, able to install within a narrow space.
- Ergonomic design allows convenient access to chuck and tool
Specifications
| Specification | E160C |
|---|---|
| Max. Turning Dia. | 280 mm |
| Max. Turning Length | 280 mm |
| Spindle Bore | 62 mm |
| Spindle Speed | 4000 RPM |
| Motor (Max/Cont.) | 11/7.5 kW |
| Spindle Type | Belt |
| No. of Tools | 10 pcs |
| Machine Size | 1940x1660x1602 mm |
| Weight | 2500 kg |
