E160A
The CNC Turning Center E160 Series, designed by WIA Machine Tools with years of expertise and the latest technology, maximizes productivity by enhancing both technical performance and economic efficiency.
Features

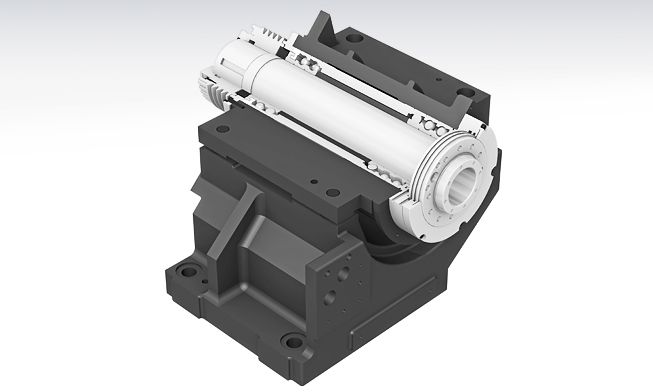

- 45° slanted one-piece rigid bed structure
- Minimal thermal distortion
- Machine structure designed to maximize productivity

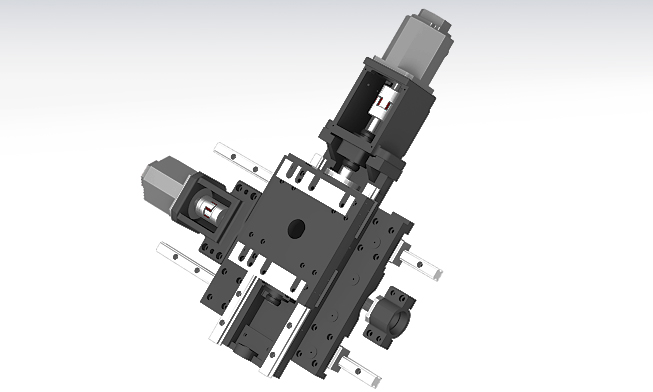

- Best in class rapid traverse rate : 30m/min

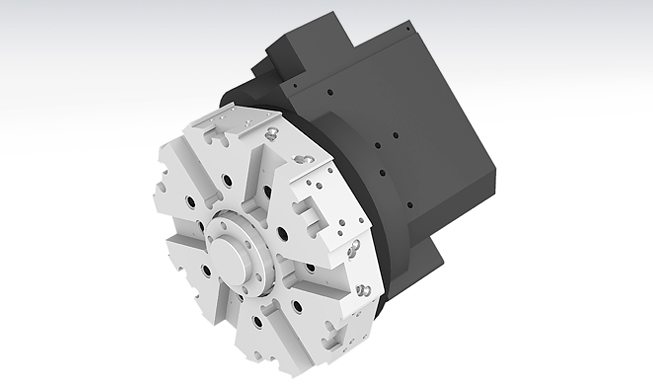

- The most reliable high speed servo turret : 0.1sec/step
- Environmental friendly, separate coolant and lubrication design
- Compact design, able to install within a limited space.
- Ergonomic design allows convenient access to chuck and tools
Specifications
| Specification | E160A |
|---|---|
| Max. Turning Dia. | 280 mm |
| Max. Turning Length | 300 mm |
| Spindle Bore | 55 mm |
| Spindle Speed | 6000 RPM |
| Motor (Max/Cont.) | 11/7.5 kW |

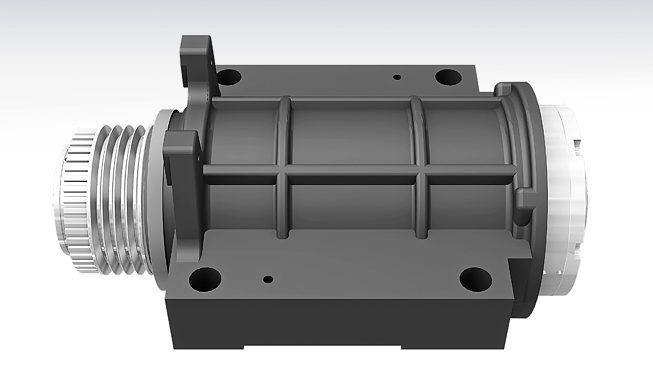

| Spindle Type | Belt |
| No. of Tools | 12 pcs |
| Machine Size | 1940x1660x1602 mm |
| Weight | 2400 kg |
